R
Z|
ScrewA
1/0
connecting
cable
(32cm,
3G2C7-CN311)
Expansion
I/O
unit

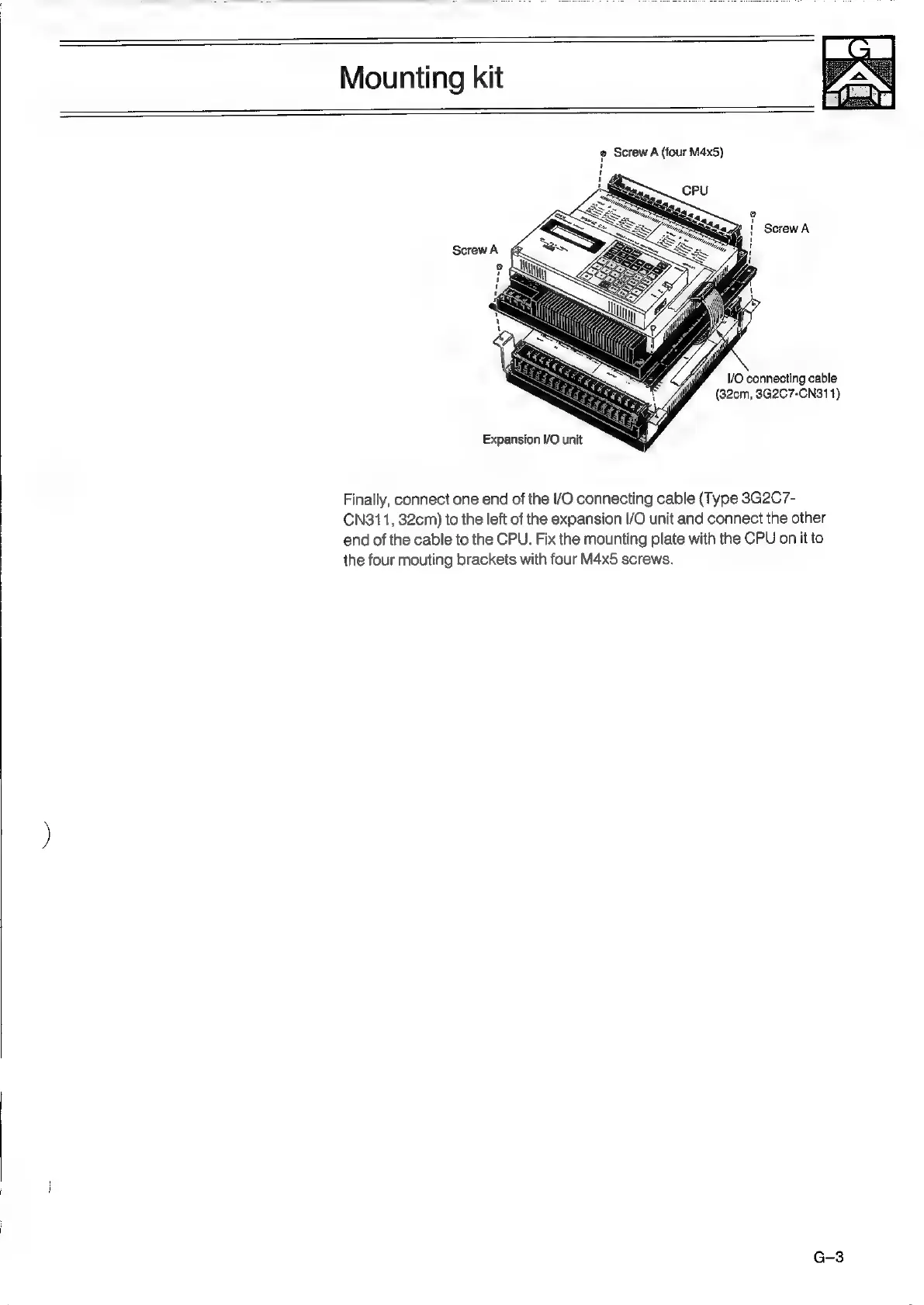

Finally,
connect
one
end
of
the
I/O
connecting
cable
(Type
3G2C7-
CN311,
32cm)
to
the
left
of
the
expansion
I/O
unit
and
connect
the
other
end
of
the
cable
to
the
CPU.
Fix
the
mounting
plate
with
the
CPU
on
it
to
the
four
mouting
brackets
with
four
M4x5
screws.
