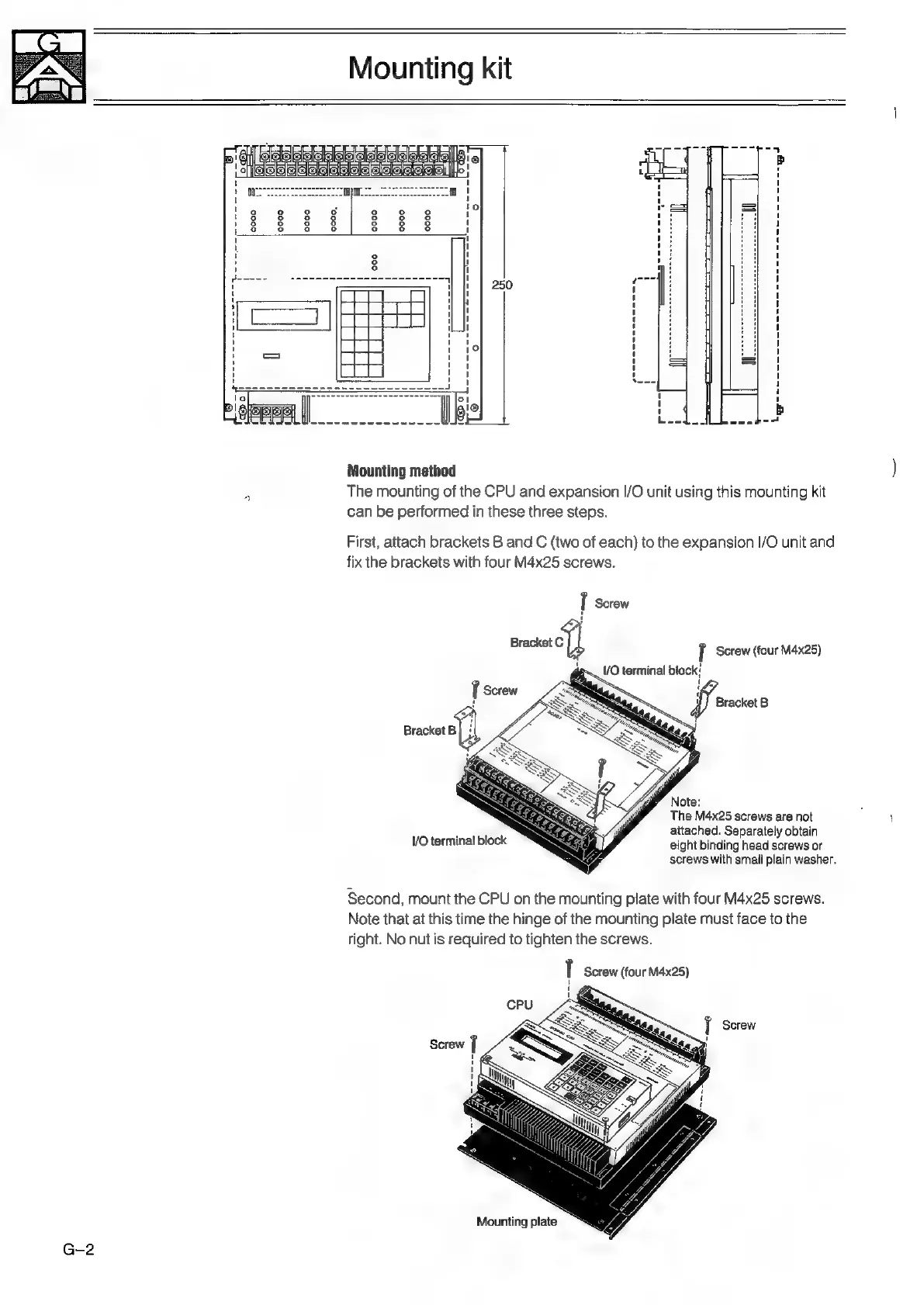

Mounting kit
gohossS-ssSesseanesseeeesa-- gt
1 i 1 L:
1 L
Mounting method
The mounting of the CPU and expansion I/O unit using this mounting kit
can be performed in these three steps.
First, attach brackets B and C (two of each) to the expansion I/O unit and
fix the brackets with four M4x25 screws.
j Screw
Bracket yi J Screw (four M4x25)
W/O terminal block!
f Bracket B
The M4x25 screws are not
attached. Separately obtain
eight binding head screws or
screws with smali plain washer.
Second, mount the CPU on the mounting plate with four M4x25 screws.
Note that at this time the hinge of the mounting plate must face to the
right. No nut is required to tighten the screws.
lj Screw (four M4x25)
i
| oe
Mounting plate
