Omron SYSMAC C Series User Manual

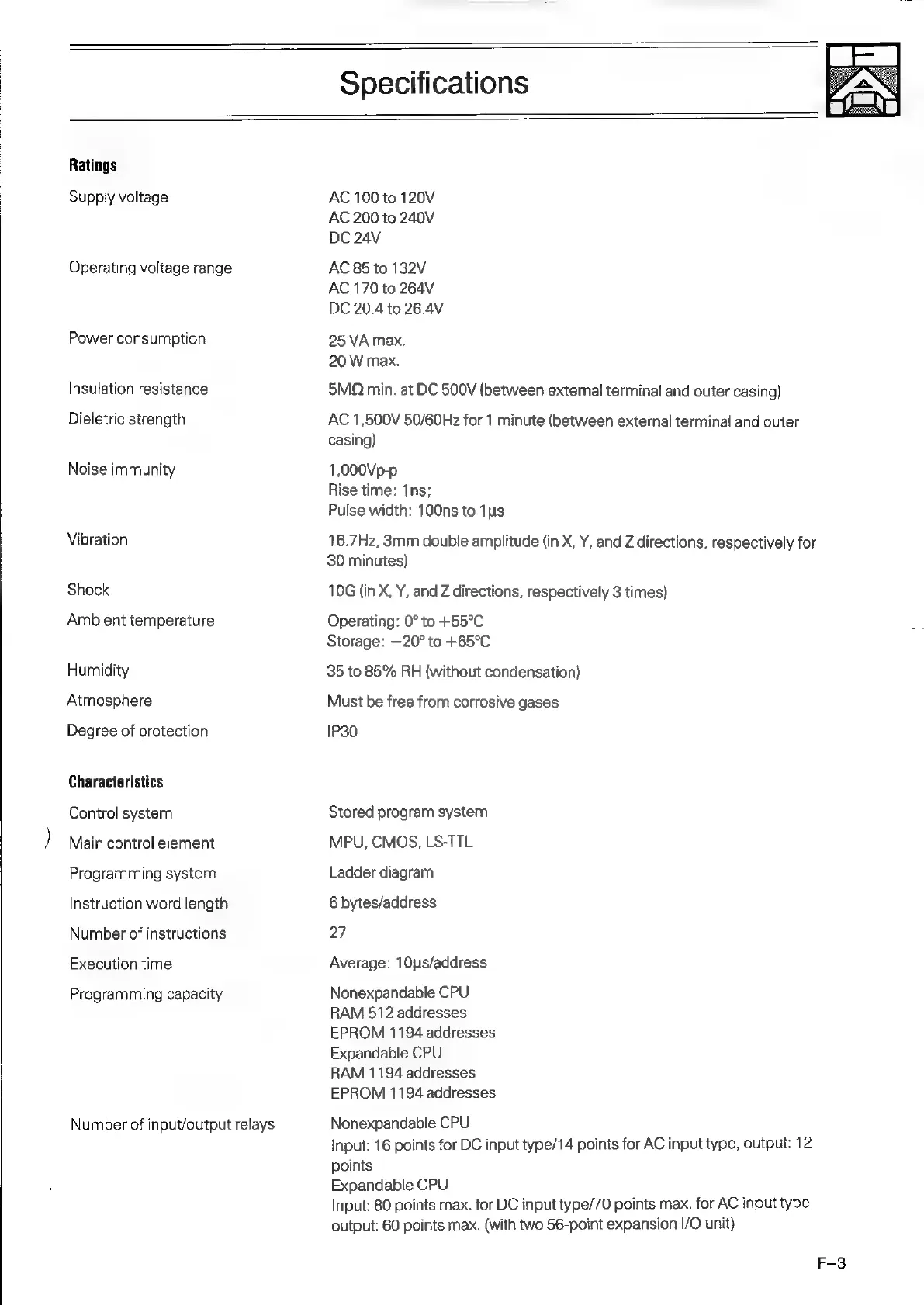

Specifications
Ratings
Supply voltage
Operating voltage range
Power consumption
Insulation resistance
Dieletric strength
Noise immunity
Vibration
Shock
Ambient temperature
Humidity
Atmosphere
Degree of protection
Characteristics
Control system
Main control element
Programming system
Instruction word length
Number of instructions
Execution time
Programming capacity
Number of input/output relays
AC 100 to 120V
AC 200 to 240V
DC 24V
AC 85 to 132V
AC 170 to 264V
DC 20.4 to 26.4V
25 VA max.
20 W max.
5MQ min. at DC 500V (between external terminal and outer casing)
AC 1,500V 50/60Hz for 1 minute (between external terminal and outer
casing)
1,000Vp-p
Rise time: Ins;
Pulse width: 100ns to 1s
16.7Hz, 3mm double amplitude (in X, Y, and Z directions, respectively for
30 minutes)
10G (in X, Y, and Z directions, respectively 3 times)
Operating: 0° to +55°C
Storage: —20° to +65°C
35 to 85% RH (without condensation)
Must be free from corrosive gases
IP30
Stored program system
MPU, CMOS, LS-TTL
Ladder diagram
6 bytes/address
27
Average: 10us/address
Nonexpandable CPU
RAM 512 addresses
EPROM 1194 addresses
Expandable CPU
RAM 1194 addresses
EPROM 1194 addresses
Nonexpandable CPU
Input: 16 points for DC input type/14 points for AC input type, output: 12
points
Expandable CPU
Input: 80 points max. for DC input type/70 points max. for AC input type,
output: 60 points max. (with two 56-point expansion I/O unit)
