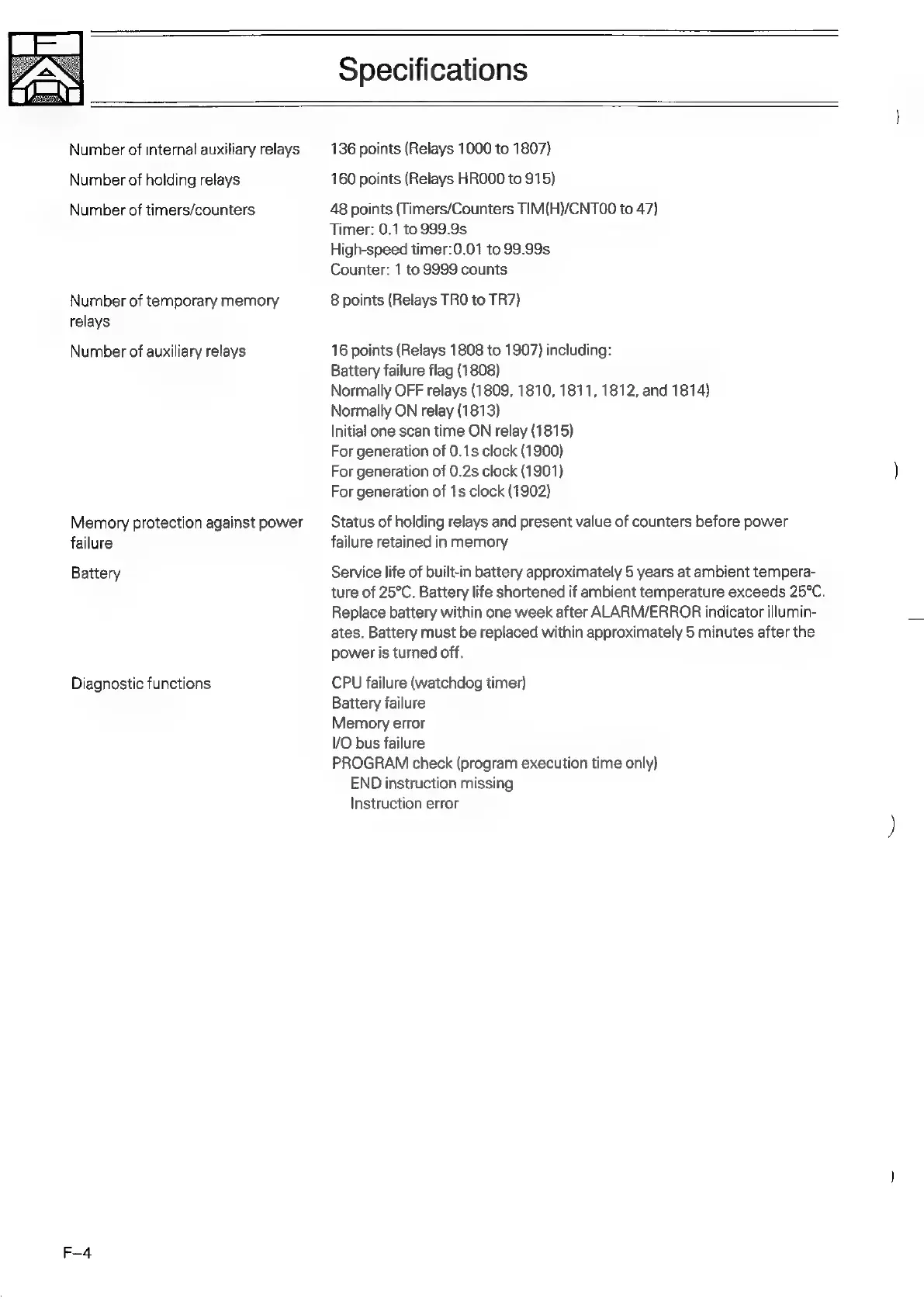

Specifications
Number
of
internal
auxiliary
relays
136
points
(Relays
1000
to
1807)
Number
of
holding
relays
160
points
(Relays
HROOO
to
915)
Number
of
timers/counters
48
points
(Timers/Counters
TIM(H)/CNT00O
to
47)
Timer:
0.1
to
999.9s
High-speed
timer:0.01
to
99.99s
Counter:
1
to
9999
counts
Number
of
temporary
memory
8
points
(Relays
TRO
to
TR7)
relays
Number
of
auxiliary
relays
16
points
(Relays
1808
to
1907)
including:
Battery
failure
flag
(1808)
Normally
OFF
relays
(1809,
1810, 1811,
1812,
and
1814)
Normally
ON
relay
(1813)
Initial
one
scan
time
ON
relay
(1815)
For
generation
of
0.1s
clock
(1900)
For
generation
of
0.2s
clock
(1901)
For
generation
of
1s
clock
(1902)
Memory
protection
against
power
Status
of
holding
relays
and
present
value
of
counters
before
power
failure
failure
retained
in
memory
Battery
Service
life
of
built-in
battery
approximately
5
years
at
ambient
tempera-
ture
of
25°C.
Battery
life
shortened
if
ambient
temperature
exceeds
25°C.
Replace
battery
within
one
week
after
ALARM/ERROR
indicator
illumin-
ates.
Battery
must
be
replaced
within
approximately
5
minutes
after
the
power
is
turned
off.
Diagnostic
functions
CPU
failure
(watchdog
timer)
Battery
failure
Memory
error
O
bus
failure
PROGRAM
check
(program
execution
time
only)
END
instruction
missing
Instruction
error
