Omron SYSMAC C Series User Manual

System expansion and peripherals

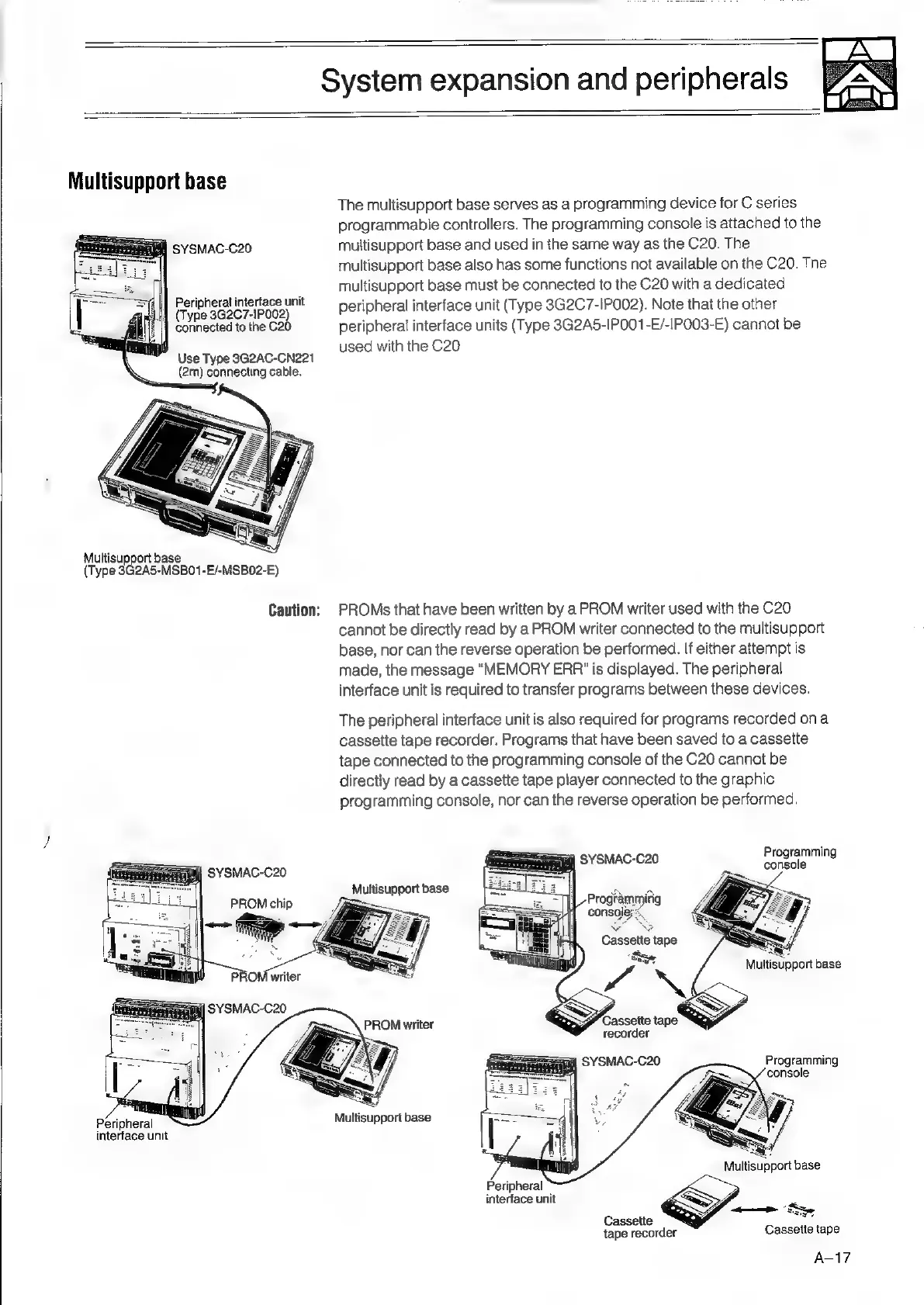

Multisupport base
Mi SYSMAC-C20
Peripheral interface unit
(Type 3G2C7-1P002)
connected to the C20
" Use Type 3G2AC-CN221
(2m) connecting cable.
Multisupport base
(Type 3G2A5-MSB01-E/-MSB02-E)
Caution:
iri
SYSMAC-C20
PROM chip
Peripheral
interface unit
The multisupport base serves as a programming device for C series
programmabie controllers. The programming console is attached to the
muitisupport base and used in the same way as the C20. The
multisupport
base
also
has
some
functions
not
available
on
the
C20.
The
multisupport base must be connected to the C20 with a dedicated
peripheral interface unit (Type 3G2C7-iP002). Note that the other
peripheral interface units (Type 3G2A5-|P001 -E/-IPO03-E) cannot be
used with the C20
PROMs that have been written by a PROM writer used with the C20
cannot be directly read by a PROM writer connected to the multisupport
base, nor can the reverse operation be performed. If either attempt is
made, the message "MEMORY ERR’ is displayed. The peripheral
interface unit is required to transfer programs between these devices.
The peripheral interface unit is also required for programs recorded on a
cassette tape recorder. Programs that have been saved to a cassette
tape connected to the programming console of the C20 cannot be
directly read by a cassette tape player connected to the graphic
programming console, nor can the reverse operation be performed.
Programming
SYSMAC-C20
console
Multisupport base
Cassette tape ™
recorder
Programming
console
Multisupport base
SYSMAC-C20
TS 3 ;
Multisupport base
Peripheral
interface unit ESS
SN —_—_ ye:
Cassette j
tape
recorder
Cassette
tape
A-17
