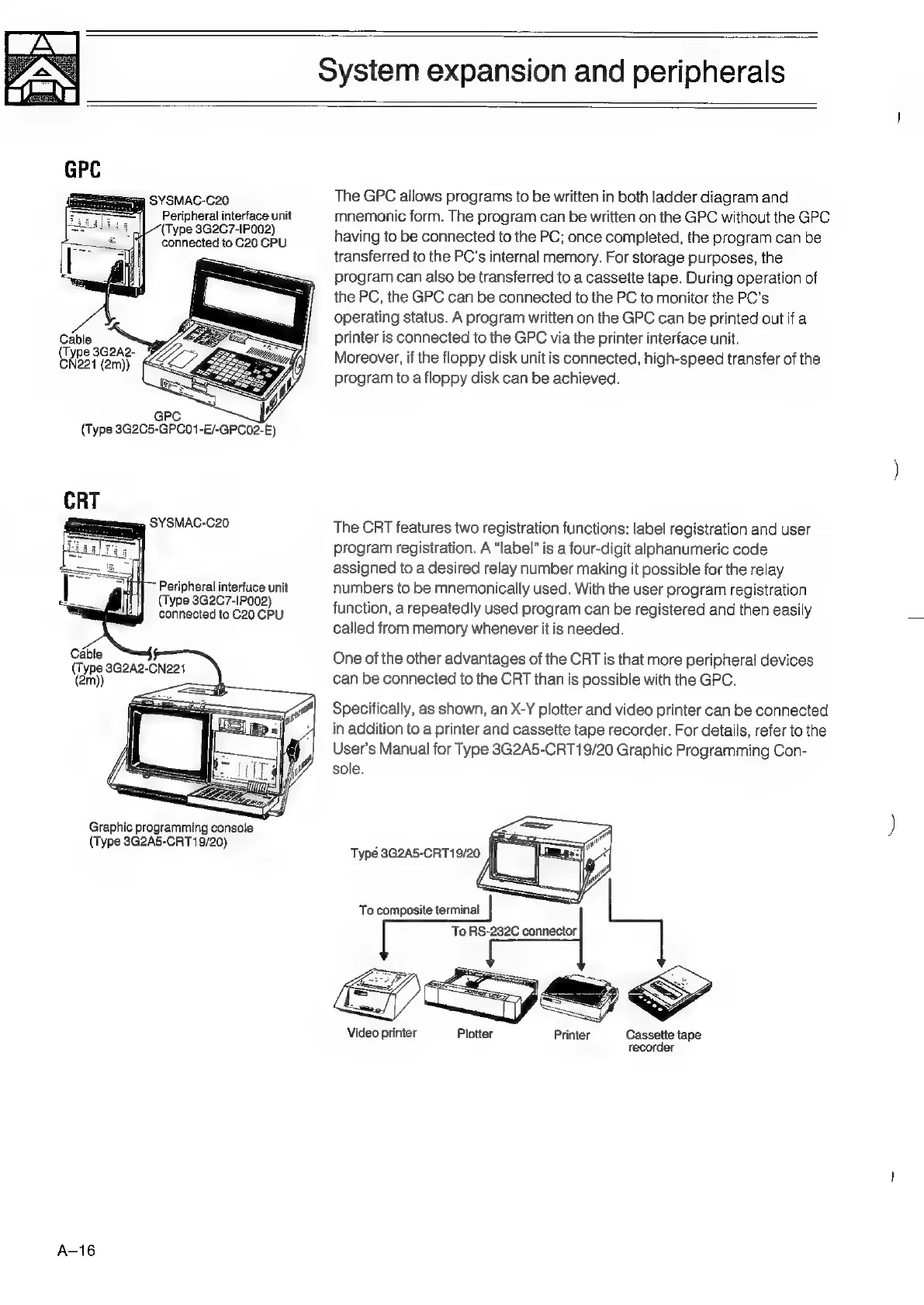

System expansion and peripherals
mame SYSMAC-C20 The GPC allows programs to be written in both ladder diagram and
| _ Peripheral interface unit mnemonic form. The program can be written on the GPC without the GPC
(Type 36267 Tro i having to be connected to the PC; once completed, the program can be
i transferred to the PC's internal memory. For storage purposes, the
program can also be transferred to a cassette tape. During operation of
the PC, the GPC can be connected to the PC to monitor the PC’s
operating status. A program written on the GPC can be printed out if a
printer is connected to the GPC via the printer interface unit.
Moreover, if the floppy disk unit is connected, high-speed transfer of the
program to a floppy disk can be achieved.
Cable aay,
(Type 3G2A2-
CN221 (2m))
GPC Ny
(Type 3G2C5-GPC01-E/-GPC02-E)
CRT
j SYSMAC-C20 The CRT features two registration functions: label registration and user
|
program
registration.
A
“label”
is
a
four-digit
alphanumeric
code
assigned to a desired relay number making it possible for the relay
Peripheral
interface
unit
numbers
to
be
mnemonically
used.
With
the
user
program
registration
eae
function,
a
repeatedly
used
program
can
be
registered
and
then
easily
called from memory whenever it is needed.
One of the other advantages of the CRT is that more peripheral devices
can be connected to the CRT than is possible with the GPC.
Specifically, as shown, an X-Y plotter and video printer can be connected
in addition to a printer and cassette tape recorder. For details, refer to the
User’s Manual for Type 3G2A5-CRT19/20 Graphic Programming Con-
sole.
Graphic programming console
(Type 3G2A5-CRT19/20)
Video printer Plotter Printer Cassette tape
recorder
A-16
