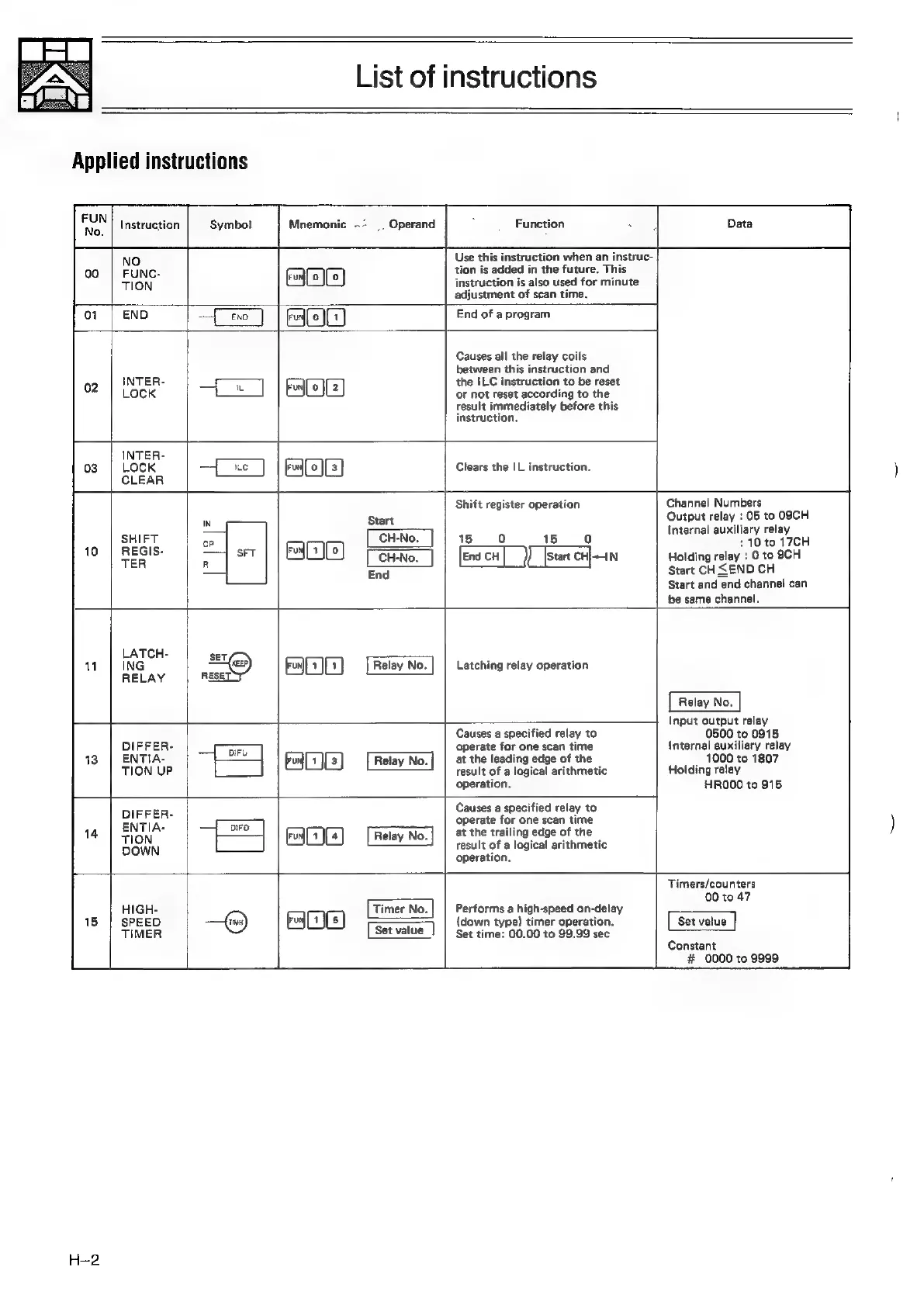

List of instructions
Applied instructions
Instruction
Mnemonic =>. Operand
Eunction
Use this instruction when an instruc-
tion is added in the future. This
instruction is also used for minute
adjustment of scan time.
End of a program
Causes all the relay coils
between this instruction and
the ILC instruction to be reset
or not reset according to the
result immediately before this
instruction.
Clears the IL instruction.
DIFFER-
ENTIA-
TION UP
Shift register operation
15 QO 15 0
ZREL
Latching relay operation
Causes a specified relay to
operate for one scan time
at the leading edge of the
result of a logical arithmetic
operation.
DIFFER-
ENTIA-
TION
DOWN
Relay No.
Causes a specified relay to
operate for one scan time
at the trailing edge of the
result of a logical arithmetic
operation.
Channel Numbers
Output relay : 05 to O9CH
Internal auxiliary relay
: 10 to 17CH
Holding relay : 0 to 9CH
Start CH LEND CH
Start and end channel can
be same channel.
Input output relay
0500 to 0915
Internal auxiliary relay
1000 to 1807
Holding relay
HRO0O00 to 915
Timer No.
Set value
Performs a high-speed on-delay
{down type) timer operation.
Set time: 00.00 to 99.99 sec
Timers/counters
00 to 47
Constant
# 0000 to 9999
