System expansion and peripherals
When the multisupport base is connected to a programmable controller in
the SYSMAC-C series, the connected PC must be specified by the
selector switch on the multisupport base. When the multisupport base is
connected to the C20, the setting of this selector switch is the same as
when specifying the C250.
The multisupport base can be connected to various peripheral devices in
the SYSMAC-C series.
Printer interface unit
The printer interface unit interfaces the C20 with printers so that ladder
diagrams, mnemonic lists, cross-reference lists, data memory contents,
and other information can be printed out for a written record. This can be
helpful as a diagnostic tool in correcting or modifying programs. To
connect the printer interface unit to a printer, interface board #8145
available from Epson is required.
The printer interface unit can also be used with the multisupport base or
graphic programming console. In this case, however, the memory
cassette of the printer interface unit must be Type 3G2A5-MP002-E,When
the printer interface unit is mounted to the C20 to print out programs, you
can stop the printer in one of two ways. Either the printing can be halted at
any desired point, or the printer can be made to pause between each
printed page. A button on the printer is used to select between the two.
When the button is pressed, the stop indicator on the printer interface unit
blinks at intervals of 0.1 second if the printing is to be immediately
stopped and at intervals of 0.4 second if printing the current page only is
specified.

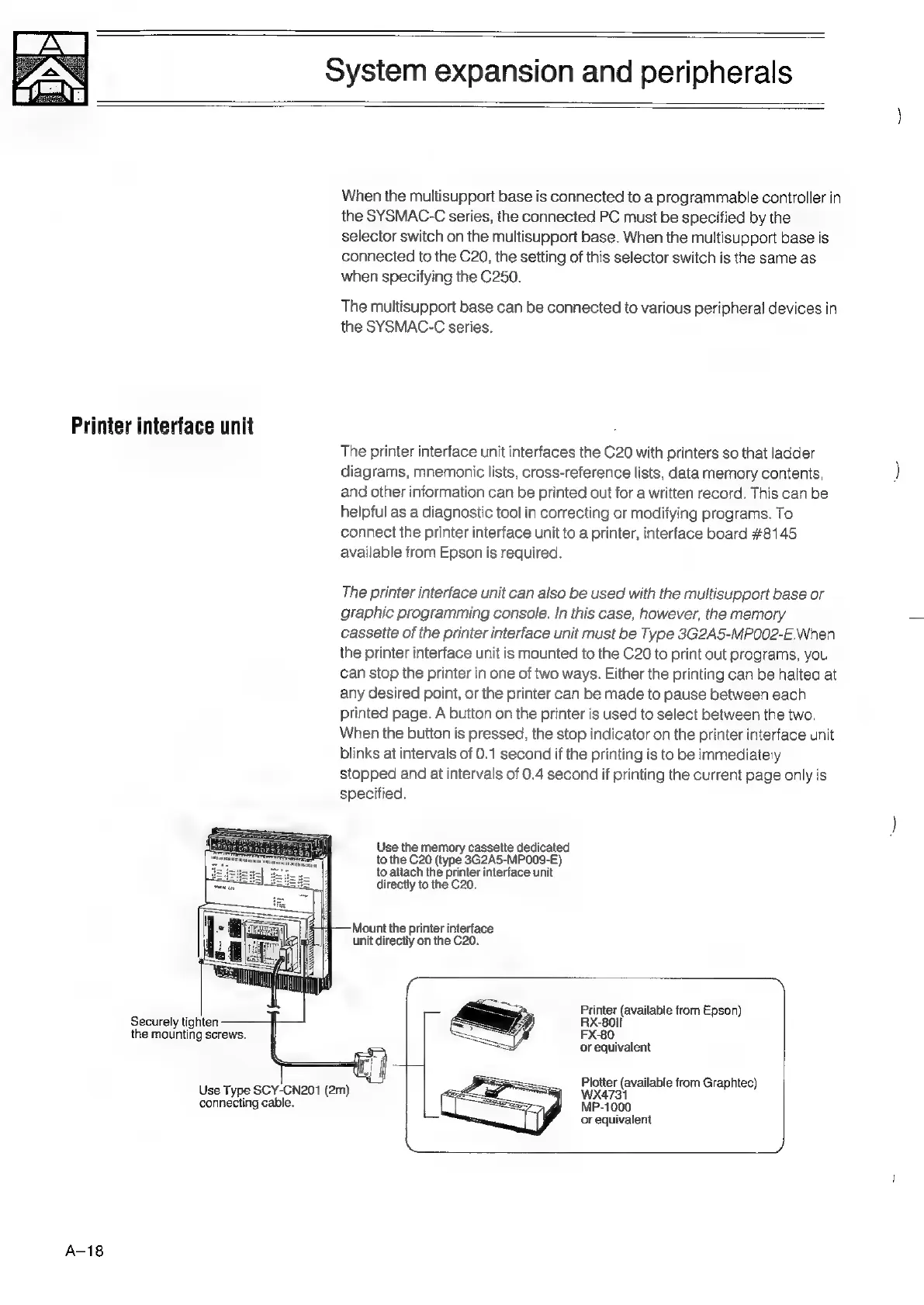

Use the memory cassette dedicated
to the C20 (type 3G2A5-MP009-E)
to attach the printer interface unit
directly to the C20.
Mount the printer interface
unit directly on the C20.
Printer (available from Epson)
RX-80li
FX-80
or equivalent
Securely tighten
the mounting screws.
Plotter (available from Graphtec)
WX4731
MP-1000
or equivalent
Use Type SCY-CN201 (2m)
connecting cable.
