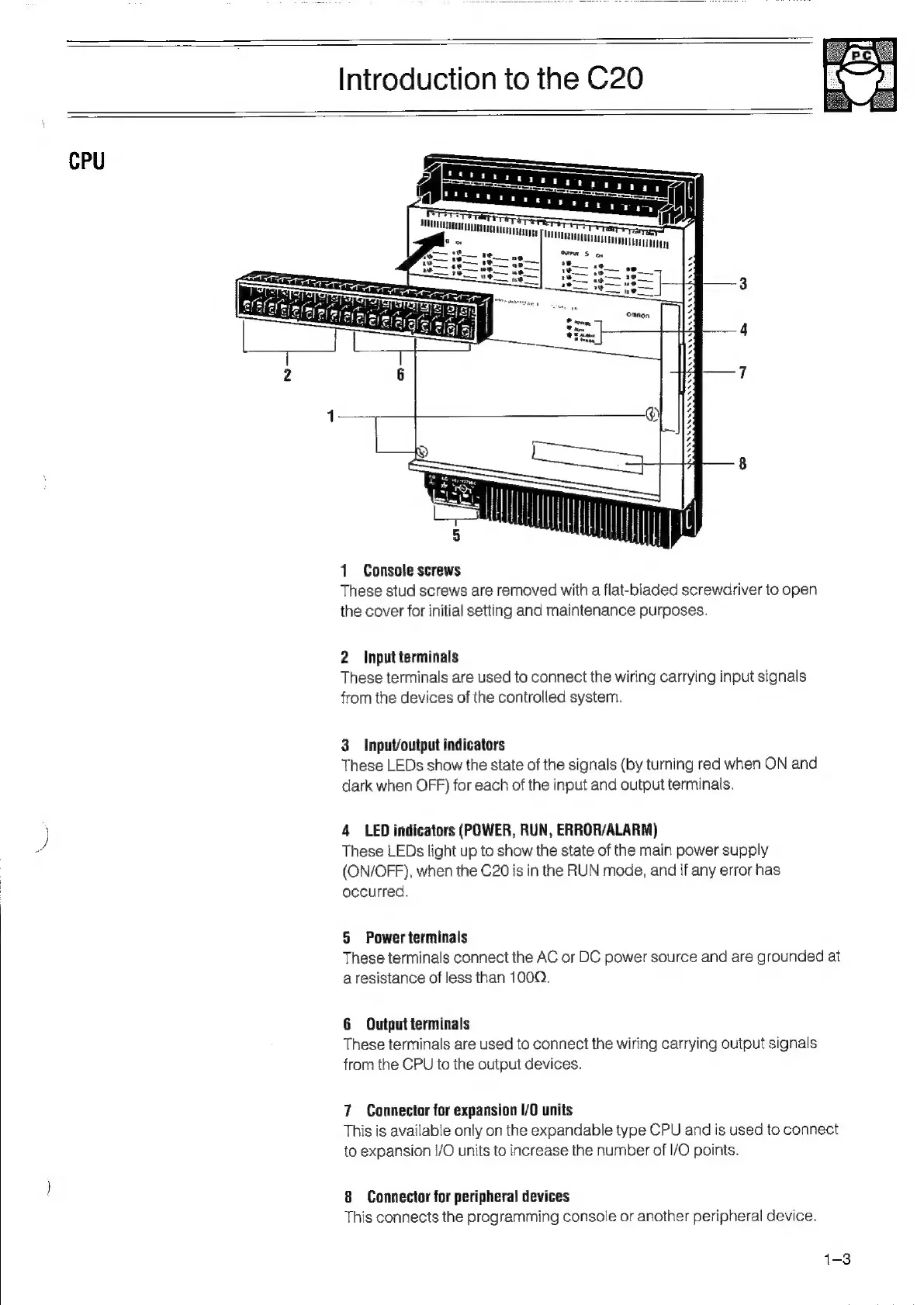

1
Console
screws
These
stud
screws
are
removed
with
a
flat-bladed
screwdriver
to
open
the
cover
for
initial
setting
and
maintenance
purposes.
2
Input
terminals
These
terminals
are
used
to
connect
the
wiring
carrying
input
signals
from
the
devices
of
the
controlled
system.
3
Input/output
indicators
These
LEDs
show
the
state
of
the
signals
(by
turning
red
when
ON
and
dark
when
OFF)
for
each
of
the
input
and
output
terminals.
4
LED
indicators
(POWER,
RUN,
ERROR/ALARM)
These
LEDs
light
up
to
show
the
state
of
the
main
power
supply
(ON/OFF),
when
the
C20
is
in
the
RUN
mode,
and
if
any
error
has
occurred.
5
Power
terminals
These
terminals
connect
the
AC
or
DC
power
source
and
are
grounded
at
a
resistance
of
less
than
100Q.
6
Output
terminals
These
terminals
are
used
to
connect
the
wiring
carrying
output
signals
from
the
CPU
to
the
output
devices.
7
Connector
for
expansion
1/0
units
This
is
available
only
on
the
expandable
type
CPU
and
is
used
to
connect
to
expansion
I/O
units
to
increase
the
number
of
I/O
points.
8
Connector
for
peripheral
devices
This
connects
the
programming
console
or
another
peripheral
device.
