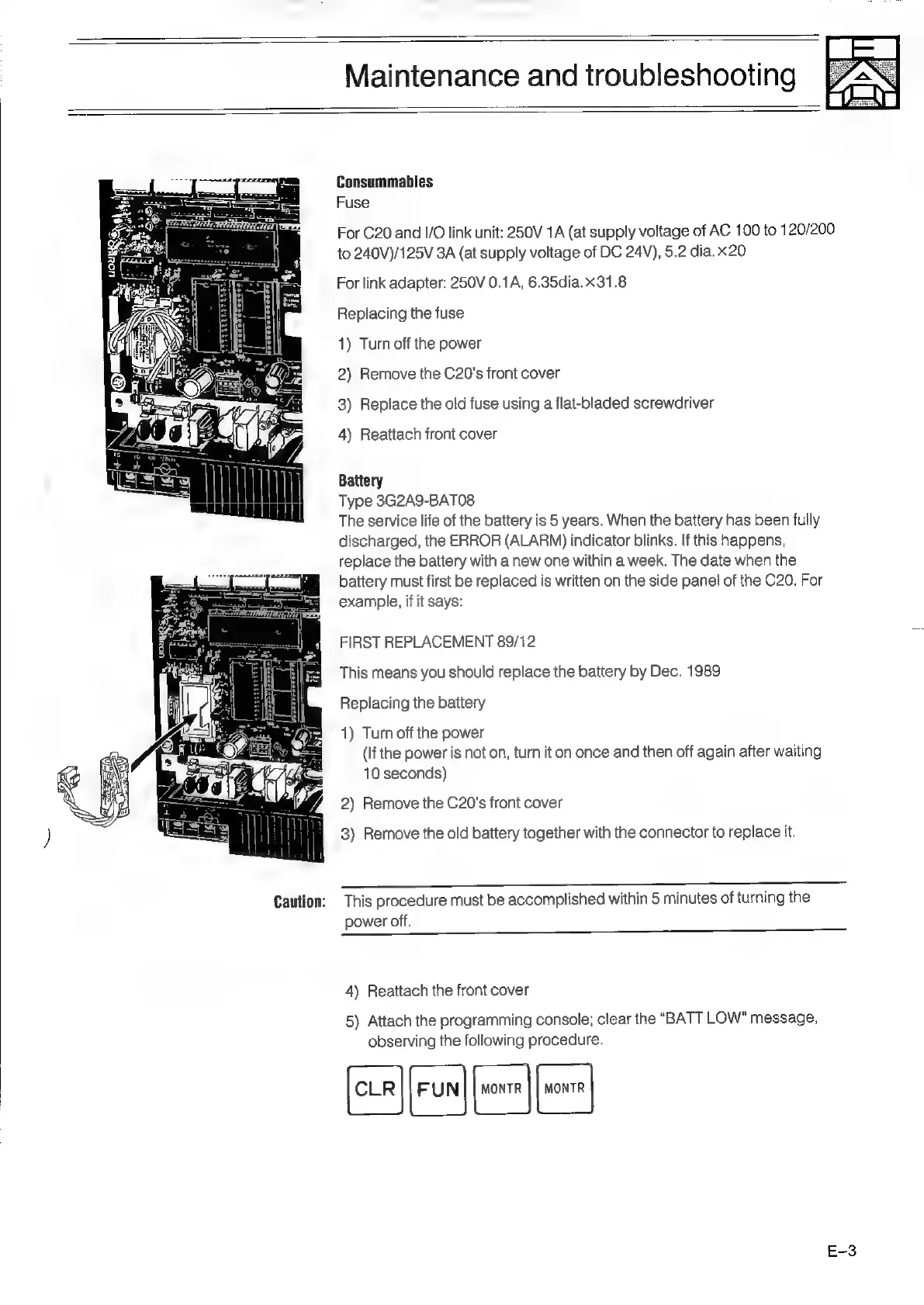

Omron SYSMAC C Series User Manual

Maintenance and troubleshooting
Sy
Caution:
Consummabies
Fuse
For
C20
and
I/O
link
unit:
250V
1A
(at
supply
voltage
of
AC
100
to
120/200
to
240V)/125V
3A
(at
supply
voltage
of
DC
24V),
5.2
dia.x20
For link adapter: 250V 0.1A, 6.35dia.x31.8
Replacing the fuse
1) Turn off the power
2) Remove the C20’s front cover
3) Replace the old fuse using a flat-bladed screwdriver
4) Reattach front cover
Battery
Type 3G2A9-BAT08
The service life of the battery is 5 years. When the battery has been fully
discharged, the ERROR (ALARM) indicator blinks. If this happens,
replace the battery with a new one within a week. The date when the
battery must first be replaced is written on the side panel of the C20. For
example, if it says:
FIRST REPLACEMENT 89/12
This means you should replace the battery by Dec. 1989
Replacing the battery
1) Turn off the power
(If the power is not on, turn it on once and then off again after waiting
10 seconds)
2) Remove the C20's front cover
3) Remove the old battery together with the connector to replace it.
This
procedure
must
be
accomplished
within
5
minutes
of
turning
the
power
off.
4) Reattach the front cover
5)
Attach
the
programming
console;
clear
the
“BATT
LOW"
message,
observing
the
following
procedure.
