Omron SYSMAC C Series User Manual

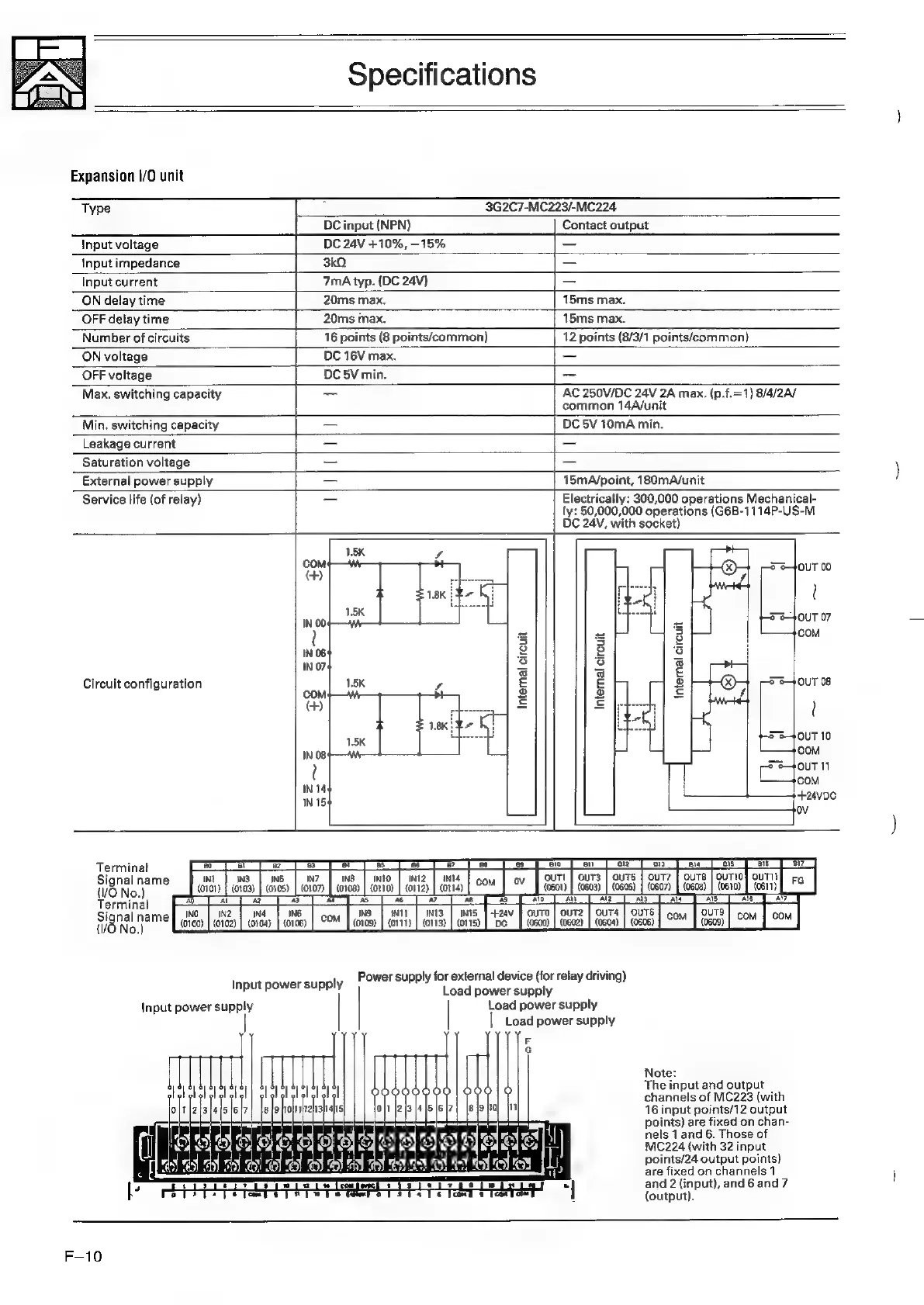

Specifications
Expansion 1/0 unit
Type 3G2C7-MC223/-MC224
DC input (NPN) Contact output
Input voltage DC 24V +10%, —15% —
input impedance 3kQ —
Input current 7mA typ. (DC 24V} —
ON delay time 20ms max. 15ms max.
OFF delay time | 20ms max. 15ms max.
Number of circuits 16 points (8 points/common) 12 points (8/3/1 points/common)
ON voltage DC 16V max. —
OFF voltage DC 5V min. —
Max. switching capacity — AC 250V/DC 24V 2A max. (p.f.=1) 8/4/2A/
common 14A/unit
Min. switching capacity — DC 5V 10mA min.
Leakage current = =
Saturation voltage — —
External power supply — 15mA/point, 180mA/unit
Service life (of relay) — Electrically: 300,000 operations Mechanical-
ly: 50,000,000 operations (G6B-1114P-US-M
DC 24V, with socket)
[> ©-4OUT 00
4 ©-40UT 07
COM
p> OUT 08
Circuit configuration
internal circuit
Internal circuit
Internal circuit
terminal
ignal name IN?
(O No.) (0107)
Terminal
Signal name
{VO No.)
Power supply for external device (for relay driving)
Input power supply Load power supply
Input
power
supply
Load
power
supply
Load power supply
Note:
The input and output
TLEPTLLLL YT channels of MC223 (with
16 input points/12 output
points) are fixed on chan-
nels 1 and 6. Those of
MC224 {with 32 input
points/24 output points}
are fixed on channels 1
‘| and 2 (input), and 6 and 7
d (output).
OK TN TAS
ie | £: OK ®
