Omron SYSMAC C Series User Manual

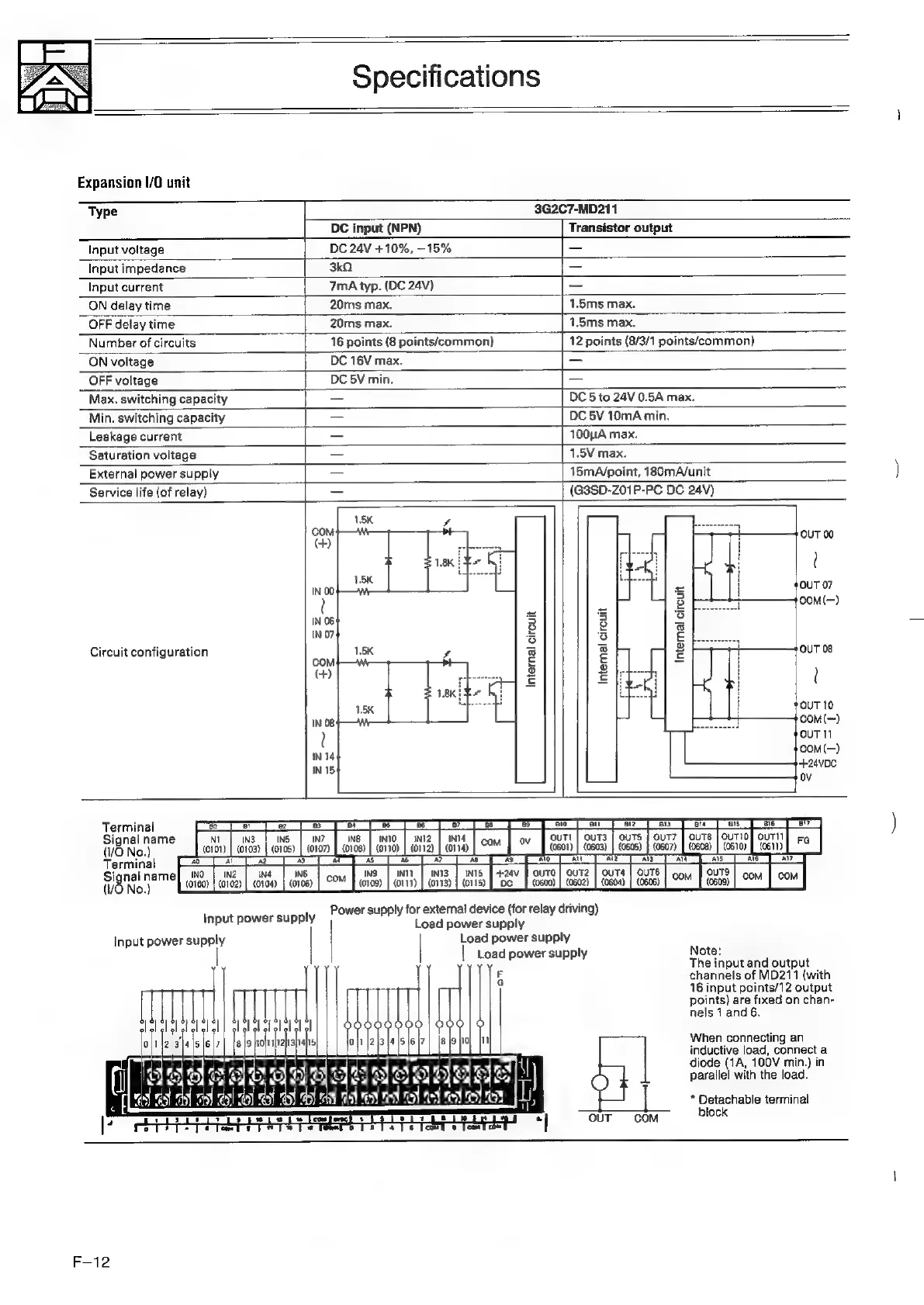

Specifications
Expansion I/0 unit
Type
3G2C7-MD211
Input voltage
DC input (NPN)
DC 24V +10%, -15%
Transistor output
Input impedance 3kQ. —
Input current 7mA typ. (DC 24V) —
ON delay time 20ms max. 1.5ms max.
OFF delay time 20ms max. 1.5ms max.
Number of circuits
16 points {8 points/common)
12 points (8/3/1 points/common)
ON voltage DC 16V max. —
OFF voltage DC 5V min. —
Max. switching capacity — DC 5 to 24V 0.5A max.
Min. switching capacity — DC 5V 10mA min.
Leakage current == 100A max.
Saturation voltage = 1.5V max.
External power supply
15mA/point, 180mA/unit
Service life (of relay)
(G3SD-Z01P-PC DC 24V)
Circuit configuration
Internal circuit
Internal circuit
Internal circuit
Eg c
Terminal
Signal name
(1/0 No.)
INI
(0101)
IN3
(0103)
OUT3 | OUTS | OUT7
(0603) oor) | kia 107)
Terminal
Signal name
(VO No.)
Input power “i
Input power ba
wu
al ol cll of al ol ol
o|1 l2 |z'ja |s |e |7
al glali 1 ol ol ol ol
8 KRAANA
KOK Jay
ekk BE HE is na
PP o-¢ ae HH
F-12
Power supply for external device (for relay driving)
Load power supply
meel
gs SSK ko SEERE
X Ok ef To r Fo To ie
eS i] sir pti
Load power supply
Load power supply
Note:
The input and output
channels of MD211 (with
16 input points/12 output
points) are fixed on chan-
nels 1 and 6.
When connecting an
inductive load, connect a
diode (1A, 100V min.) in
parallel with the load.
* Detachable terminal
block
