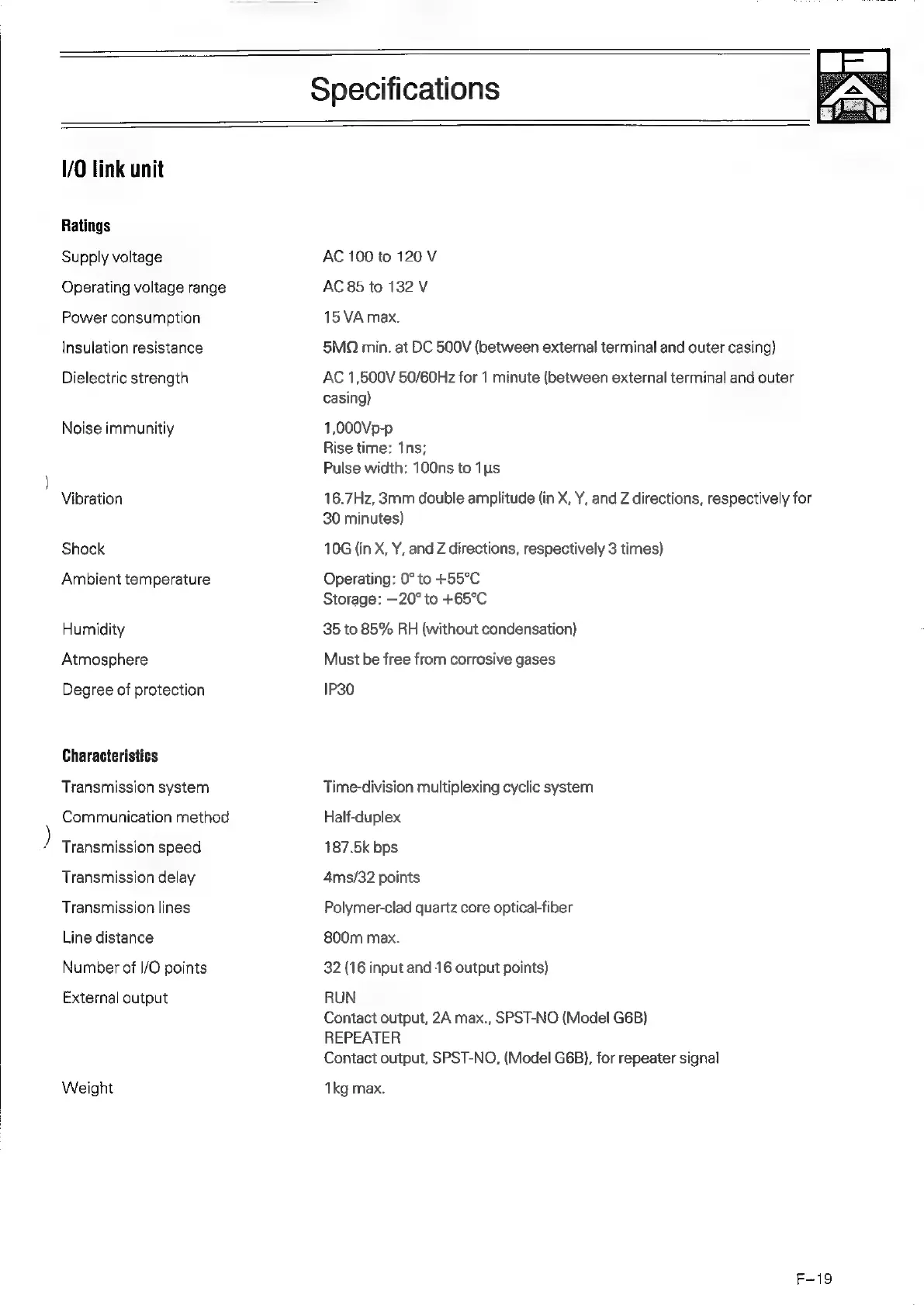

Specifications
1/0 link unit
Ratings
Supply voltage
Operating voltage range
Power consumption
Insulation resistance
Dielectric strength
Noise immunitiy
Vibration
Shock
Ambient temperature
Humidity
Atmosphere
Degree of protection
Characteristics
Transmission system
Communication method
Transmission speed
Transmission delay
Transmission lines
Line distance
Number of I/O points
External output
Weight
AC 100 to 120 V
AC 85 to 132 V
15 VA max.
5MQ min. at DC 500V (between external terminal and outer casing)
AC 1,500V 50/60Hz for 1 minute (between external terminal and outer
casing)
1,000Vp-p
Rise time: Ins;
Pulse width: 100ns to 1ps
16.7Hz, 3mm double amplitude (in X, Y, and Z directions, respectively for
30 minutes)
10G {in X, Y, and Z directions, respectively 3 times)
Operating: 0° to +55°C
Storage: —20° to +65°C
35 to 85% RH (without condensation)
Must be free from corrosive gases
IP30
Time-division multiplexing cyclic system
Half-duplex
187.5k bps
Ams/32 points
Polymer-clad quartz core optical-fiber
800m max.
32 (16 input and 16 output points)
RUN
Contact output, 2A max., SPST-NO (Model G6B)
REPEATER
Contact output, SPST-NO, (Model G6B), for repeater signal
1kg max.
