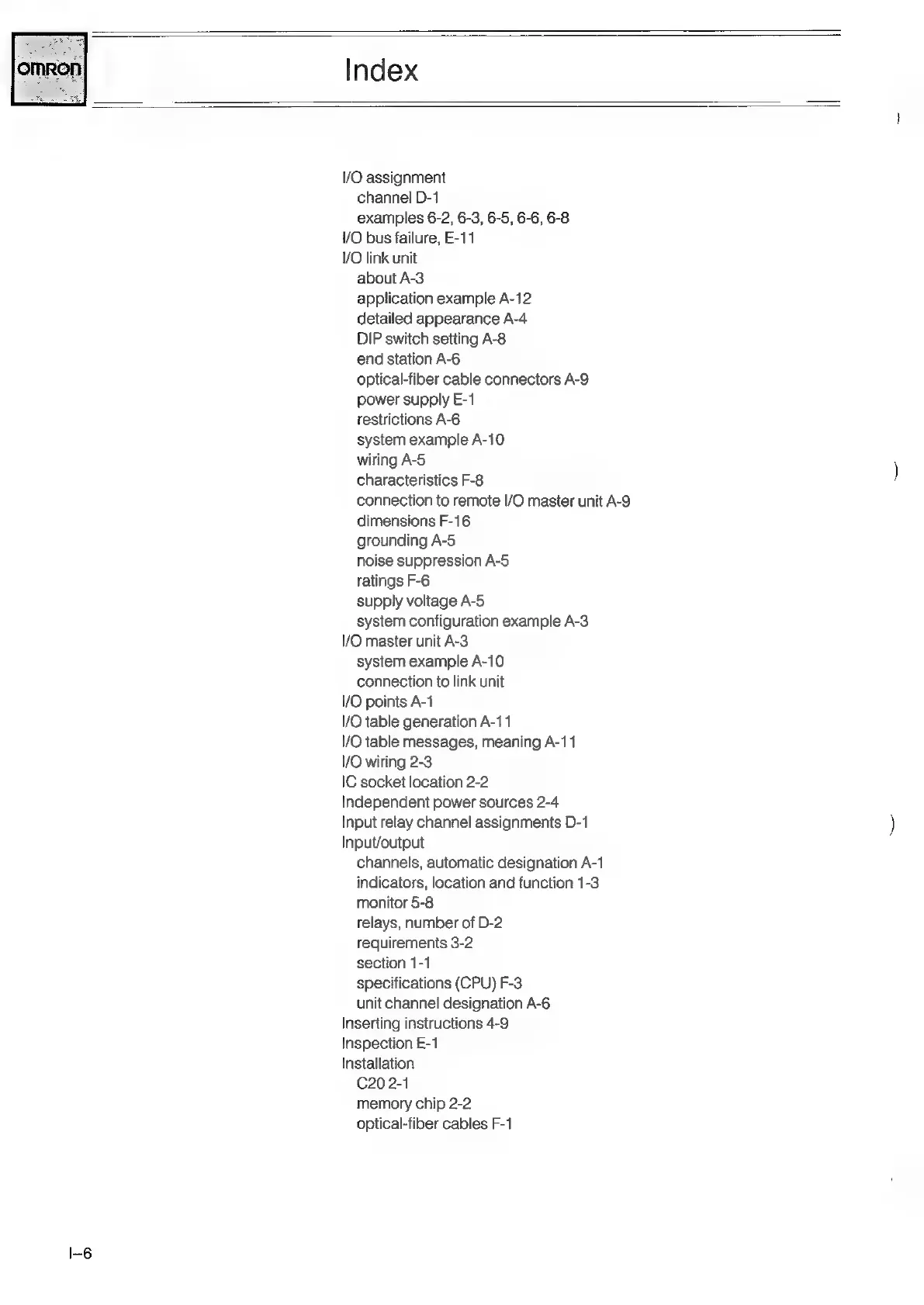

Omron SYSMAC C Series User Manual

Index
I/O assignment
channel D-1
examples 6-2, 6-3, 6-5, 6-6, 6-8
V/O bus failure, E-11
1/0 link unit
about A-3
application example A-12
detailed appearance A-4
DIP switch setting A-8
end station A-6
optical-fiber cable connectors A-9
power supply E-1
restrictions A-6
system example A-10
wiring A-5
characteristics F-8
connection to remote I/O master unit A-9
dimensions F-16
grounding A-5
noise suppression A-5
ratings F-6
supply voltage A-5
system configuration example A-3
/O master unit A-3
system example A-10
connection to link unit
/O points A-4
/O table generation A-11
/O table messages, meaning A-11
/O wiring 2-3
C socket location 2-2
ndependent power sources 2-4
nput relay channel assignments D-1
nput/output
channels, automatic designation A-1
indicators, location and function 1-3
monitor 5-8
relays, number of D-2
requirements 3-2
section 1-1
specifications (CPU) F-3
unit channel designation A-6
Inserting instructions 4-9
Inspection E-1
Installation
C20 2-1
memory chip 2-2
optical-fiber cables F-1
