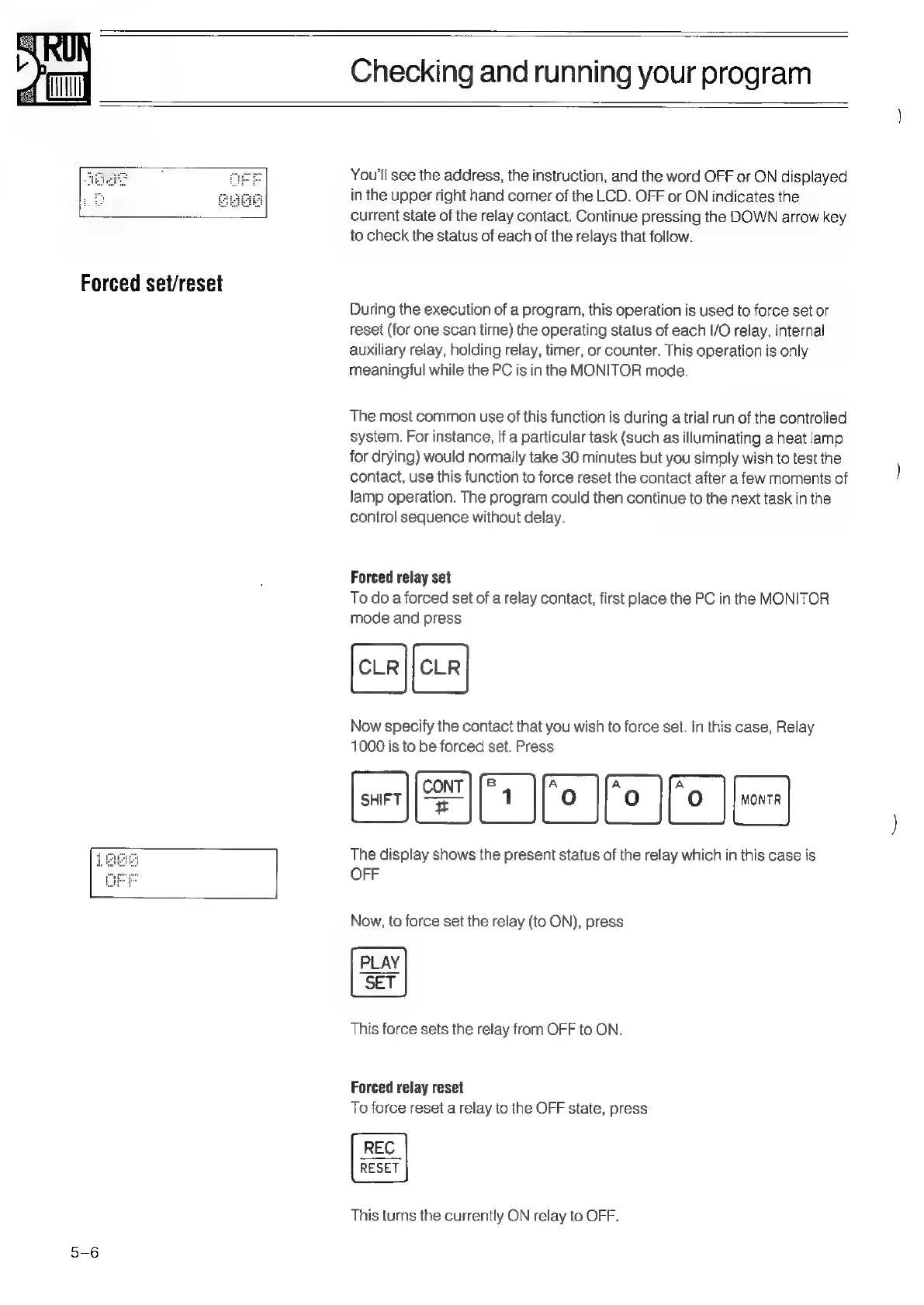

Checking
and
running
your
program
Forced
set/reset
You'll
see
the
address,
the
instruction,
and
the
word
OFF
or
ON
displayed
in
the
upper
right
hand
corner
of
the
LCD.
OFF
or
ON
indicates
the
Current
state
of
the
relay
contact.
Continue
pressing
the
DOWN
arrow
key
to
check
the
status
of
each
of
the
relays
that
follow.
During
the
execution
of
a
program,
this
operation
is
used
to
force
set
or
reset
(for
one
scan
time)
the
operating
status
of
each
I/O
relay,
internal
auxiliary
relay,
holding
relay,
timer,
or
counter.
This
operation
is
only
meaningful
while
the
PC
is
in
the
MONITOR
mode.
The
most
common
use
of
this
function
is
during
a
trial
run
of
the
controlled
system.
For
instance,
if
a
particular
task
(such
as
illuminating
a
heat
lamp
for
drying)
would
normally
take
30
minutes
but
you
simply
wish
to
test
the
contact,
use
this
function
to
force
reset
the
contact
after
a
few
moments
of
lamp
operation.
The
program
could
then
continue
to
the
next
task
in
the
control
sequence
without
delay.
Forced
relay
set
To
do
a
forced
set
of
a
relay
contact,
first
place
the
PC
in
the
MONITOR
mode
and
press
Now
specify
the
contact
that
you
wish
to
force
set.
In
this
case,
Relay
1000
is
to
be
forced
set.
Press
A
The
display
shows
the
present
status
of
the
relay
which
in
this
case
is
OFF
Now,
to
force
set
the
relay
(to
ON),
press
PLAY
SET
This
force
sets
the
relay
from
OFF
to
ON.
Forced
relay
reset
To
force
reset
a
relay
to
the
OFF
state,
press
REC
RESET
This
turns
the
currently
ON
relay
to
OFF.
