Omron SYSMAC C Series User Manual

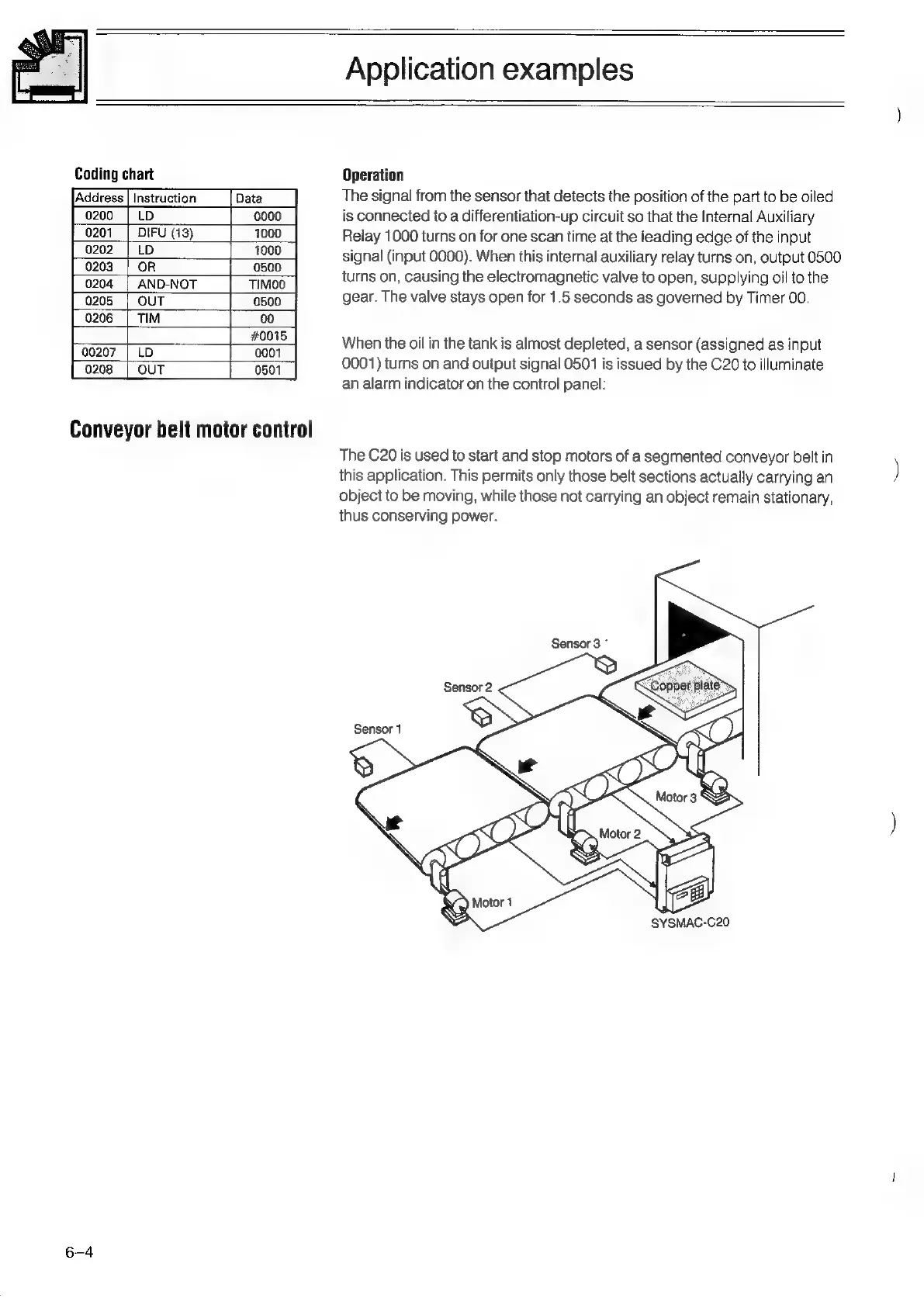

Application examples
Coding chart Operation
Instruction The signal from the sensor that detects the position of the part to be oiled
LD is connected to a differentiation-up circuit so that the Internal Auxiliary
DIFU
(13)
Relay
1000
turns
on
for
one
scan
time
at
the
leading
edge
of
the
input
signal (input 0000). When this internal auxiliary relay turns on, output 0500
turns on, causing the electromagnetic valve to open, supplying oil to the
gear. The valve stays open for 1.5 seconds as governed by Timer 00.
When the oil in the tank is almost depleted, a sensor (assigned as input
0001) turns on and output signal 0501 is issued by the C20 to illuminate
an alarm indicator on the control panel:
Conveyor belt motor control
The C20 is used to start and stop motors of a segmented conveyor belt in
this application. This permits only those belt sections actually carrying an
Object to be moving, while those not carrying an object remain stationary,
thus conserving power.
Sensor 3 *
