Application examples
Coding Chart
0000 | LD 0000
0001 [| OR 1000
| 0002 | AND-NOT 1001
0003 | OUT 1000
0004 | LD 1000
0005 | AND-NOT 0002
0006. | OUT 0502
0007 | LD 1000
0008 | OUT 0500
0009 | LD 0001
0010 | OR 0501
0011 | AND-NOT 1001
0012 | OUT 0501
0013 [ LD 0501
0014 | AND-NOT 0001
0015 | OUT 1001
Bottle Label Detection
Conveyor B
Operation
When
the
start
buiton
(input
0000)
is
depressed,
the
washing
machine
begins
operating
(i.e.,
the
machine
starts
moving
and
at
the
same
time,
the
spray
valve
is opened).
The
washing
process
continues
until
Internal
Auxiliary
Relay
1001,
which
can
also
serve
as
a
reset
input,
is
opened.
Input
0000
and
Internal
Auxiliary
Relay
1001
are
ANDed
and
the
result
is
internally
output
to
nternal
Auxiliary
Relay
1000.
This
result
is
then
ANDed
with
input
0002
the
condition
under
which
the
washing
machine
is
stopped).
As
iong
as
the
condition
of
this
AND
circuit
is
satisfied,
output
502
is
turned
on,
causing
the
washing
apparatus
to
travel
the
entire
length
of
the
vehicle.
nternal
Auxiliary
Relay
1000
output
is
also
directly
connected
to
output
0500
that
causes
the
spray
vaive
to
open.
Output
501
is
issued
to
start
operating
the
brush
when
the
vehicle
detector
sends
a
signal
to
the
C20
(input
0001)
(unless
Internal
Auxiliary
Relay
1001
is
open).

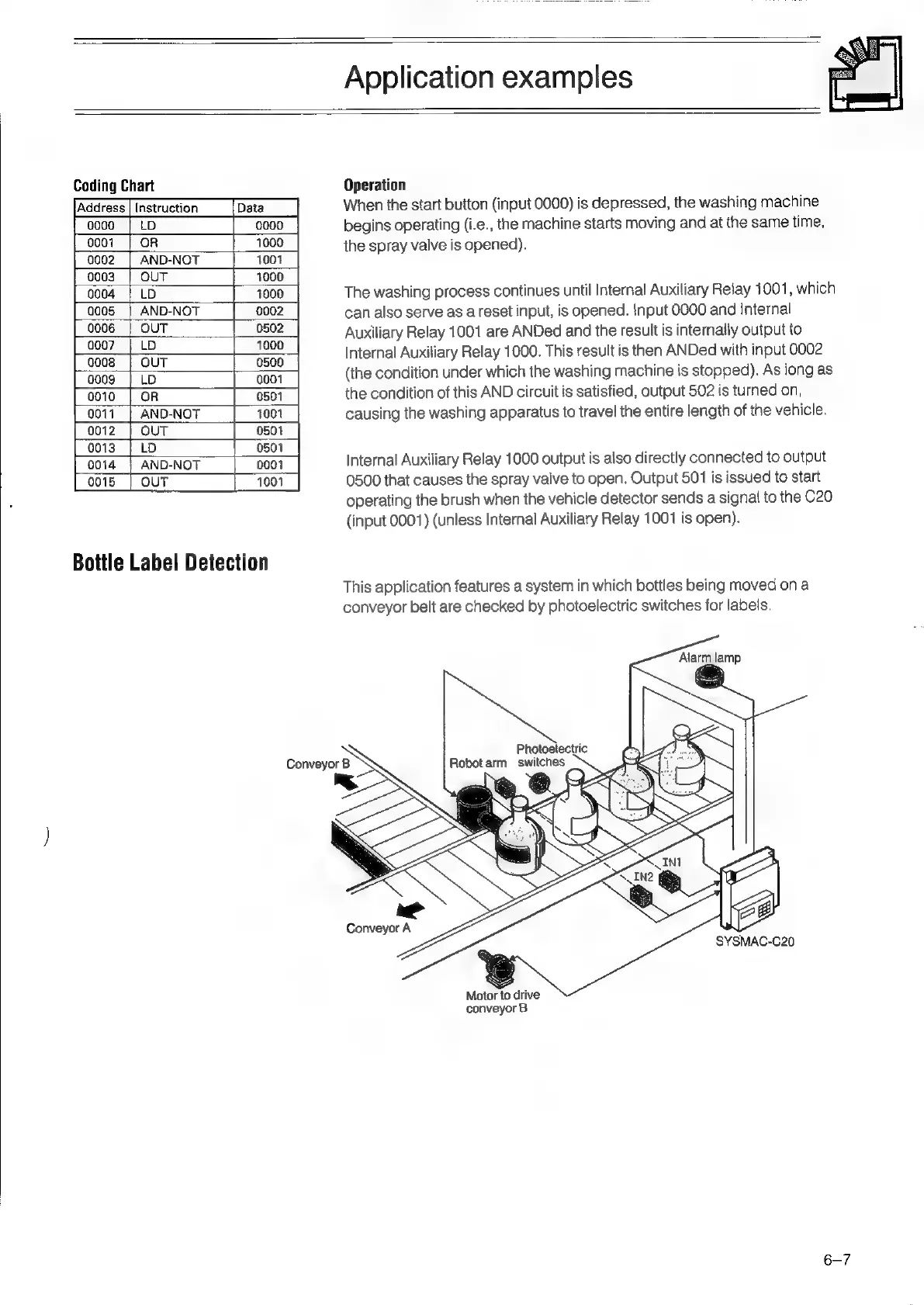

This application features a system in which bottles being moved on a
conveyor belt are checked by photoelectric switches for labels.
Alarm lamp
Photoelectric
Robot arm switches
Conveyor A
Motor to drive
conveyor B
