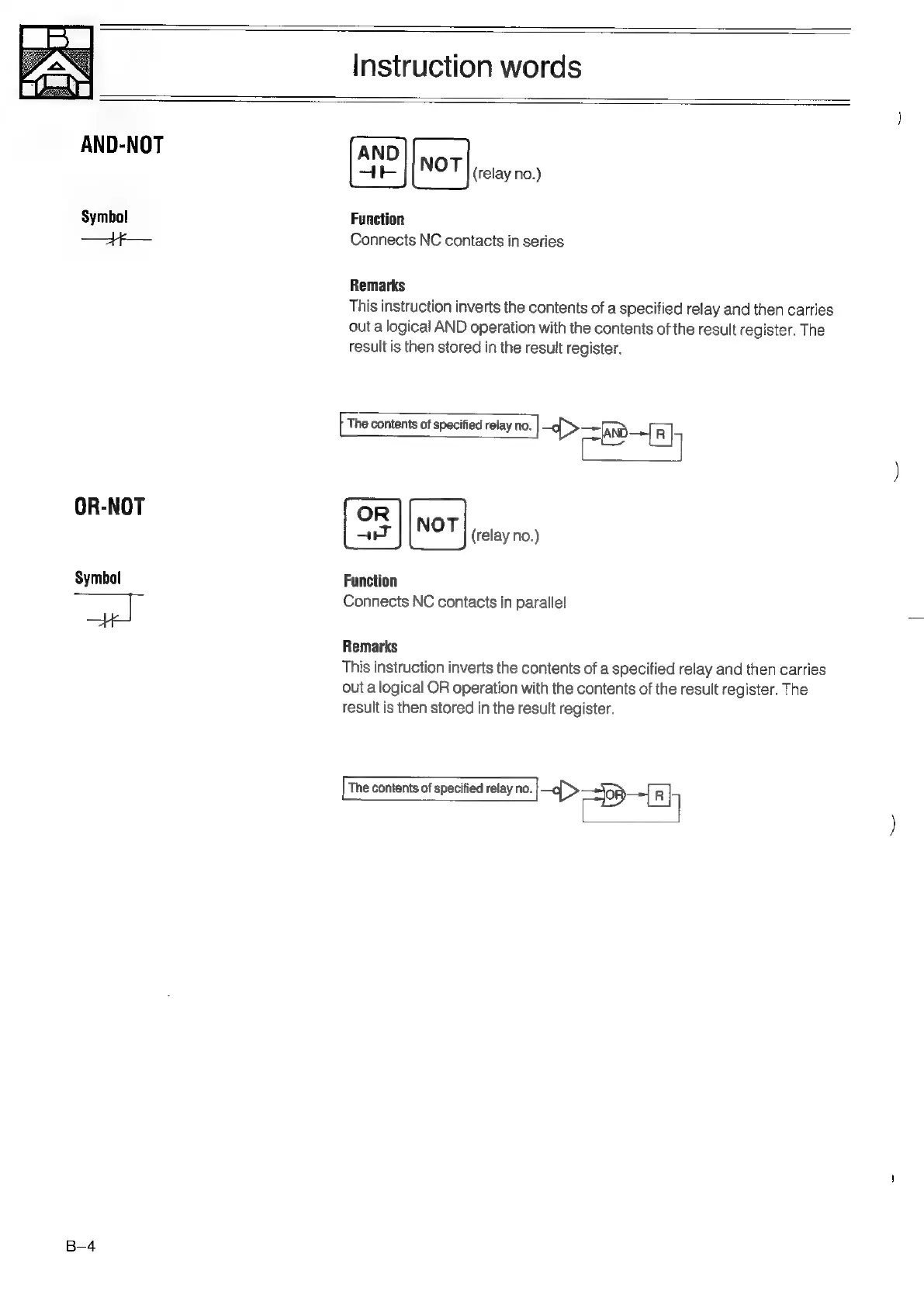

Instruction words
AND-NOT AND
ry
Symbol Function
—H—
Connects
NC
contacts
in
series
Remarks
This
instruction
inverts
the
contents
of
a
specified
relay
and
then
carries
out
a
logical
AND
operation
with
the
contents
of
the
result
register.
The
result
is then
stored
in
the
result
register.
[The
contents
of
specified
relay
no.
|
-J>
[and
—{R}
OR-NOT OR
NOT (relay no.)
Symbol
Function
Connects
NC
contacts
in
paralle!
Remarks
This instruction inverts the contents of a specified relay and then carries
out a logical OR operation with the contents of the result register. The
result is then stored in the result register.
The contents of specified relay no. BAe amt
