Omron SYSMAC C Series User Manual

Instruction words

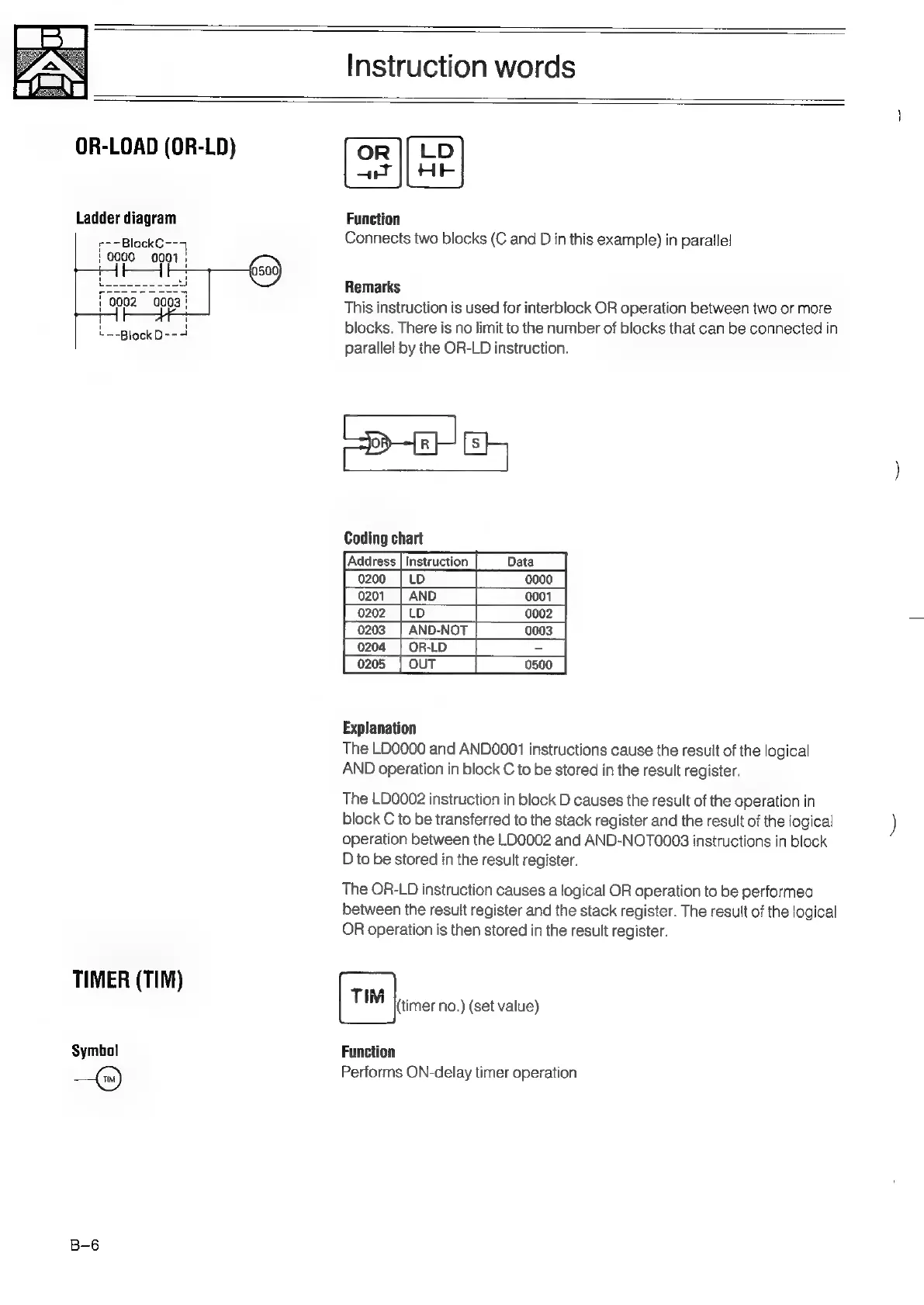

OR-LOAD (OR-LD)
Ladder diagram
r--BlockC--7
{0000 0001 |
+ | {I
TIMER (TIM)
Symbol
(ni)
OR || LD
aH || HE
Function
Connects two blocks (C and D in this example) in parallel
Remarks
This instruction is used for interblock OR operation between two or more
blocks. There is no limit to the number of blocks that can be connected in
parallel by the OR-LD instruction.
-D-H E
Coding chart
| 0203 | AND-NoT | 0003 |
| 0204 |oRLD | -
| 0205 [out j 0500]
Explanation
The LD0000 and AND0001 instructions cause the result of the logical
AND operation in block C to be stored in the result register.
The LD0002 instruction in block D causes the result of the operation in
block
C
to
be
transferred
to
the
stack
register
and
the
result
of
the
logical
operation between the LD0002 and AND-NOTO003 instructions in block
D to be stored in the result register.
The OR-LD instruction causes a logical OR operation to be performed
between the result register and the stack register. The result of the logical
OR operation is then stored in the result register.
TIM
(timer no.) (set value)
Function
Performs ON-delay timer operation
