Omron SYSMAC C Series User Manual

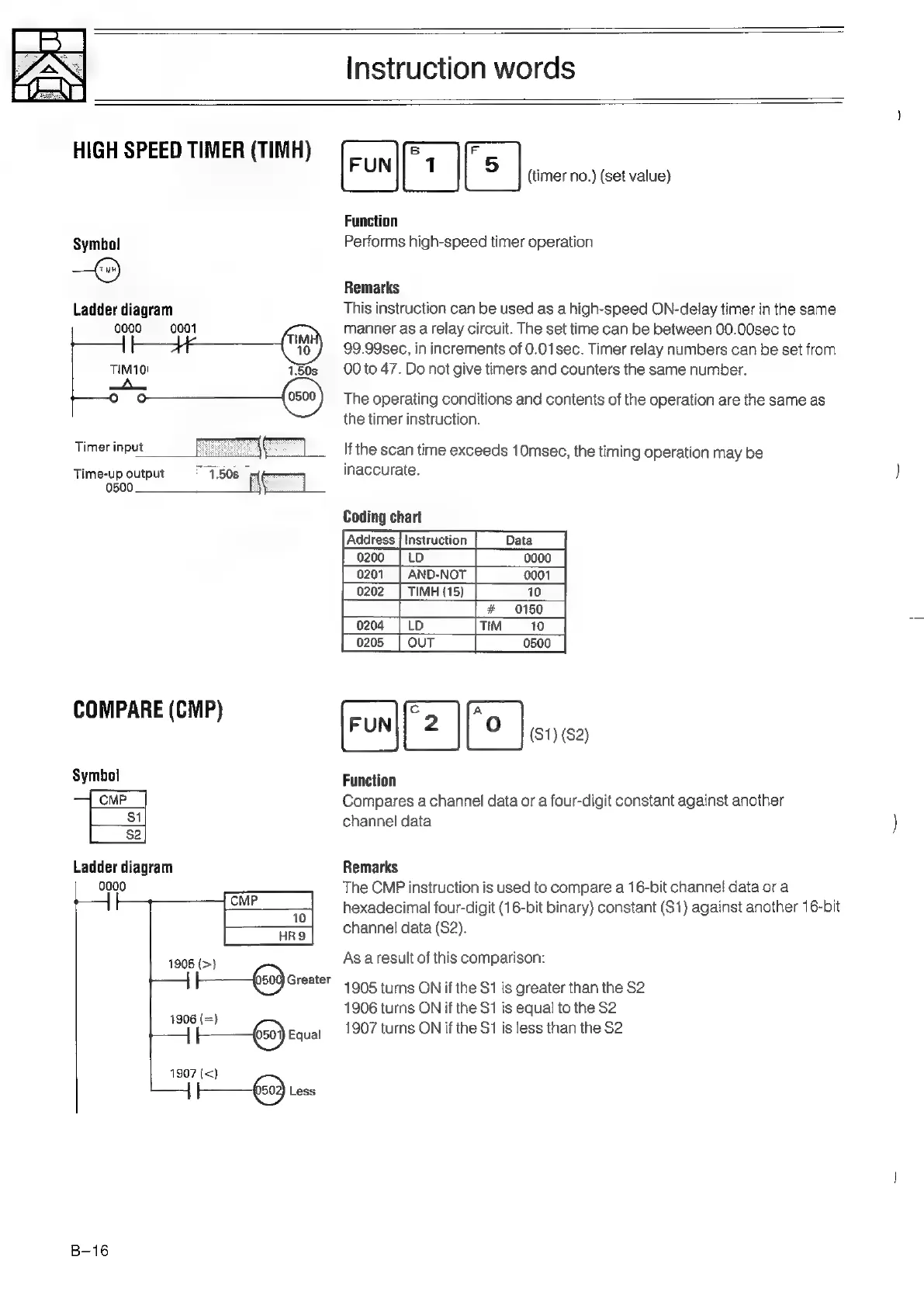

Instruction words
HIGH SPEED TIMER (TIMH)
Symbol
—©
Ladder diagram
0000 0001
TIM101 1.50s
AW
Oo oO
Timer input ((
Time-up output oT 50s |
0500 A
COMPARE (CMP)
Symbol
Ladder diagram
0000
>
1905 (>)
t+-— | 609 Greater
1906 (=}
+— o) Equal
1907
— Less
(timer no.) (set value}
Function
Performs high-speed timer operation
Remarks
This instruction can be used as a high-speed ON-delay timer in the same
manner as a relay circuit. The set time can be between 00.00sec to
99.99sec, in increments of 0.01sec. Timer relay numbers can be set from
00 to 47. Do not give timers and counters the same number.
The operating conditions and contents of the operation are the same as
the timer instruction.
If
the
scan
time
exceeds
10msec,
the
timing
operation
may
be
inaccurate.
Coding chart
Function
Compares a channel data or a four-digit constant against another
channel data
Remarks
The CMP instruction is used to compare a 16-bit channe! data or a
hexadecimal four-digit (16-bit binary) constant (S1) against another 16-bit
channel data (S2).
As a result of this comparison:
1905 turns ON if the S1 is greater than the S2
1906 turns ON if the S1 is equal to the S2
1907 turns ON if the S1 is less than the S2
