2 Instructions
CP1E CPU Unit Instructions Reference Manual(W483)
Timer and Counter Instructions
2
TIML/TIMLX

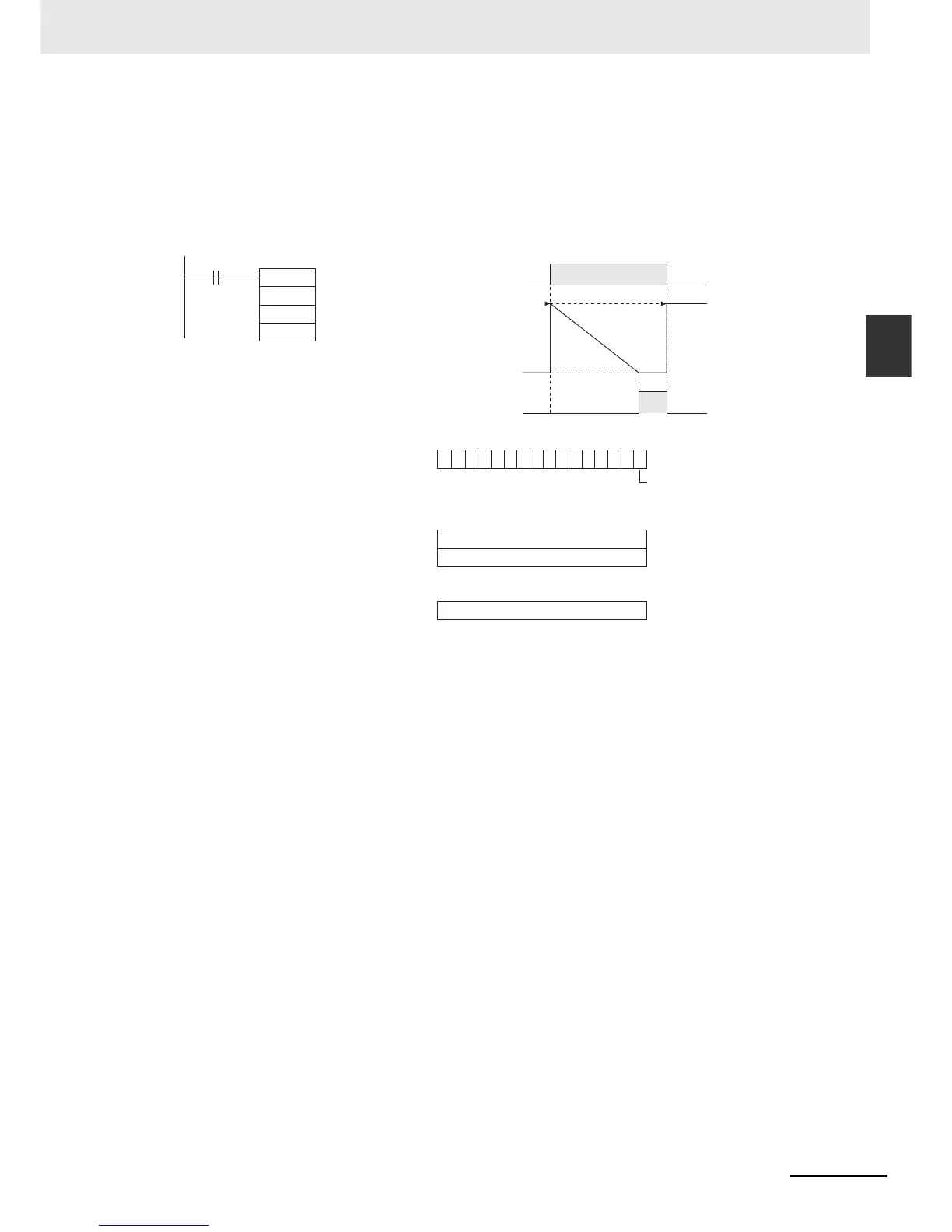

Sample program
When timer input CIO 0.00 is ON in the following example, the timer PV (in D201 and D200) will be set
to the SV (in D101 and D100) and the PV will begin counting down. The timer Completion Flag (CIO
200.00) will be turned ON when the PV reaches 0.
When CIO 0.00 goes OFF, the timer PV will be reset to the SV and the Completion Flag will be turned
OFF.
TIML
200
D100
D200
0.00
ON
OFF
0
ON
OFF
D1
D2
S
D1:200
0123456789101112131415
D2:D100
D101
015
D200D201
#0010 #0000
(CIO 0200.00)
Timer SV
S: D200 and up
S+1: Content of D201
1000.00
Timer input
Timer PV
(D101 and D100)
Timer Completion
Flag
(CIO 200.00)
Timer SV:
(100,000 decimal= 10,000 s)
Timer’s PV (LSB)
Timer’s PV (MSB)
Timer Completion
Flag
