2-111
2 Instructions
CP1E CPU Unit Instructions Reference Manual(W483)
Data Movement Instructions
2

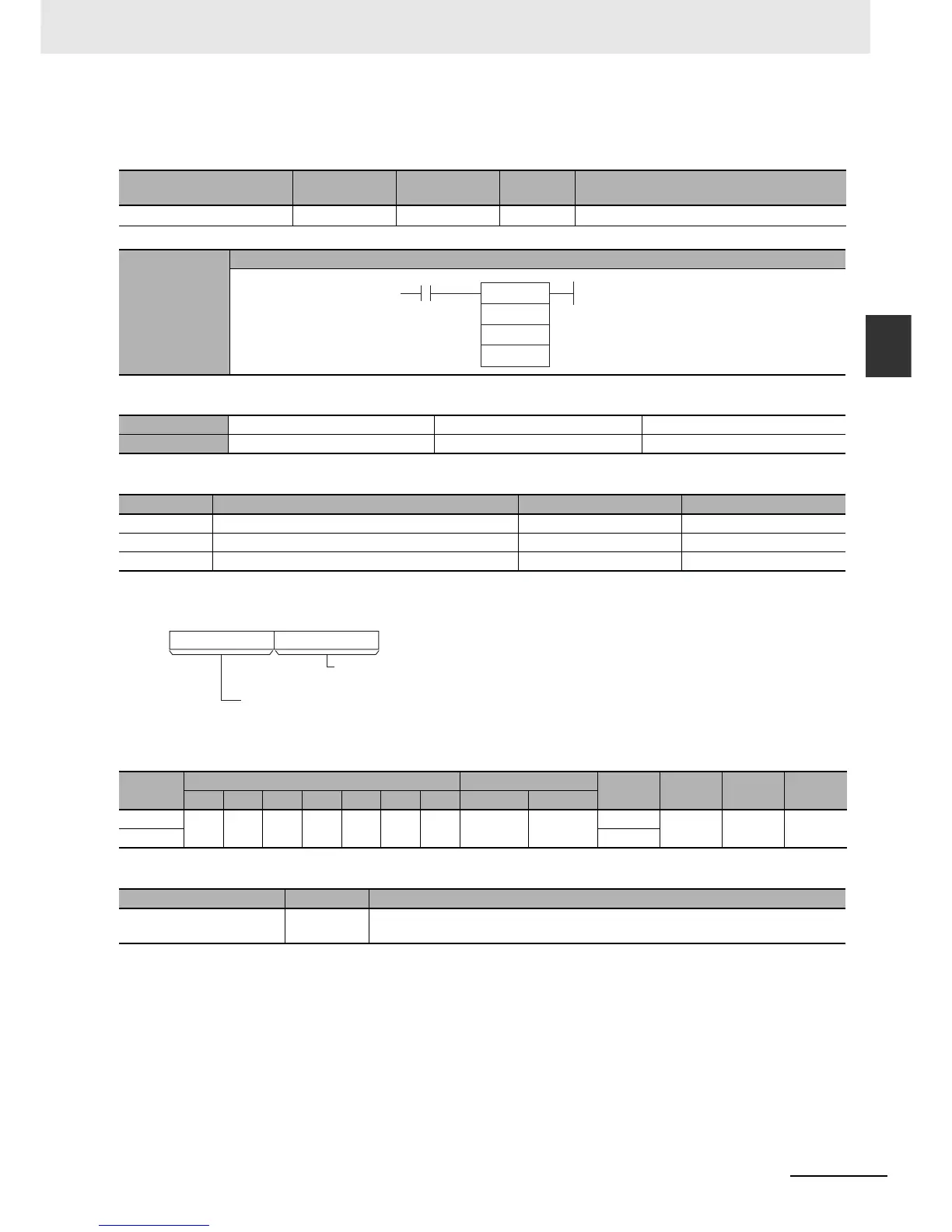

MOVB
MOVB
Applicable Program Areas
Operands
C: Control Word
 Operand Specifications
Flags
Instruction Mnemonic Variations
Function
code
Function
MOVE BIT MOVB @MOVB 082 Transfers the specified bit.
Symbol
MOVB
Area Step program areas Subroutines Interrupt tasks
Usage OK OK OK
Operand Description Data type Size
S Source word or data WORD 1
C Control word UINT 1
D Destination word WORD 1
Area
Word addresses Indirect DM addresses
Constants CF Pulse bits TR bits
CIO WR HR AR T C DM @DM *DM
S, C
OK OK OK OK OK OK OK OK OK
OK
--- --- ---
D ---
Name Label Operation
Error Flag P_ER • ON if the rightmost and leftmost two digits of C are not within the specified range of 00 to 0F.
• OFF in all other cases.
MOVB(082)
S
C
D
S: Source word or data
C: Control word
D: Destination word
Cm n
Source bit: 00 to 0F
(0 to 15 decimal)
Destination bit: 00 to 0F
(0 to 15 decimal)
07815
