Omron SYSMAC CP Series Instruction & Reference Manual

2-7
2 Instructions
CP1E CPU Unit Instructions Reference Manual(W483)
Sequence Input Instructions
2

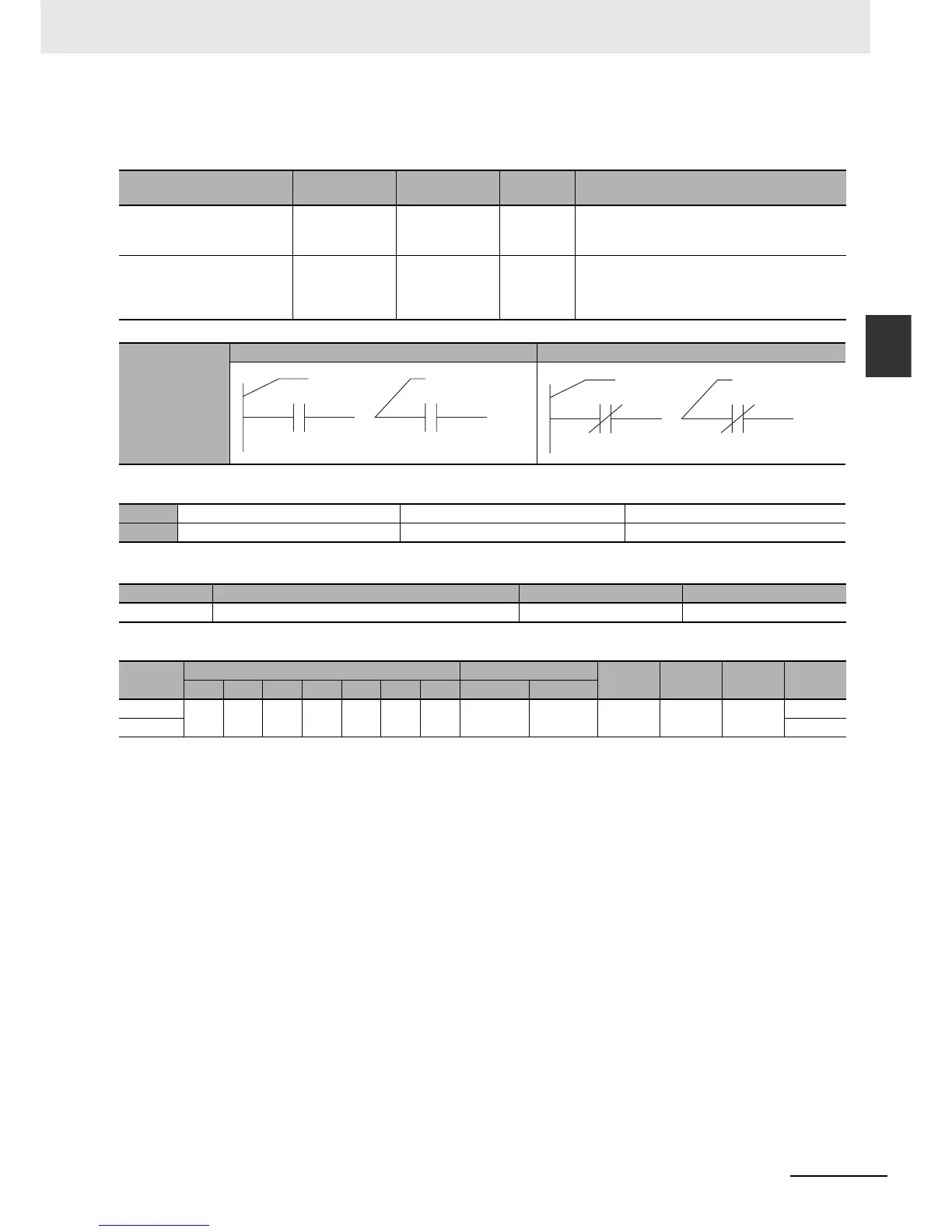

LD/LD NOT
LD/LD NOT
Applicable Program Areas
Operands
 Operand Specifications
Flags
There are no flags affected by this instruction.
Function
 LD
LD is used for the first normally open bit from the bus bar or for the first normally open bit of a logic
block. If there is no immediate refreshing specification, the specified bit in I/O memory is read. If there is
an immediate refreshing specification, the status of the CPU Unit’s built-in input terminal is read and
used.
 LD NOT
LD NOT is used for the first normally closed bit from the bus bar, or for the first normally closed bit of a
logic block. If there is no immediate refreshing specification, the specified bit in I/O memory is read and
reversed. If there is an immediate refreshing specification, the status of the CPU Unit’s built-in input ter-
minal is read, reversed, and used.
Instruction Mnemonic Variations
Function
code
Function
LOAD LD
@LD, %LD, !LD,
!@LD, !%LD
---
Indicates a logical start and creates an ON/OFF
execution condition based on the ON/OFF status
of the specified operand bit.
LOAD NOT LD NOT
@LD NOT, %LD
NOT, ! LD NOT,
!@LD NOT, !%LD
NOT
---
Indicates a logical start and creates an ON/OFF
execution condition based on the reverse of the
ON/OFF status of the specified operand bit.
Symbol
LD LD NOT
Area Step program areas Subroutines Interrupt tasks
Usage OK OK OK
Operand Description Data type Size
--- --- BOOL ---
Area
Word addresses Indirect DM addresses
Constants CF Pulse bits TR bits
CIO WR HR AR T C DM @DM *DM
LD
OK OK OK OK OK OK
---
--- --- --- OK OK
OK
LD NOT ---
Bus bar Starting point of block
Bus bar Starting point of block
