• Be sure that the time interval is longer than the time required to execute the scheduled interrupt task.
• To accurately control the time to the first interrupt and the interrupt interval, program CLI(691) to set
the time to the first schedule interrupt just before programming MSKS(690). If MSKS(690) is used to
restart a schedule interrupt, however, the time to the first scheduled interrupt will be accurate even if
CLI(691) is not used.
• During the execution of a scheduled interrput, the scheduled interrupt set time cannot be changed.
Please change the scheduled interrupt set time after disable interrupt (stop internal timer) is set with
MSKS instruction.

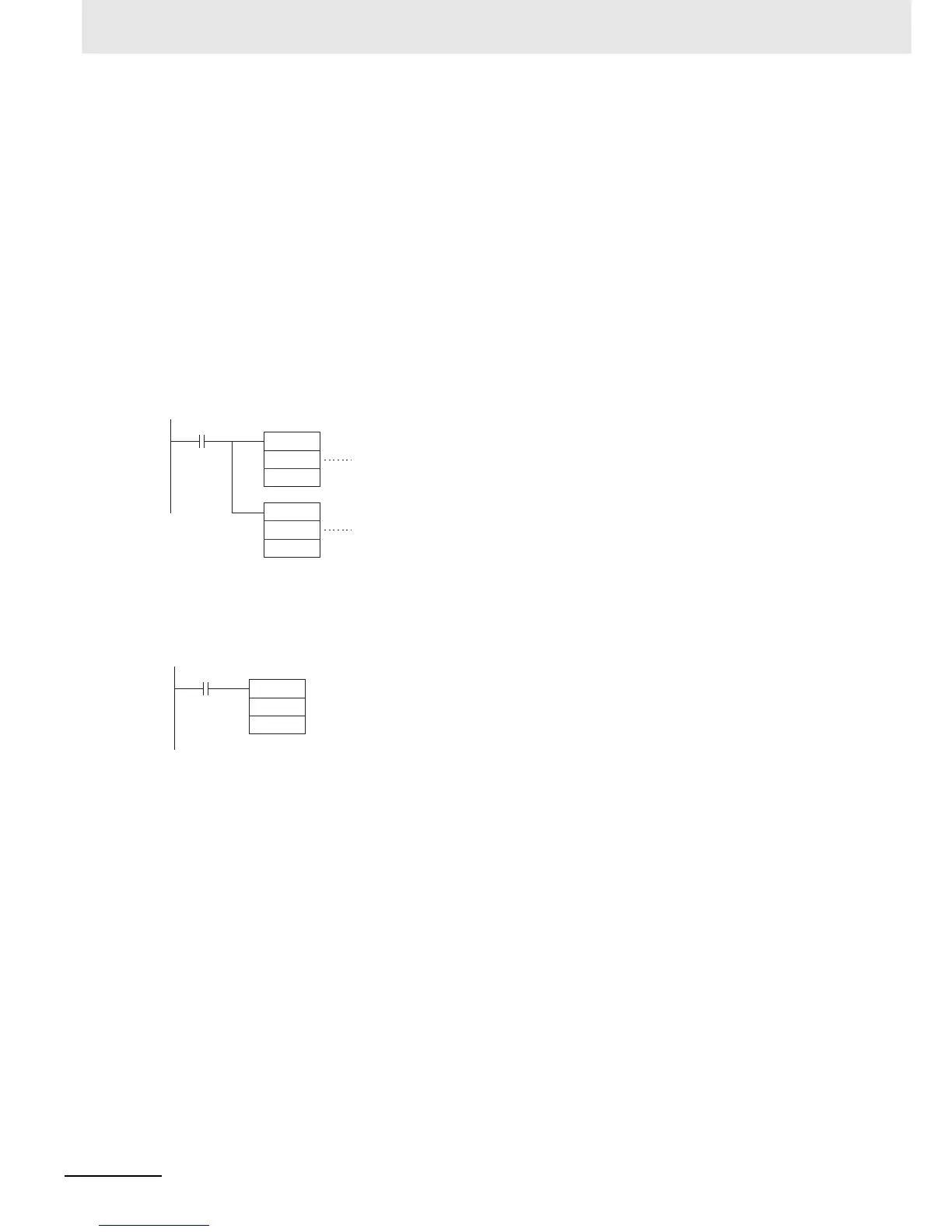

Sample program
Examples for Input Interrupts
When W0.00 turns ON in the following example, the first MSKS(690) (1) specifies generating input
interrupts for input interrupt 3 when the interrupt input turns ON and the second MSKS(690) (2)
unmasks the interrupt.
Example for Scheduled Interrupts
When W0.01 turns ON in the following example, MSKS(690) sets the schedule interrupt interval for
schedule interrupt 0 to 10.5 ms (assuming the unit is set to 0.1 ms in the PLC Setup), resets the internal
timer, and starts the internal timer.
W0.00
N
S
MSKS
113
#0000
MSKS
103
#0000
N
S
(1)
(2)
MSKS
14
&105
W0.01
N
S
