CP1E CPU Unit Instructions Reference Manual(W483)

 Output example

* Parity bit - changes according to the parity specification.

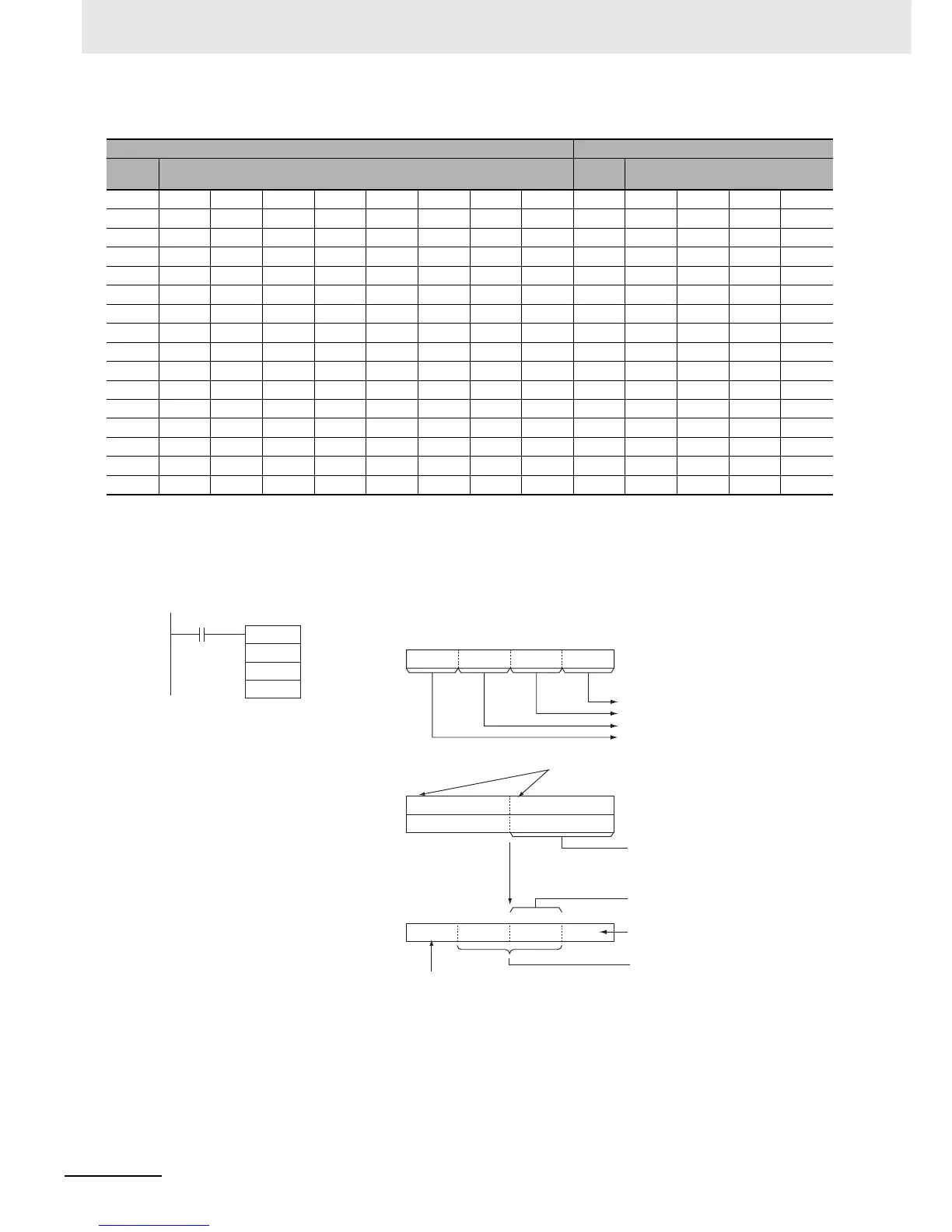

When CIO 0.00 is ON in the following example, HEX(162) converts the ASCII data in D10 beginning

with the rightmost byte and writes the hexadecimal equivalents in D300 beginning with digit 1.

The digit designator setting of #1011 specifies even parity, the starting byte (when reading) = rightmost

byte, the number of bytes to read = 2, and the starting digit (when writing) = digit 1.)

Conversion data Output result (hex data)

ASCII

code

(MSB) bit content (LSB) Value Bit content

#30*011000000000

#31*011000110001

#32*011001020010

#33*011001130011

#34*011010040100

#35*011010150101

#36*011011060110

#37*011011170111

#38*011100081000

#39*011100191001

#41*1000001A1010

#42*1000010B1011

#43*1000011C1100

#44*1000100D1101

#45*1000101E1110

#46*1000110F1111

Number of bytes (2 bytes)

Starting digit (digit 1)

Parity bits: Result in even parity

Not changed

Conversion

Parity: Even

Starting byte: rightmost

Starting digit in D: Digit 1

Number of bytes: 2

Starting byte in S: Rightmost

HEX

D10

#1011

D300

0.00

0347815 12 11

1101

D: D300

015

S: D100

1100001110111000

3843
