Omron SYSMAC CP Series Instruction & Reference Manual

2-275
2 Instructions
CP1E CPU Unit Instructions Reference Manual(W483)
Data Control Instructions
2
TPO

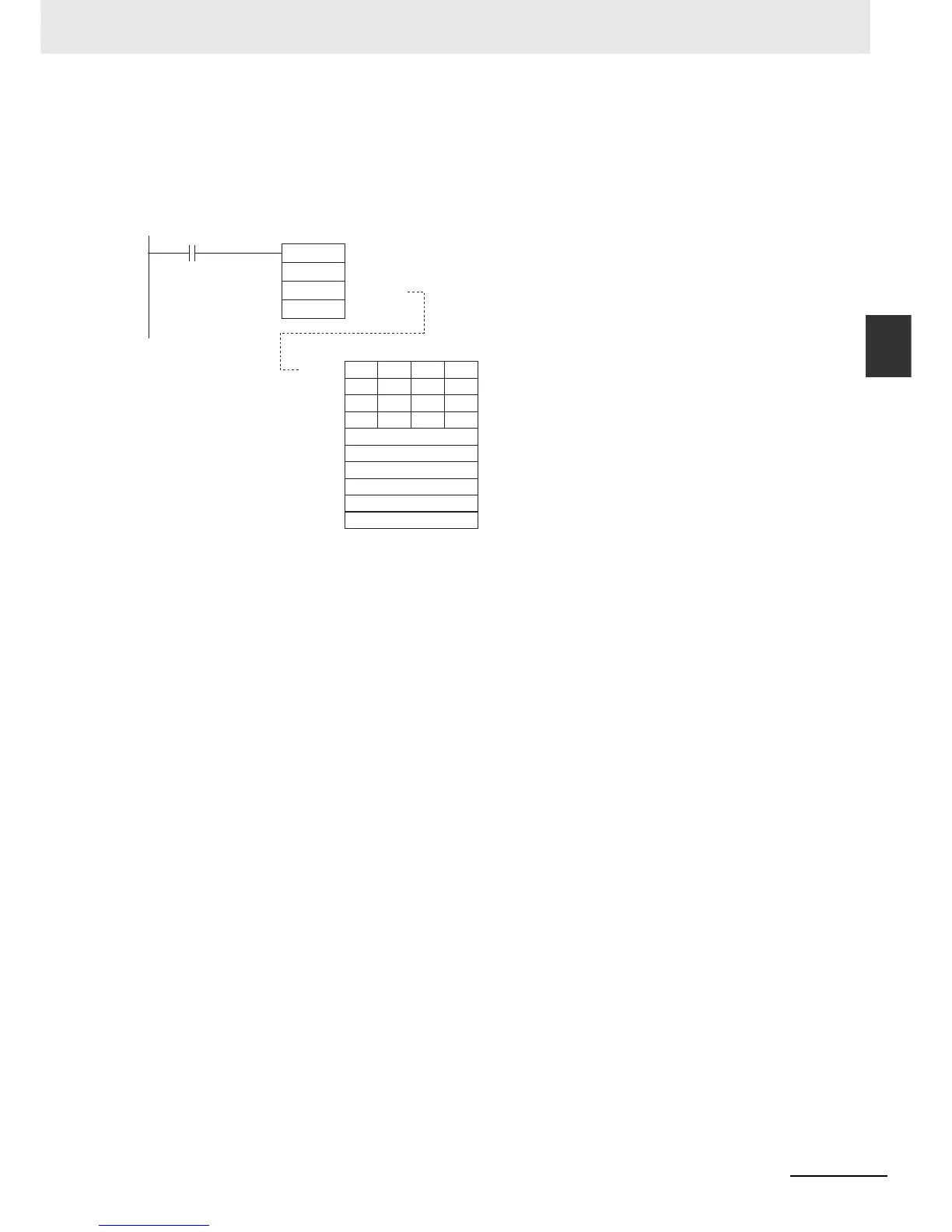

 Using TPO(685) Alone
When CIO 0.00 is ON, TPO(685) takes the duty ratio in D10, converts the duty ratio to a time-propor-
tional output, and outputs the pulses to bit 00 of CIO 100.
In this case, the control period is 1 s and the output limit function is enabled with a lower limit 20.00%
and an upper limit of 80.00%.
0.00
TPO
D10
D0
100.00
S
C
R
D0
D1
D2
D3
D4
D5
D6
:
:
D10
0
4
0
0
0
6
D
4
1
0
7
F
1
0
0
1
Duty ratio
Parameters
Pulse output
Duty ratio input, read initial value, and enable output limit function.
Control period = 1.00 s
Output lower limit = 20.00%
Output upper limit = 80.00%
0 to 100.00%
Do not set.
Do not set.
Do not set.
0 to 2710 hex
TPO(685) takes the duty ratio in D10, converts that duty
ratio to a time-proportional output, and outputs the pulse
output to bit 00 of CIO 100.
