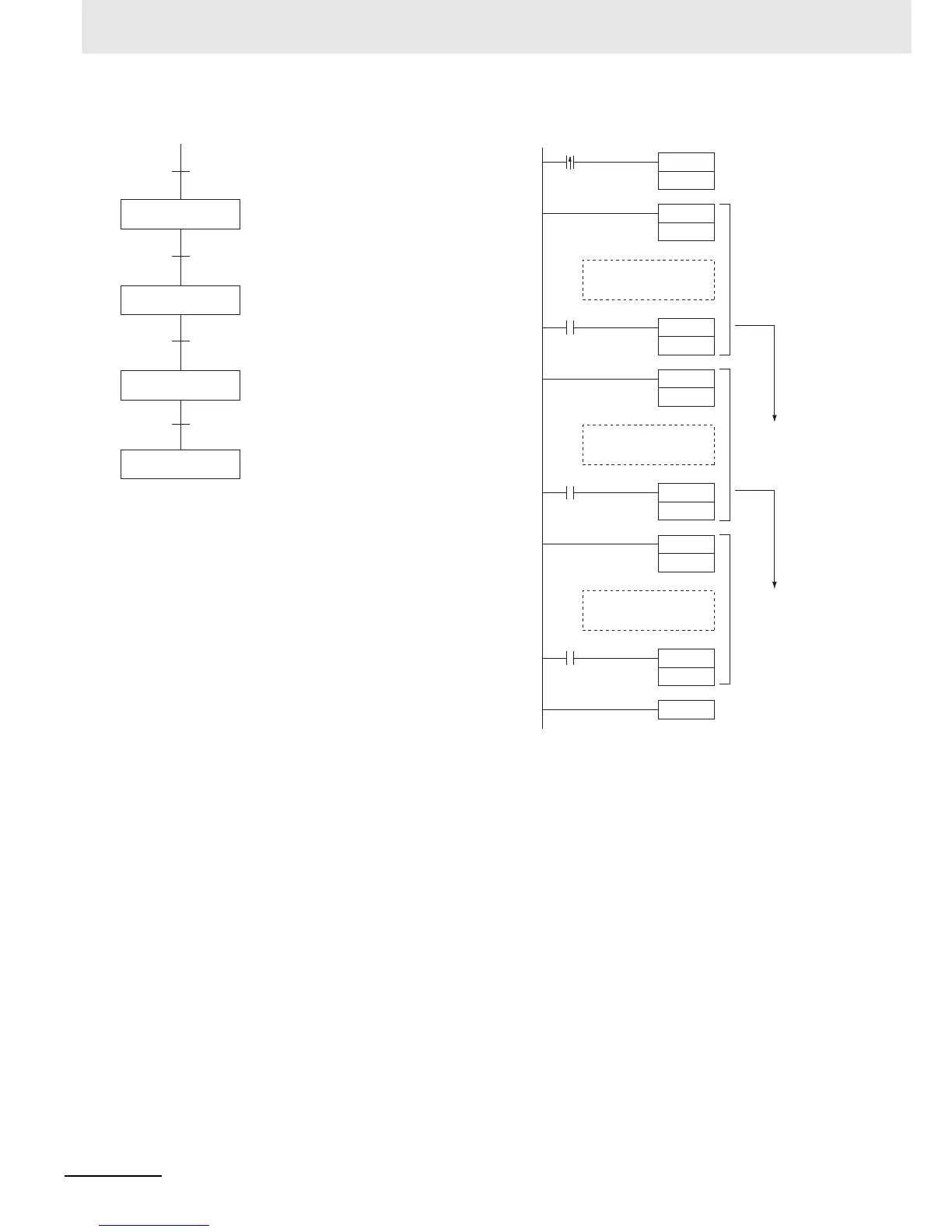

(1) Sequential Control
Step (A) W0.00
Step (B) W0.01
Step (C) W0.02
End
0.01 (Step (A) starting condition)
0.02 (Step (A) → Step (B) transition condition)
0.03 (Step (B) → Step (C) transition condition)
0.04 (Step (C) reset conditions)
Step W0.00 (A)
Step W0.01 (B)
Step W0.02 (C)
Step (C) ladder program
Step (B) ladder program
Step (A) ladder program
STEP
W0.00
SNXT
W0.00
STEP
W0.01
SNXT
W0.01
SNXT
W0.02
STEP
W0.02
STEP
0.01
0.02
0.03
0.04
SNXT
W30.0
