Flat-blad
e screwdriver

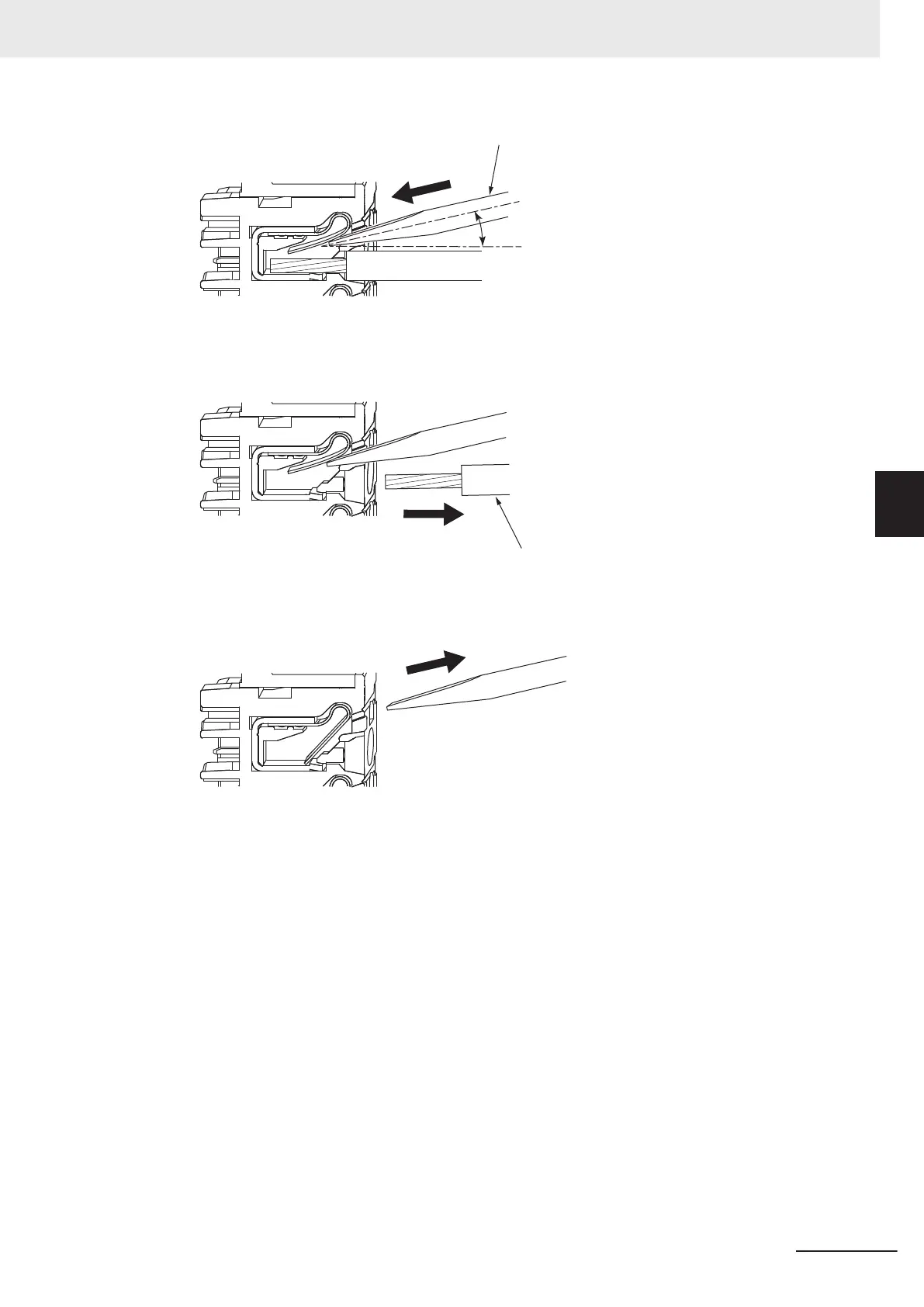

2 Insert the flat-blade screwdriver into the release hole and remove the wire from the terminal
hole.
2
Wire
3 Remove the flat-blade screwdriver from the release hole.
3
4 Installation and Wiring
4-53
NX-series System Units User's Manual (W523)
4-9 Wiring the Terminals
4
4-9-1 Wiring to the Screwless Clamping Terminal Blocks
