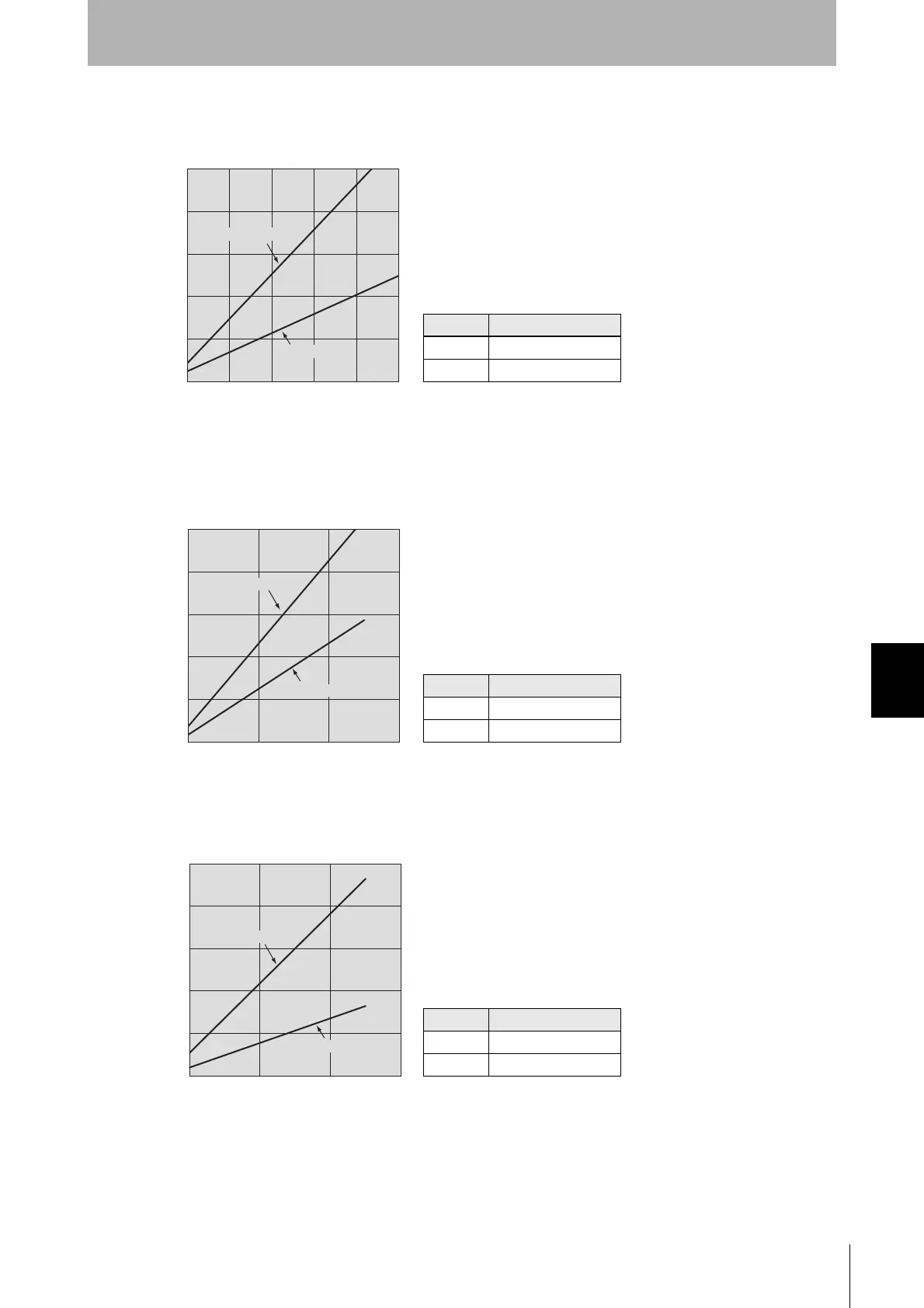

Section 7 Characteristics According to Application Conditions
Section 7
Appendix
157
 Data Carriers with Built-in Batteries (Reference)
● TAT
Calculations
 Data Carriers without Built-in Batteries (Reference)
1)Communications Distance Priority Mode (SW4 Pin 1 OFF)
● TAT
Calculations
2)Communications Time Priority Mode (SW4 Pin 1 ON)
● TAT
Calculations
TAT (m s)
Reading T=2.9N+69.8
Writing T=5.3N+105.6
N: No. of bytes processed
TAT ( mi sc .)
Reading T=5.4N+85.4
Writing T=9.8N+184.9
N: No. of bytes processed
TAT ( mi sc .)
Reading T=2.9N+99.1
Writing T=8.2N+272.9
N: No. of bytes processed
Note 1. TAT data is for a V600-CA5D02 ID Controller using a baud rate of 9600 bps, 8-bit data, 1
stop bit, and odd parity. Characters are sent continuously with no interruptions.
2. The number of bytes of TAT data is for ASCII data.
0 50 100 150 200 250
0
200
400
600
800
1000
(AUTO) WRITE
(AUTO) READ
No. of bytes processed (bytes)
TAT (ms)
No. of bytes processed (bytes)
0 100 200 300
0
500
1000
1500
2000
2500
(AUTO) WRITE
(AUTO) READ
TAT (ms)
No. of bytes processed (bytes)
0 100 200 300
0
500
1000
1500
2000
2500
0 100 200 300
(AUTO) WRITE
(AUTO) READ
TAT (ms)

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
