Section 3 Test Operation
RFID System
Operation Manual
Section 3
Preparing Communications
Offline Tests in MAINTENANCE Mode
In MAINTENANCE mode, communications between the ID Controller and Data Carriers can be tested
without connecting to the host device.
Use offline testing to check installation positions before performing test operations.
Testing Host Device Communications
The TEST command can be used to test communications between the ID Controller and host device.
This enables checking cable connections and communications processing before testing the operation
of the entire system.
1. Create a simple communications program on the host device to send the TEST command (TS).
If communications function properly, the ID Controller will send back the received data.
Refer to TEST Command (TS) for more information on the TEST command.
p.125
■ Example for 1:N Communications
The following command and response are for sending the test data "OMRON" to the ID Controller with
controller number 2.
A Command sent.
B Response received.

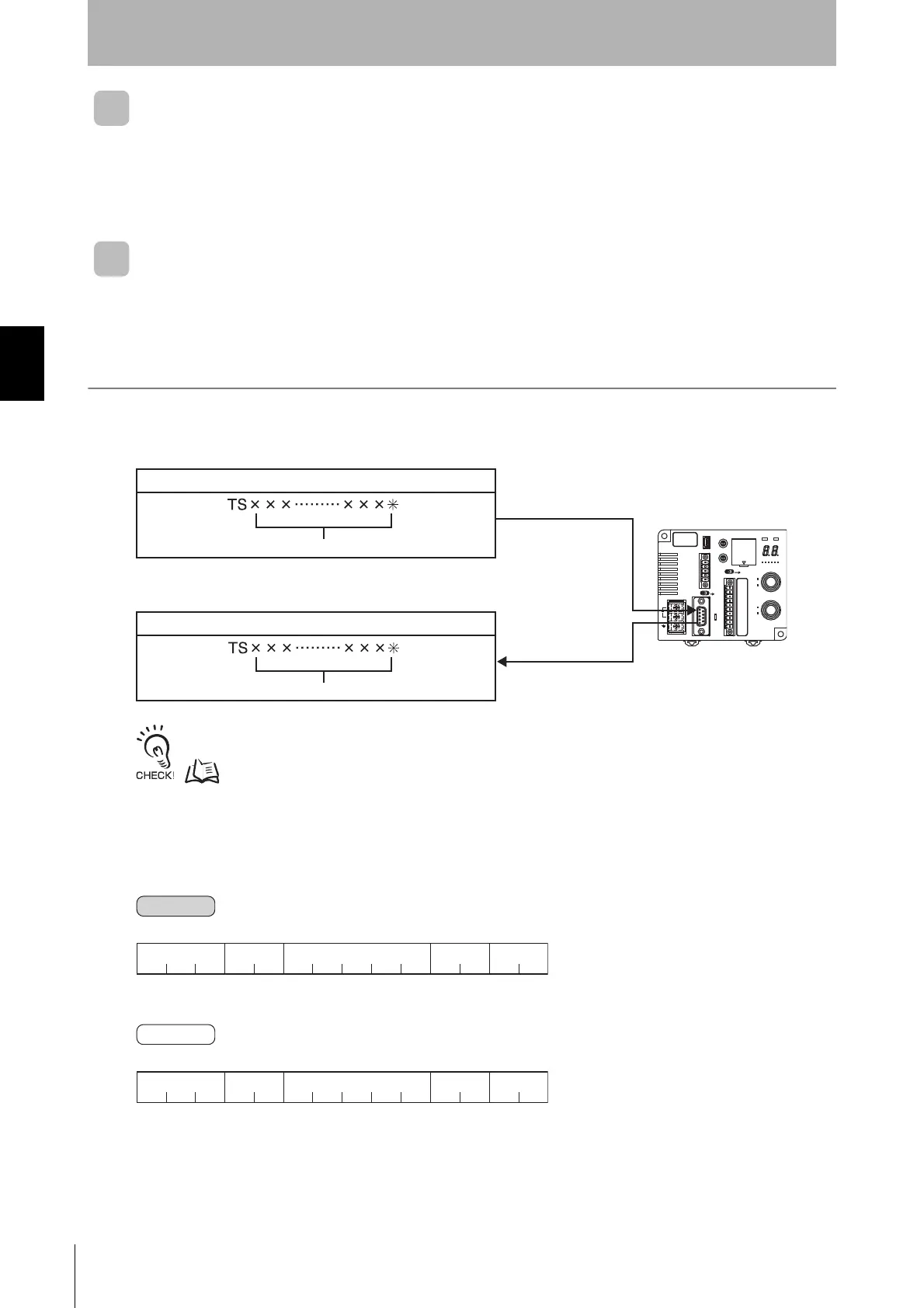

Host Device Test Command
Test data: 262 characters max.
Host Device Response
Test data in response
Command
Command code
TS
MR
ON
2
2
*CR
Terminator
14
FCS
0 2@
3
Controller No.
2
O
5
Test data
Response
Command code
TS
MR
ON
2
2
*CR
Terminator
14
FCS
0 2@
3
Controller No.
2
O
5
Test data

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
