Onkyo TX-SR653E

18

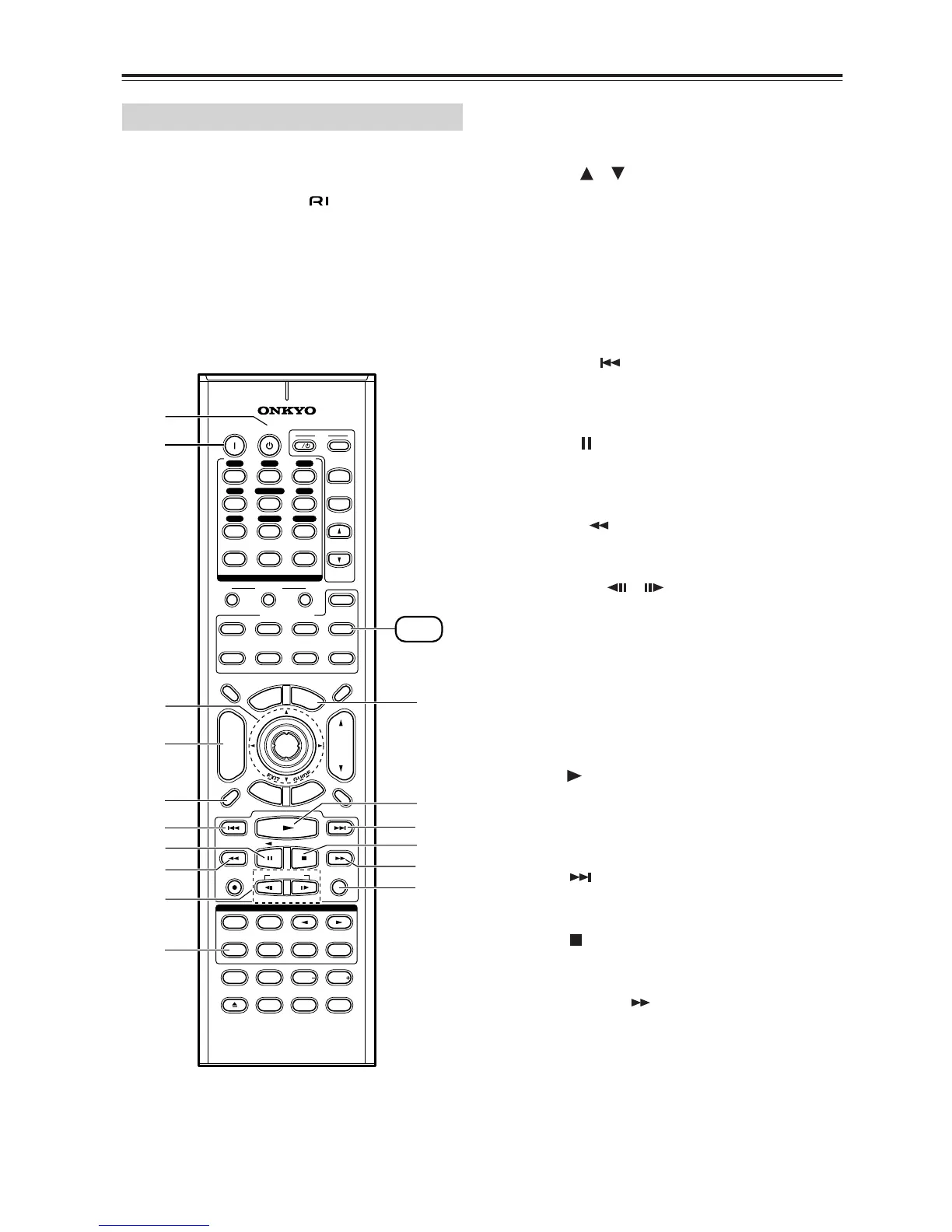

Remote Controller—Continued
HDD mode is for controlling Onkyo’s next generation
HDD-compatible components. As of 2005, it can be
used with the Onkyo DS-A1 Remote Interactive Dock
and Apple iPod connected via .
When Using the DS-A1:
• Connect the DS-A1 to the TAPE IN or VIDEO 3 IN
jacks.
• Set the DS-A1’s RI MODE switch to HDD.
• Set the AV receiver’s input display to HDD (see
page 51).
• Refer to the DS-A1’s instruction manual.
A STANDBY button
This button turns off the HDD-compatible compo-
nent.
B ON button*
This button turns on the HDD-compatible compo-
nent.
C Arrow [ ]/[ ] and ENTER buttons*
These buttons are used to navigate menus on the
HDD-compatible component.
D ALBUM +/– button*
This button selects the next or previous album on
the HDD-compatible component.
E DISPLAY button*
This button turns on the backlight for 30 seconds on
the HDD-compatible component.
F Previous [ ] button
This button restarts the current song on the HDD-
compatible component. Press it twice to select the
previous song.
G Pause [ ] button
This button pauses playback on the HDD-compati-
ble component. (With 3rd generation iPods, it
works as a Play/Pause button.)
H Rewind [ ] button
Press and hold to rewind the HDD-compatible com-
ponent.
I PLAYLIST [ ]/[ ] buttons*
These buttons select the previous or next playlist on
the HDD-compatible component.
J REPEAT button*
This button sets the Repeat function to One, All, or
Off on the HDD-compatible component.
K MENU button*
This button is used to navigate menus on the HDD-
compatible component.
L Play [ ] button
This button starts playback on the HDD-compatible
component. If the component is off, it will turn on
automatically. (With 3rd generation iPods, this but-
ton works as a Play/Pause button.)
M Next [ ] button
This button selects the next song on the HDD-com-
patible component.
N Stop [ ] button
This button stops playback and displays the menu
on the HDD-compatible component.
O Fast Forward [ ] button
Press and hold to fast forward the HDD-compatible
component.
P RANDOM button*
This button sets the Shuffle function to Songs,
Albums, or Off on the HDD-compatible compo-
nent.
* Buttons marked with an asterisk (*) are not supported by
3rd generation iPods.
HDD Mode
10
--/---
11 12
REMOTE MODE
HDD RECEIVER
TAPE/AMP
DVD CD
ZONE2
SAT TV VCR CABLE
MDCDR
STEREO SURR
DIRECT
SUBTITLEAUDIO
ALLST
PLAY MODE
VIDEO OFF
REPEAT
RANDOMREC PLAYLIST
OPEN/CLOSE
CINE FLTR
+
-
T V CH
T
V VOL
ENTER
S
E
T
U
P
T
O
P
M
E
N
U
M
E
N
U
VOL
+
-
CH
DISPLAY
PREV
CH
DIMMER
SLEEP
MUTING
LISTENING MODE
INPUT SELECTOR
32
MACRO
1
+
10 0
CLEAR
12
3
456
789
INPUT
I
ON STANDBY
T
V
CD
V1 V2 V3
MULTI CH DVD
TUNER
DISC
ALBUM
V4
TAPE
TEST TONE CH SEL LEVEL LEVEL
L NIGHT
R
E
T
U
R
N
RC-623M
B
M
F
5
C
D
A
O
N
P
G
8
9
J
HDD
L
K
