28
Connecting the AV Receiver—Continued
■ Using a Multichannel Connection
If your DVD player supports multichannel audio formats
such as DVD-Audio, and it has a 5.1-channel analog
audio output, you can enjoy DVD-Audio playback.

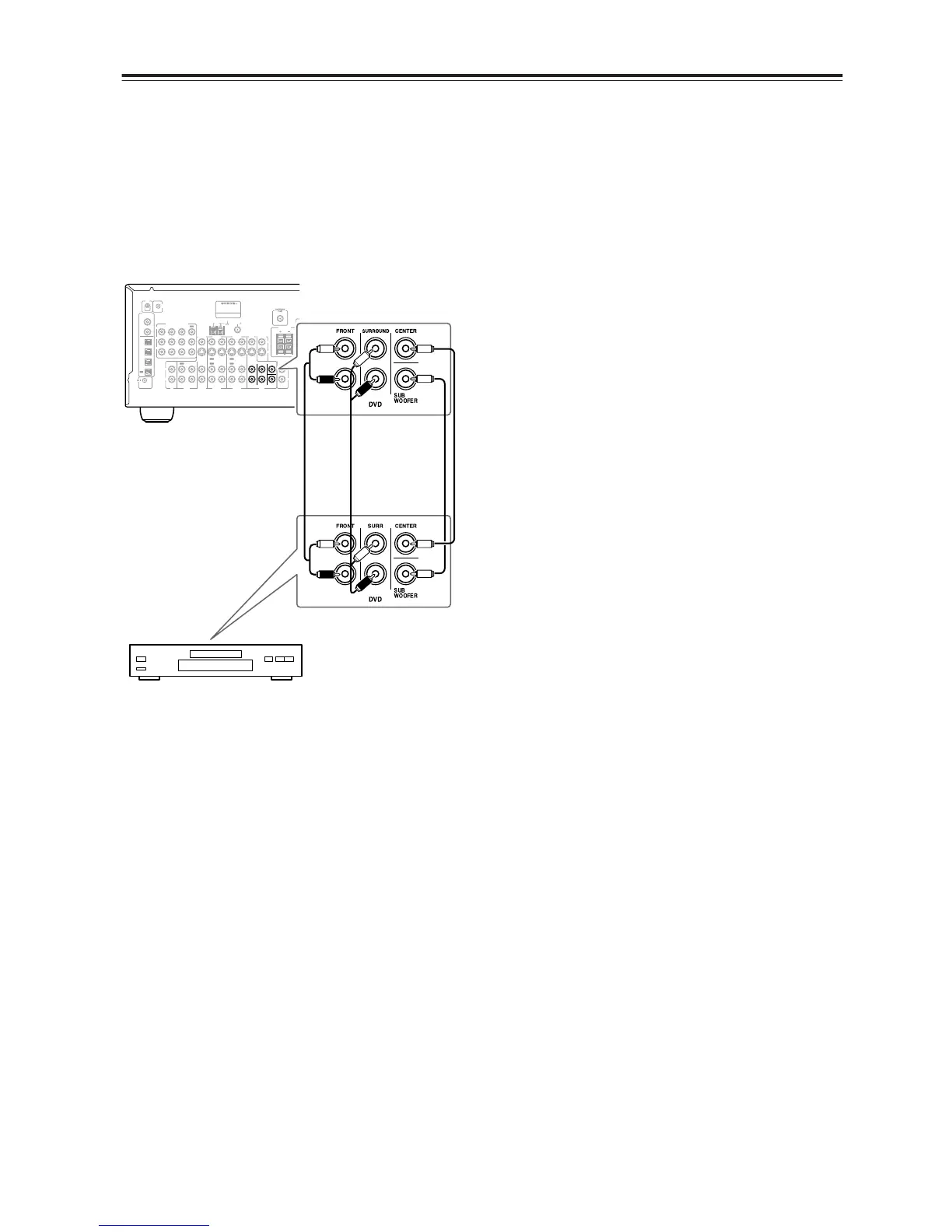

Use a multichannel analog audio cable to connect the AV
receiver’s DVD IN FRONT L/R, CENTER, SUR-
ROUND L/R, and SUBWOOFER jacks to the 5.1-
channel analog audio output on your DVD player, as
shown. Alternatively, use several analog audio cables.
ZONE 2
SPEAKERS
AV RECEIVER
MODEL NO. TX
-
SR
653E
L
R
FRONT
SURROUND
CENTER
CD
VIDEO 3
VIDEO 3
VIDEO 2
VIDEO 2
VIDEO 1
VIDEO 1
IN
OUT
OUT
ININ
OUT
OUT
TAP E
SUB
WOOFER
MONITOR
OUT
COAXIAL
OPTI
-
CAL
DVD
DVD
ININININ
OUT
OUT
IN IN
R
L
R
L
IN 1
IN 1
IN 2
IN 1
IN 2IN 3
OUT
COMPONENT VIDEO
REMOTE
CONTROL
IN 2
IN 3
DIGITAL
V
S
P
B
Y
P
R
IR IN
12 V
TRIGGER
OUT
ZONE 2
ANTENNA
FM
75
AM
P
To Next Page
