Instruments and controls 87
If a communication problem has
occurred with the energy system, the
error message is displayed. In this
case, please try restarting the vehicle
or contact a workshop.

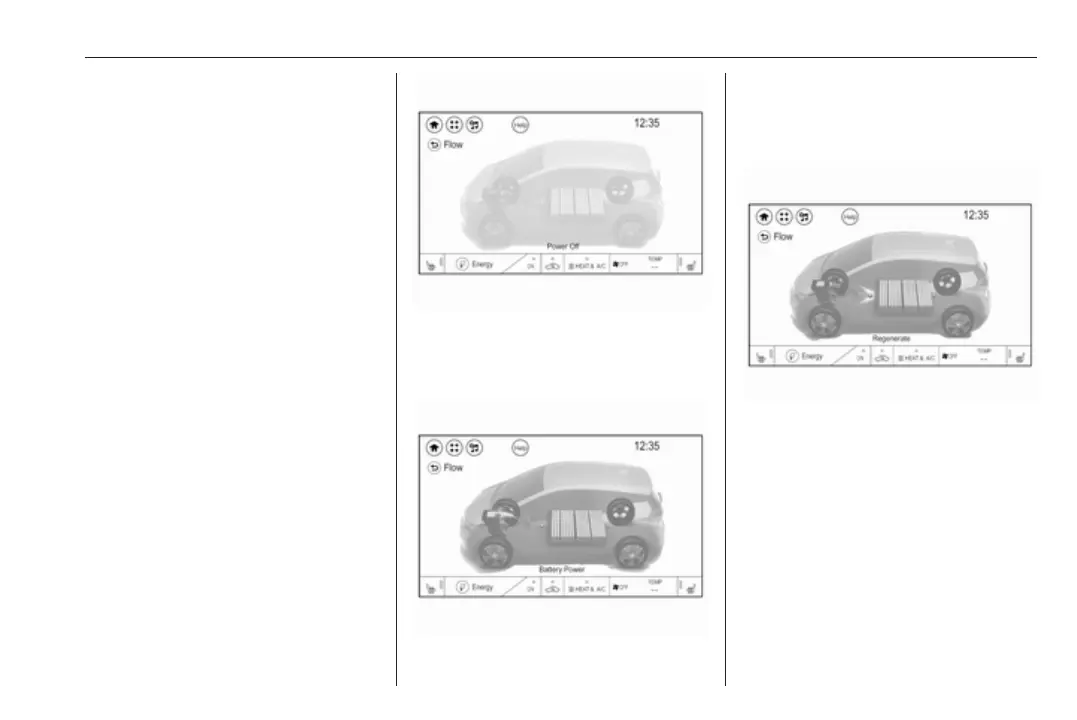

Flow
This menu displays energy flow
between the electric drive unit and the
high voltage battery.
1. Touch Energy.
2. Touch Flow.
The components will be highlighted
when they are active.
Power off
No power is flowing to the wheels.
The high voltage battery scale colour
is greyed out.
Power
The arrow indicates from high voltage
battery to wheel.
Regenerate
Power from the wheels returns to the
high voltage battery during
regenerative braking or coasting.
High voltage battery power
High voltage battery power is active
with energy flowing to the wheels or
no power is flowing to the wheel when
vehicle is stationary.
