Opticon
OPR 2001
S
pecifications Manual
14
Resolution Symbology
PCS
Quiet
Zone
Digits
1.0 mm
Code 39
0.9
25 mm
1
0.5 mm
Code 39
0.9
18 mm
3
0.25 mm
Code 39
0.9
10 mm
8
0.15 mm
Code 39
0.9
7 mm
10
0.127 mm
Code 39
0.9
5 mm
4
7.4.

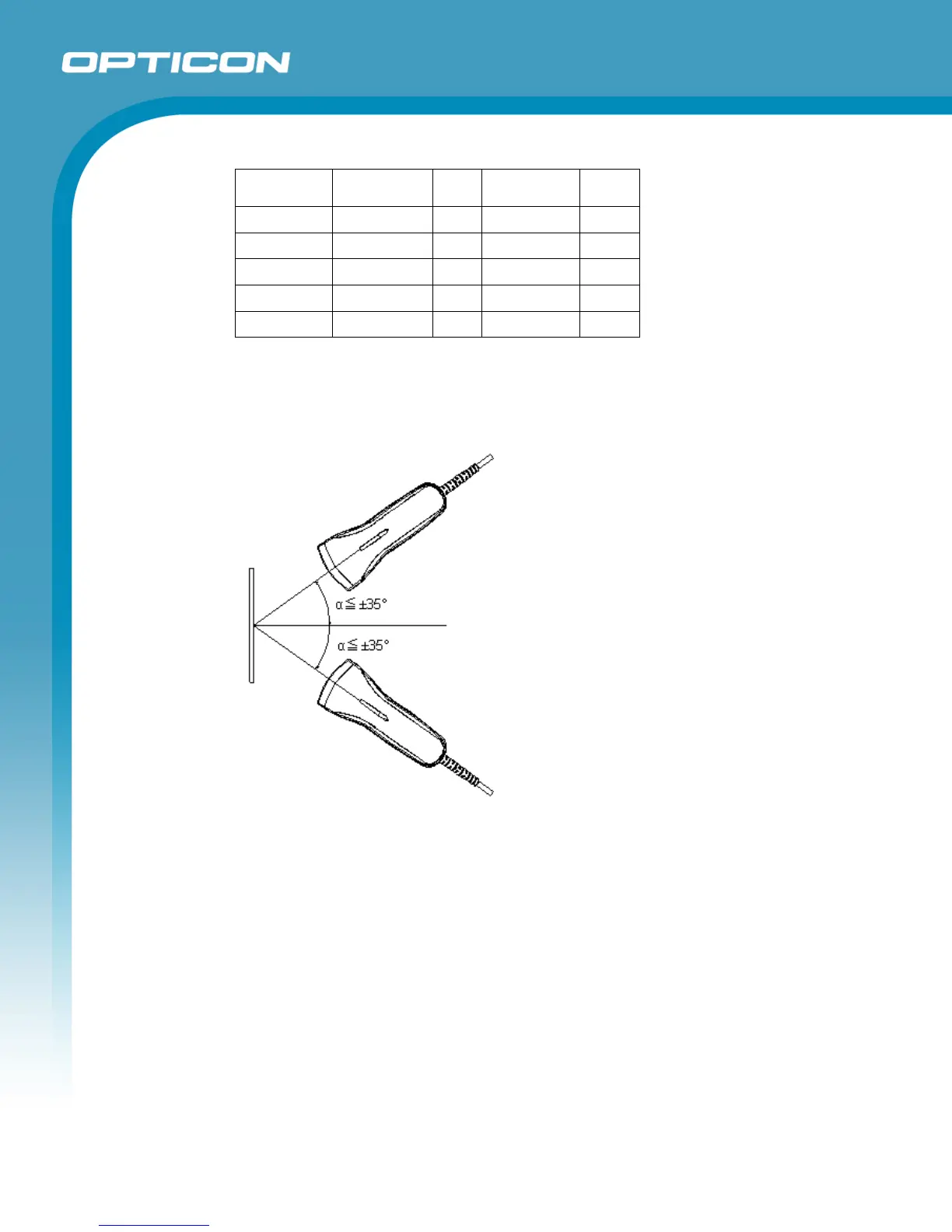

Pitch, Skew, and Tilt
7.4.1.
Pitch Angle
Scanning performance is guaranteed when
α
= ±35°
Figure 4: Pitch
13
15
Table of Contents
Default Chapter
2
Document History
2
Table of Contents
3
1 Abstract
7
2 Overview
7
3 Physical Features
8
Dimensions
8
Weight
8
4 Environmental Specifications
8
Operating Temperature and Humidity
8
Storage Temperature and Humidity
8
Ambient Light Immunity
9
Figure 1: Ambient Light Immunity
9
5 Electrical Specifications
10
Electrical Characteristics: RS-232C
10
Electrical Characteristics: USB, Wedge
10
6 Optical Specifications
11
Laser Scan Specifications
11
Tilt of Laser Scan Line
11
Curvature of Scan
11
7 Technical Specifications
12
Print Contrast Signal (PCS)
12
Minimum Resolution
12
Figure 2: Laser Scanning Tilt and Curvature
12
Scan Area and Resolution
13
Depth of Field
13
Figure 3: Depth of Field
13
Pitch, Skew, and Tilt
14
Pitch Angle
14
Figure 4: Pitch
14
Skew Angle and Dead Zone
15
Figure 5: Skew Angle and Dead Zone
15
Tilt Angle
16
Figure 6: Tilt Angle
16
Curvature
17
8 Interface Specifications
17
RS-232C Interface
17
Settings and Communication
17
Figure 7: Curvature
17
Signal Level
18
Pin Assignment
18
Interface Circuit
19
Character Format
19
Communication Format
19
Figure 8: Interface Circuit
19
Figure 9:Character Format (same for both Sending and Receiving)
19
Figure 10: Communication Format
19
Handshaking
20
Figure 11: no Handshaking
20
Figure 12: Busy/Ready Communication
21
Figure 13: Cannot Receive Command
21
Figure 14: Signal Timing
22
Figure 15: ACK/NAK
23
Figure 16: ACK/NAK-No Response
24
USB-HID and USB-VCP Interface Specifications
25
Settings
25
Interface Circuit
25
DOS/V Wedge Interface Specification
25
Figure 17: Interface Circuit
25
9 Cable and Connector
26
RS-232C Cable
26
USB Cable
26
Figure 18: RS-232C Cable
26
Figure 19: USB Cable
26
Connector
27
Pin Assignment
27
Wedge Cable
27
Figure 20: USB "A" Connector
27
Figure 21: Wedge Cable
27
Connectors
28
Figure 22: DOS/V Host Connector
28
Figure 23: DOS/V Keyboard Connector
28
Connector Specification (Scanner Side)
29
10 Default Settings
29
Set Default Interface
29
Default Settings 1: Readable Codes
31
Default Settings 2: Read Options, Trigger, Buzzer
32
11 Serial Number
33
12 Packaging Specifications
33
Individual Packaging Specification
33
Collective Packaging
33
Figure 24: Serial Number Diagram
33
13 Durability
34
Electrical Noise
34
Static Electricity
34
Shock
35
Drop Test (Without Packaging)
35
Drop Test (with Individual Packaging)
35
Vibration Strength
35
Dust and Drip Proof
35
Figure 25: Drop Test
35
Cable Strength
36
Cable Tail Bending Test
36
14 Reliability
36
Figure 26: Cable Tail Bending Test
36
15 Trigger and Read Options
37
Trigger Modes
37
Read Modes
37
Auto Trigger Options
38
Auto Trigger Sensor
38
Figure 27: Auto Trigger Operation
38
Figure 28: Trigger Options
39
16 Trigger and Read Settings
40
Enable/Disable Settings
40
Auto Trigger Stand Detection Settings
40
Stand Only
40
Always
41
Manually
41
17 Regulatory Compliance
42
Laser Safety
42
Product Safety
42
Emc
42
Rohs
42
18 Safety
43
Shock
43
Temperature Conditions
43
Foreign Materials
43
Other
43
19 Mechanical Drawing
44
Figure 29: Mechanical Drawing
44
