Opticon OPR 2001 User Manual

Opticon
OPR 2001
Specifications Manual
16

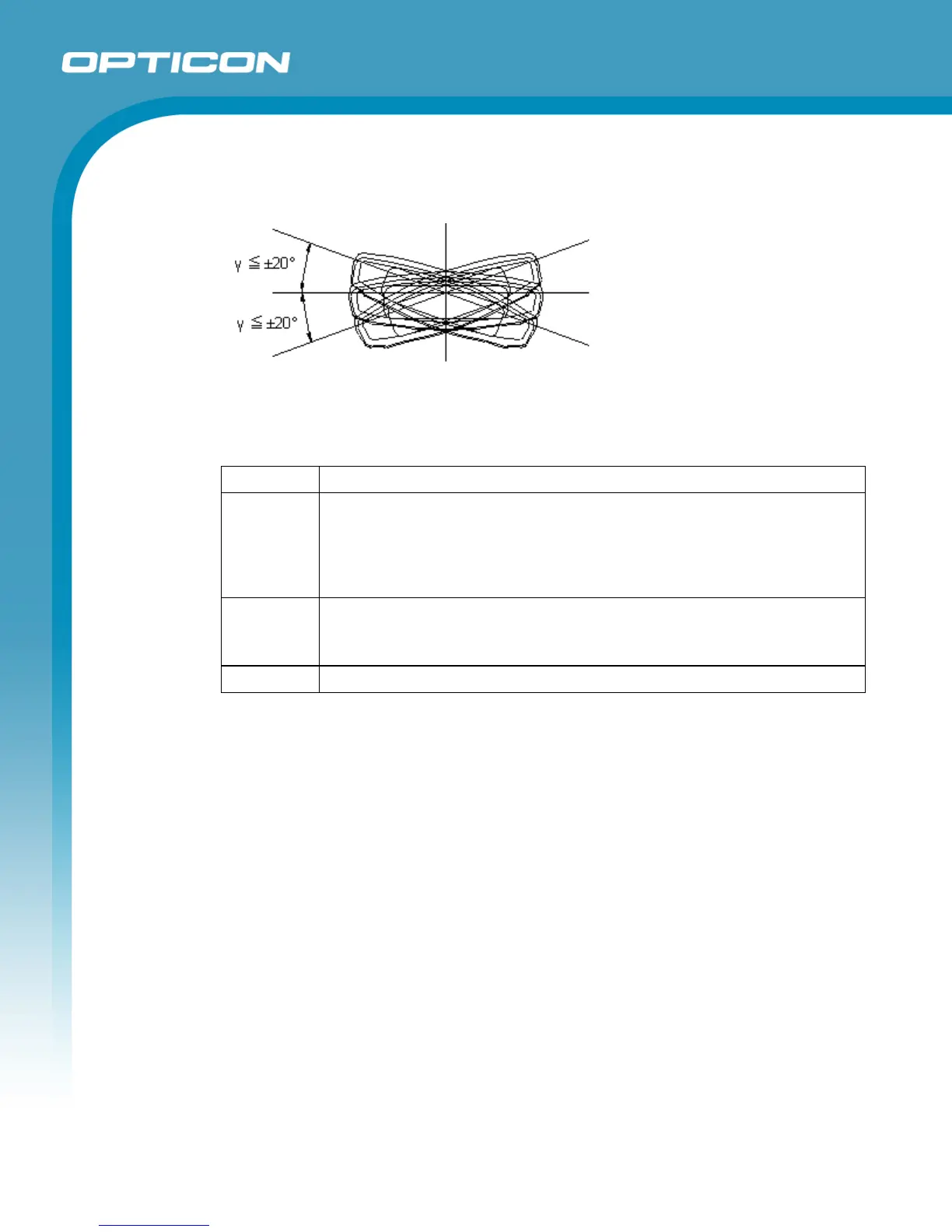

7.4.3. Tilt Angle
Scanning performance is guaranteed when γ ≤ ±20°
Figure 6: Tilt angle
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
Distance: 70 mm from the front edge of the scanner
Label:
Pitch, Skew Angle, Dead Zone
PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code 39,
Quiet Zone = 10 mm, N/W Ratio = 1:2.5
Tilt Angle
PCS = 0.9, Resolution = 0.26 mm, Symbology = 13-digit JAN, Quiet Zone = 10 mm
Angles:
Pitch angle: Skew angle: β = +15°, Tilt angle: γ = 0°
Tilt angle: Pitch angle: α = 0°, Skew angle: β = +15°
Skew angle, Dead zone: Pitch angle: α = 0°, Tilt angle: γ = 0°
Curvature: R = ∞
