OPTIKON ASSISTANT - Diathermy Power Characteristics

Assistant Service Manual
OPTIKON 2000
Code 121008S 2-5 Rev. D
2.1 DIATHERMY POWER CHARACTERISTICS
ANTARES

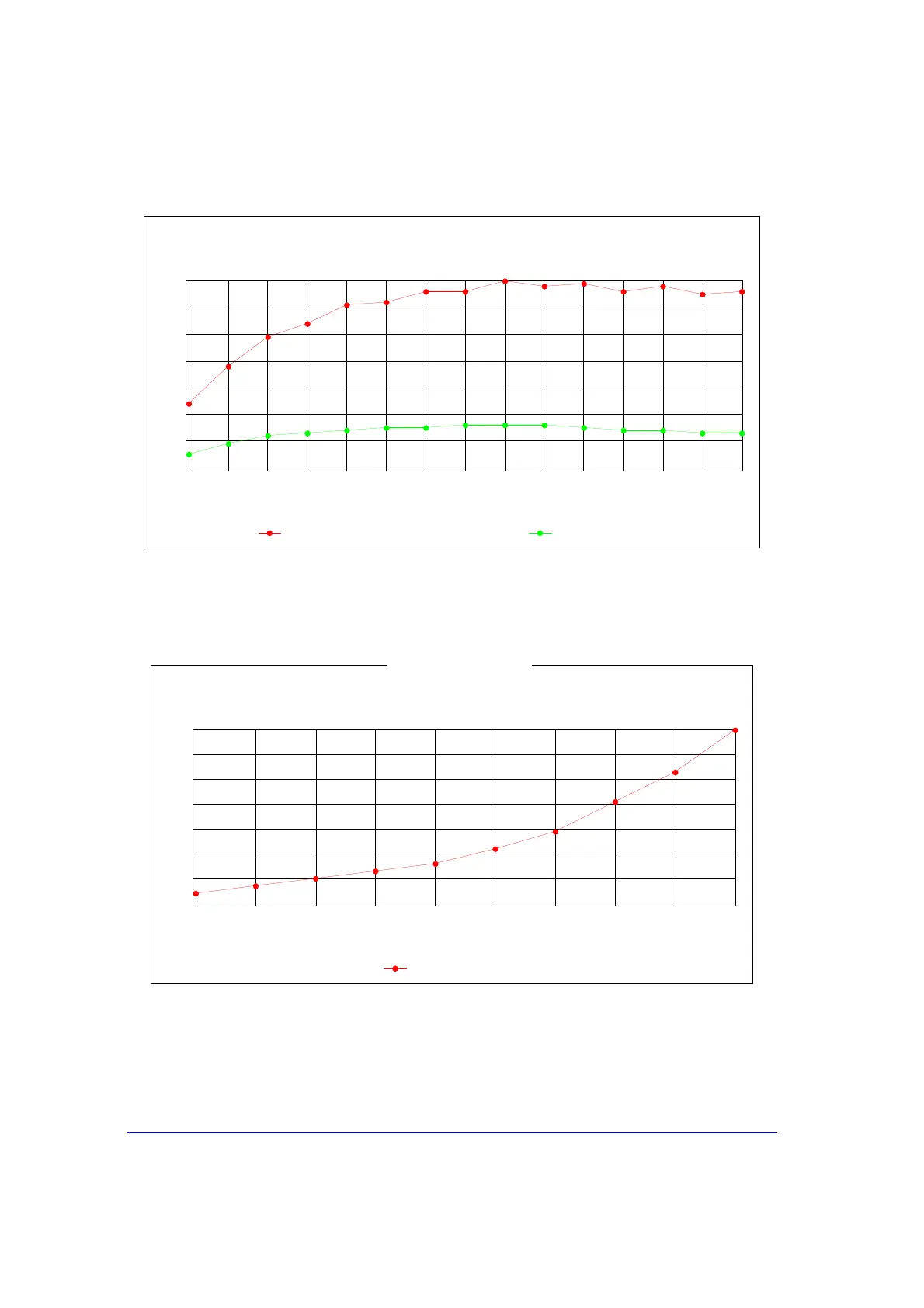

DIATHERMY POWER vs LOAD
0
1
2
3
4
5
6
7
50 100 150 200 250 300 350 400 450 500 550 600 650 700 750
W
a
t
t
Ohm
Preset=100% Preset=50%
Diathermy Power vs load
ANTARES
DIATHERMY POWER vs PRESET
0
1
2
3
4
5
6
7
10 20 30 40 50 60 70 80 90 100
W
a
t
t
Percent
Load=450 Ohm
Diathermy Power vs Preset
ASSISTANT
ASSISTANT
