Assistant Service Manual
OPTIKON 2000
Code 121008S 4-1 2009-07-24 Rev. C
4. GENERAL INFORMATION
4.1 EQUIPMENT LAYOUT
This section contains information on the equipment layout. All operating
controls and adjustments are identified and described further on. Sockets and
other elements on the front panel are described in Fig. 1. Left side (pump
side) of the equipment is described in Figure 2. Rear panel connectors are
identified in Fig. 3a and 3b.
4.1.1
FRONT VIEW

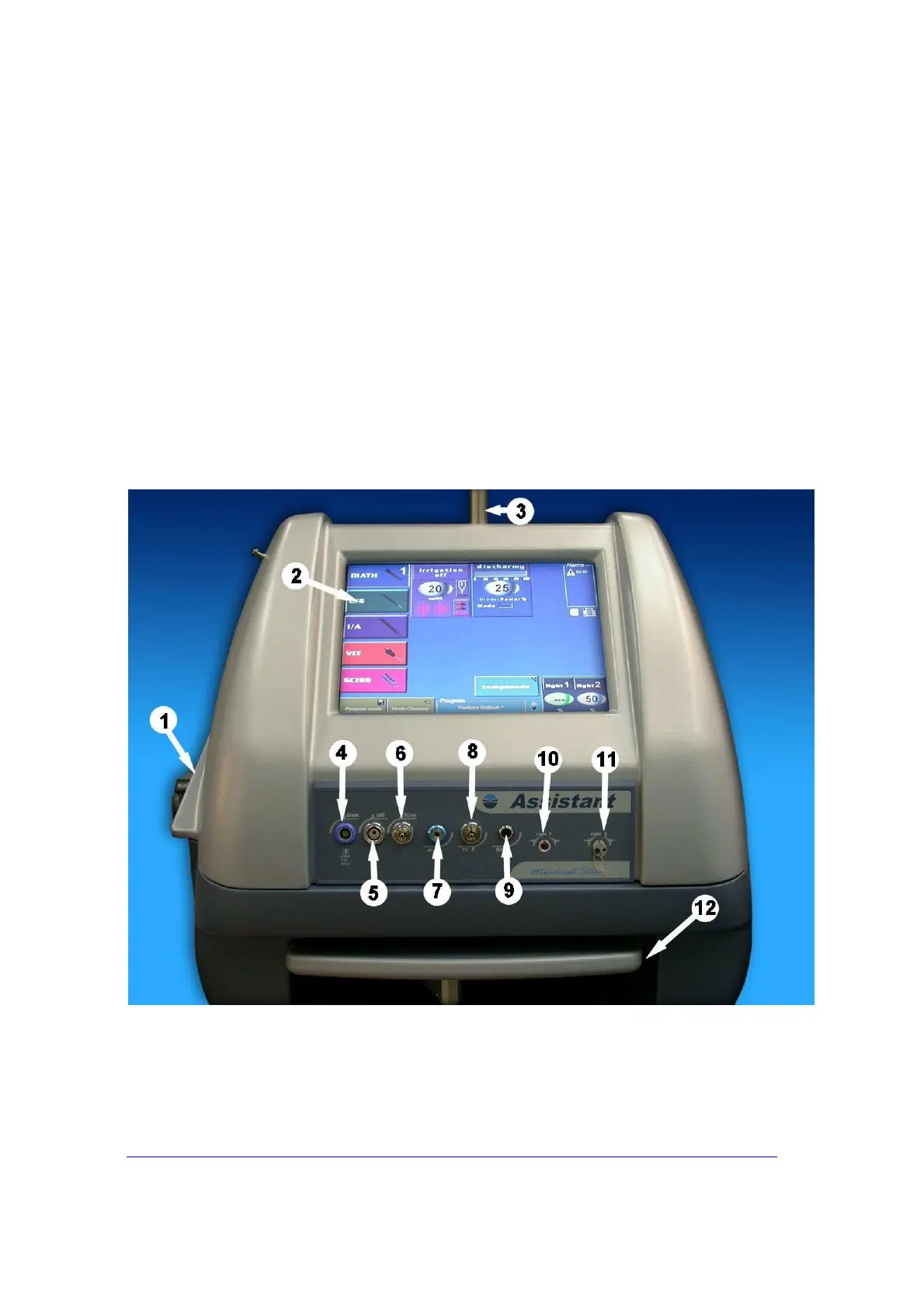

Fig.1 – Front view
