OPTIKON ASSISTANT - Internal View and Component Identification; Internal Pneumatic Components and Valves

Assistant Service Manual
OPTIKON 2000
Code 121008S 5-1 2009-07-24 Rev. C
5. INTERNAL VIEW
3
1
2
4
5
6
7
8
10
11
12
13

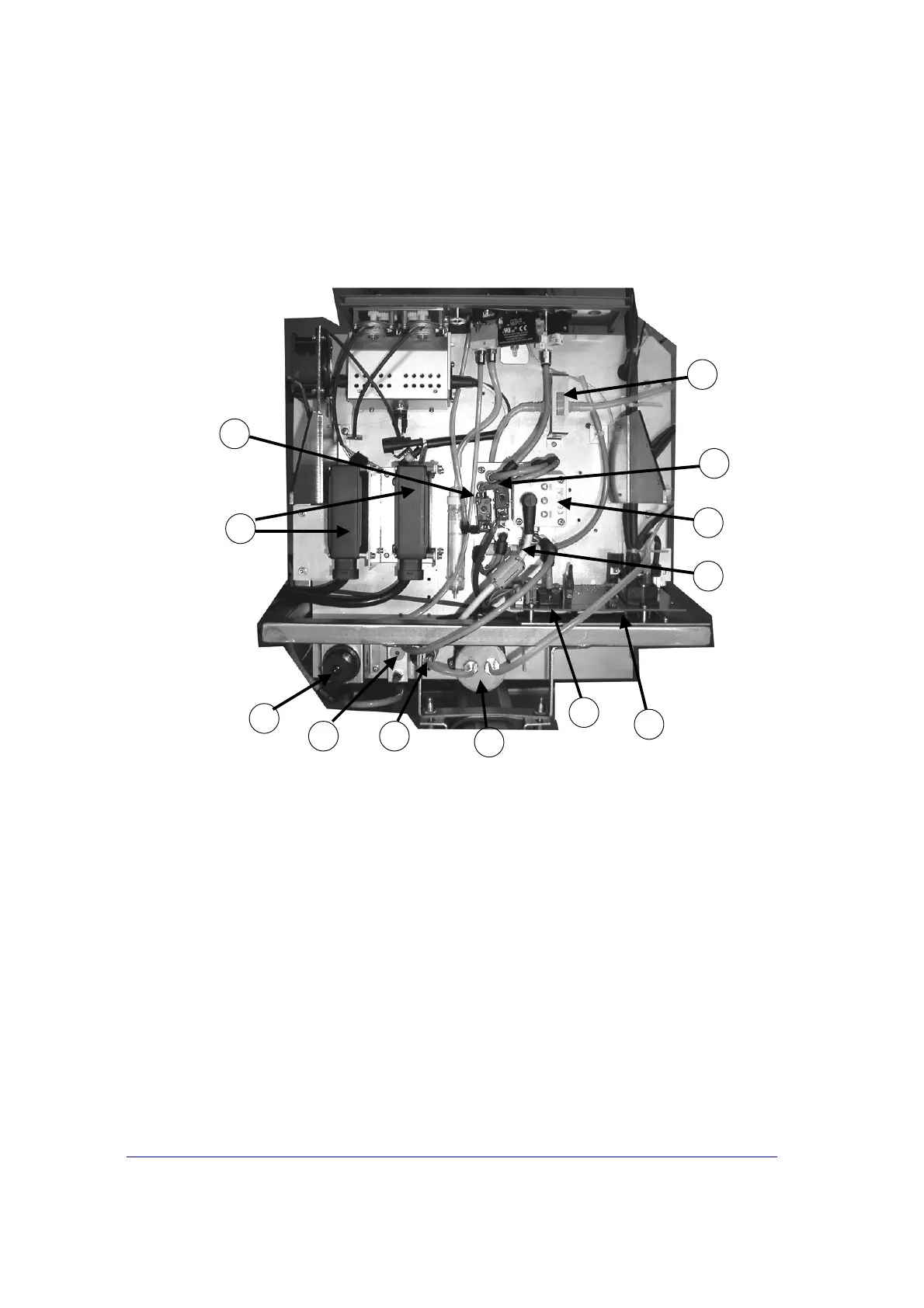

Fig. 4: Internal view, pneumatics
1 ) SENSORS BOARD ( 391120 )
This board hosts the pressure sensor monitoring input pressure, the
electronics and the pressure sensor for the low pressure air tamponade
system.
2 ) STOP VALVE OF THE VENTURI PUMP
This valve allows delivering air from the proportional valve to the aspiration
Venturi pump.
