Assistant Service Manual
OPTIKON 2000
Code 121008S 4-4 Rev. D
4.1.3 REAR PANEL

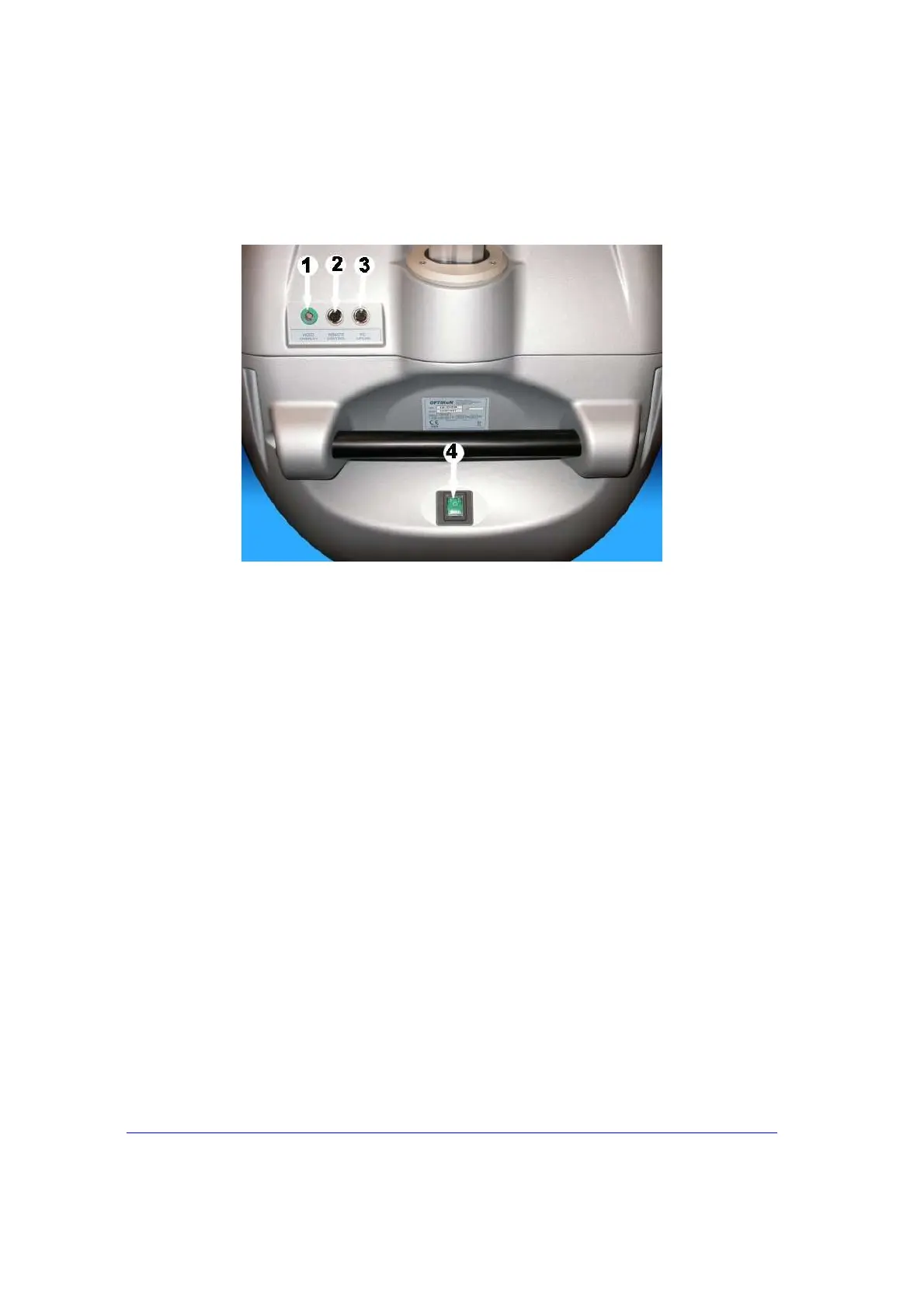

Fig. 3a – Rear panel (top)
1) CONNECTOR FOR VIDEO OVERLAY
This connector makes it possible the connection to the "Eclipse" Video Overlay
device, which allows you to superimpose the main parameters on the video shot
during surgery.
2) REMOTE CONTROL
This is the remote control connector (for future use).
3) PC UPLINK
This is the ASSISTANT-PC interface for data download/upload and software
upgrade
4) POWER (ON/OFF MAINS SWITCH ASSEMBLY)
The power switch is used to switch on/off the unit.
