Assistant Service Manual
OPTIKON 2000
Code 121008S 5-3 Rev. D
13) LAMP BALLASTS
These modules are designed to generate the high voltage for lamp ignition
and a constant current low voltage for lamp power supply

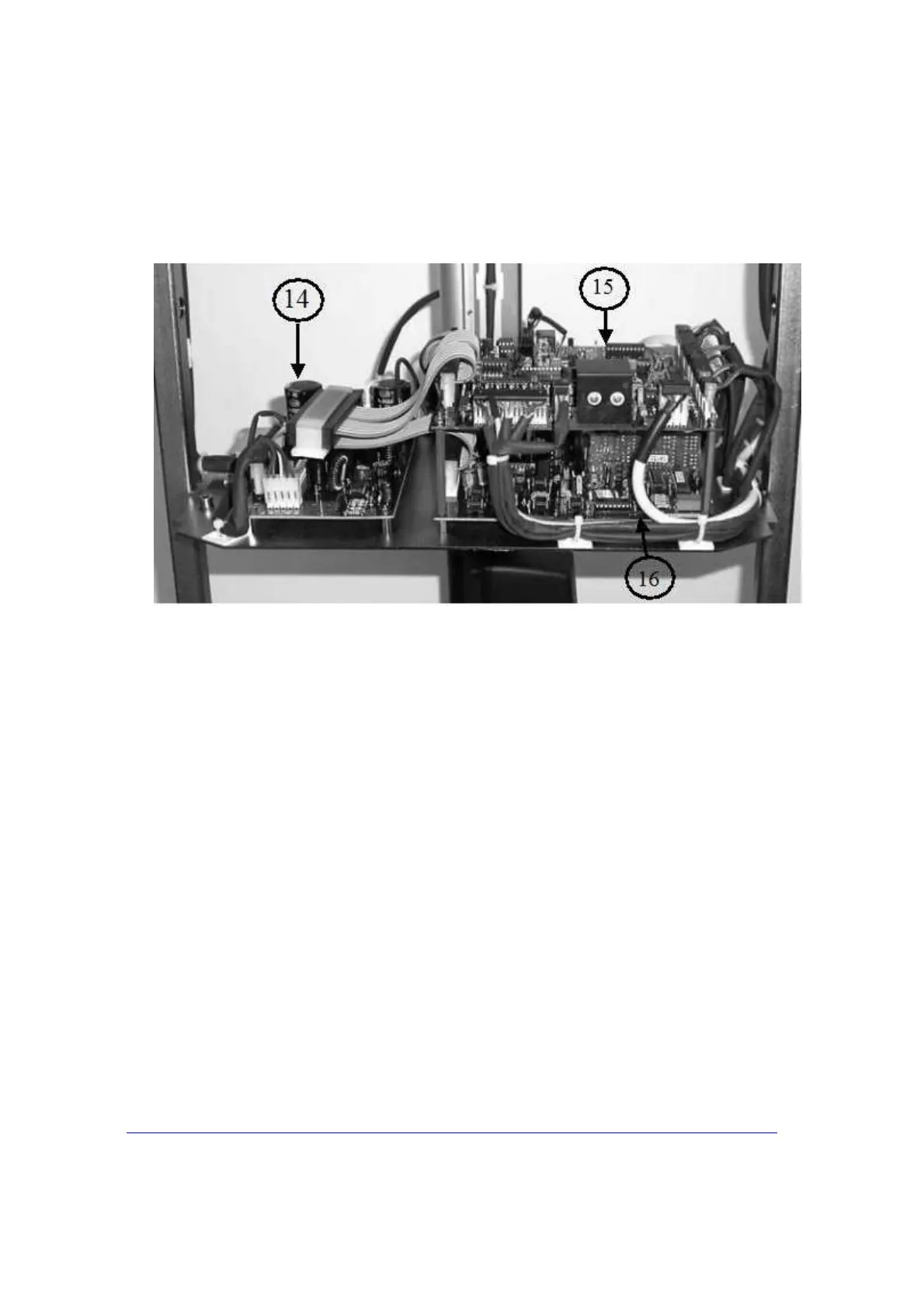

Fig. 4a: Internal view, boards location
14) ASSISTANT POWER SUPPLY BOARD (393130)
This board generates all the AC and DC voltages needed by the Assistant to
operate.
15) ASSISTANT CONTROL BOARD (393200)
This board controls all the surgical functions of the Assistant system and it
interfaces with the system footswitch and the GUI.
16) U/S AND DIATHERMY DRIVER (347888)
This board contains the logics and the power electronics for the U/S and
Diathermy generators.
