5.6.2 Speed table horizontal milling
Use an open-end wrench in order to be able to open the cover.

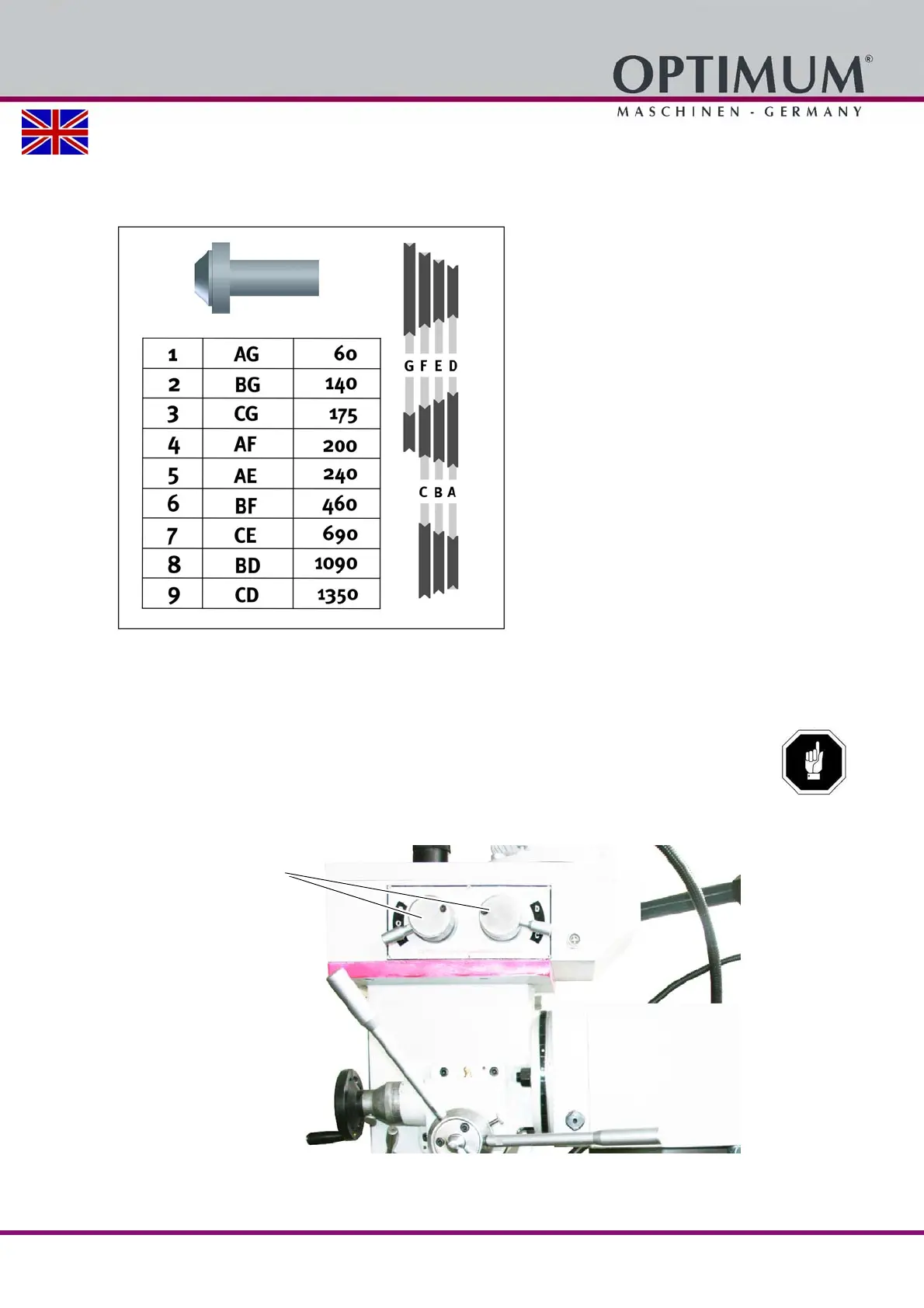

Img.5-4: Speed table horizontal milling ~ 50Hz connection
5.6.3 Vertical milling
ATTENTION!
Wait until the milling machine has come to a complete halt before changing the speed
using the gear switch.
On the drilling-milling head there are two levers to switch over the gear to the desired spindle
speed. The speeds indicated in the table are resulting from the electrical speed switch-over
("High Speed" resp. "Low Speed").
Img.5-5: MT50 view from the right
Engine
Spindle
Selector switch
gear stage
