Version 1.2.8 - 2020-08-0352 Translation of original operating manual
MT50
GB
MT50_GB_5.fm
as required
Dovetail guides
Readjusting
 Readjust the guides by means of the corresponding V-
ledge.
 If necessary disassemble the wipers in order to attain the
readjusting screws of the corresponding V-ledges.
 Turn the readjusting screw clockwise using a screw-
driver until it is only possible to to move the guideway
only slightly by means of the handwheel

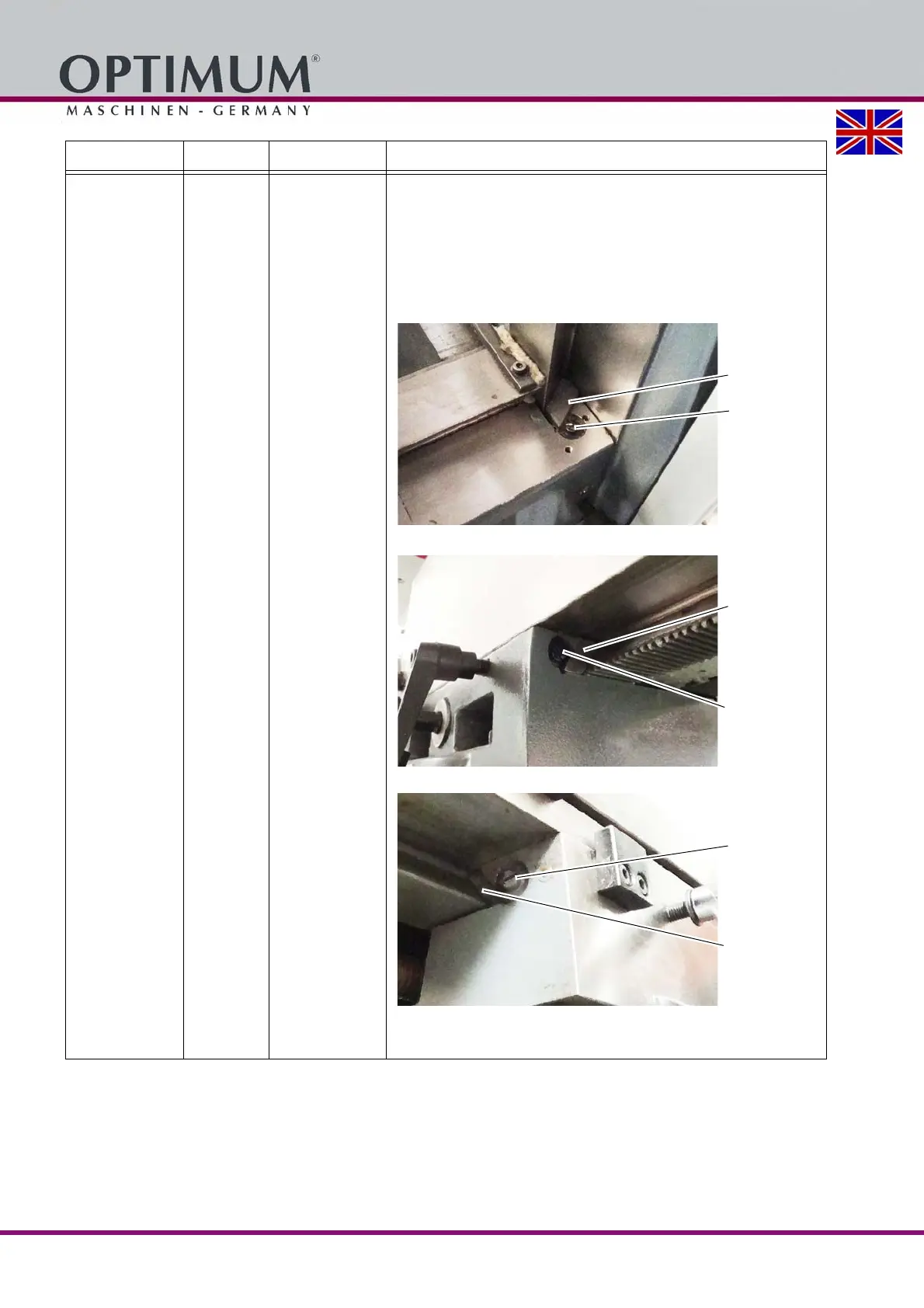

Img.6-9: V-ledge Z axis
Img.6-10: Spindle head-holder
Img.6-11: V-ledge Y-axis
Interval Where? What? How?
V-ledge
Take-up screw
V-ledge
Take-up screw
Take-up screw
V-ledge
