DV11 / DVD100 / U2 / U3
6-3
6-4 EDID Key-In Procedure
2. Choose model
a. in the port selection bar, please choose
the port that you use. ie: if you use
selection.
c. Select VGA in write source

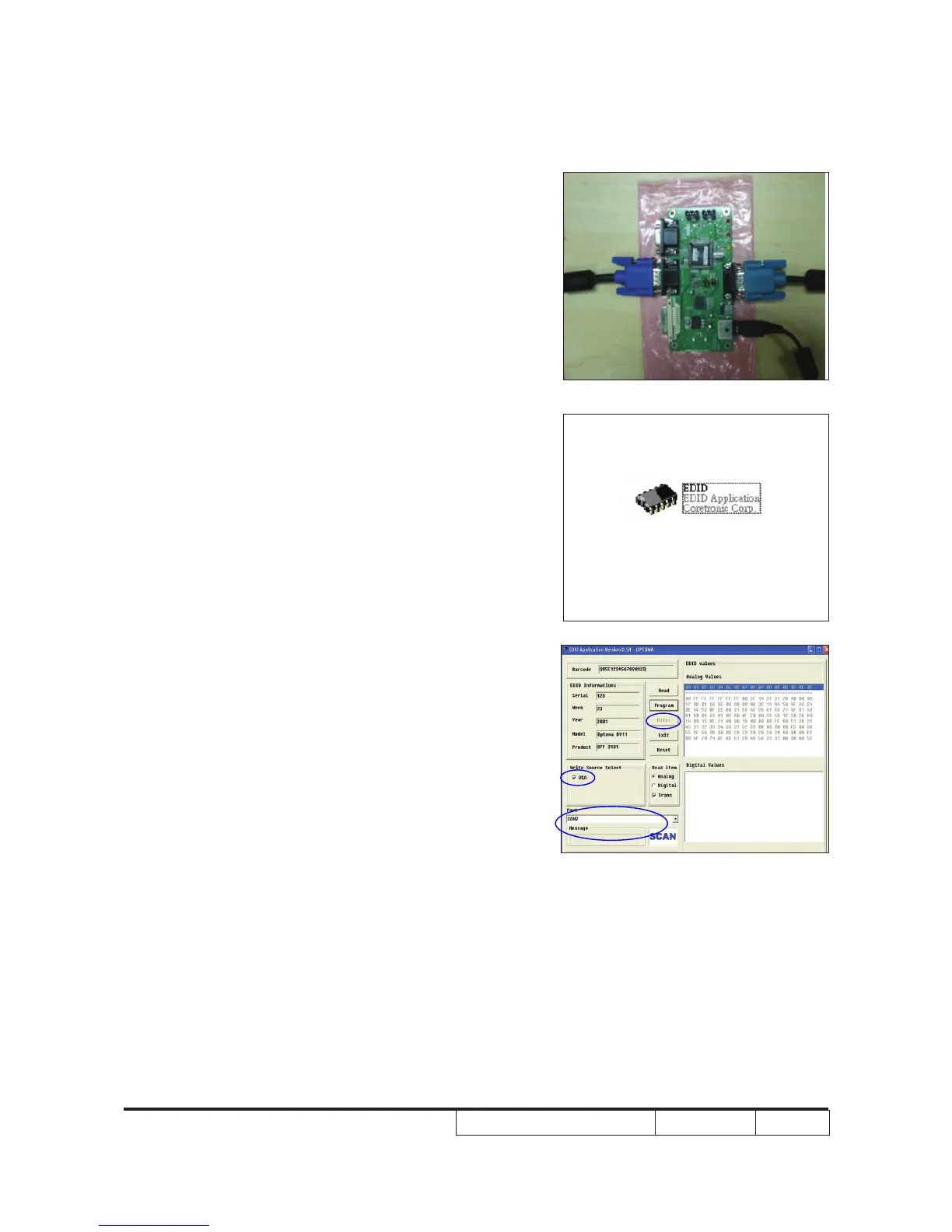

6-3 Setup Procedure
1. Connect all ports
- Fixture P1 to PC COM1 Port
- Fixture P2 to Projector analog port
a
b
c
To Analog Port
RS232 Cable
P2
P1
Adapter
To Next Page
