EX765/EW766/EX765W/EW766W
Condential
2-10
2-6
Disassemble LAN Board
Module(only for EX765/
EW766)

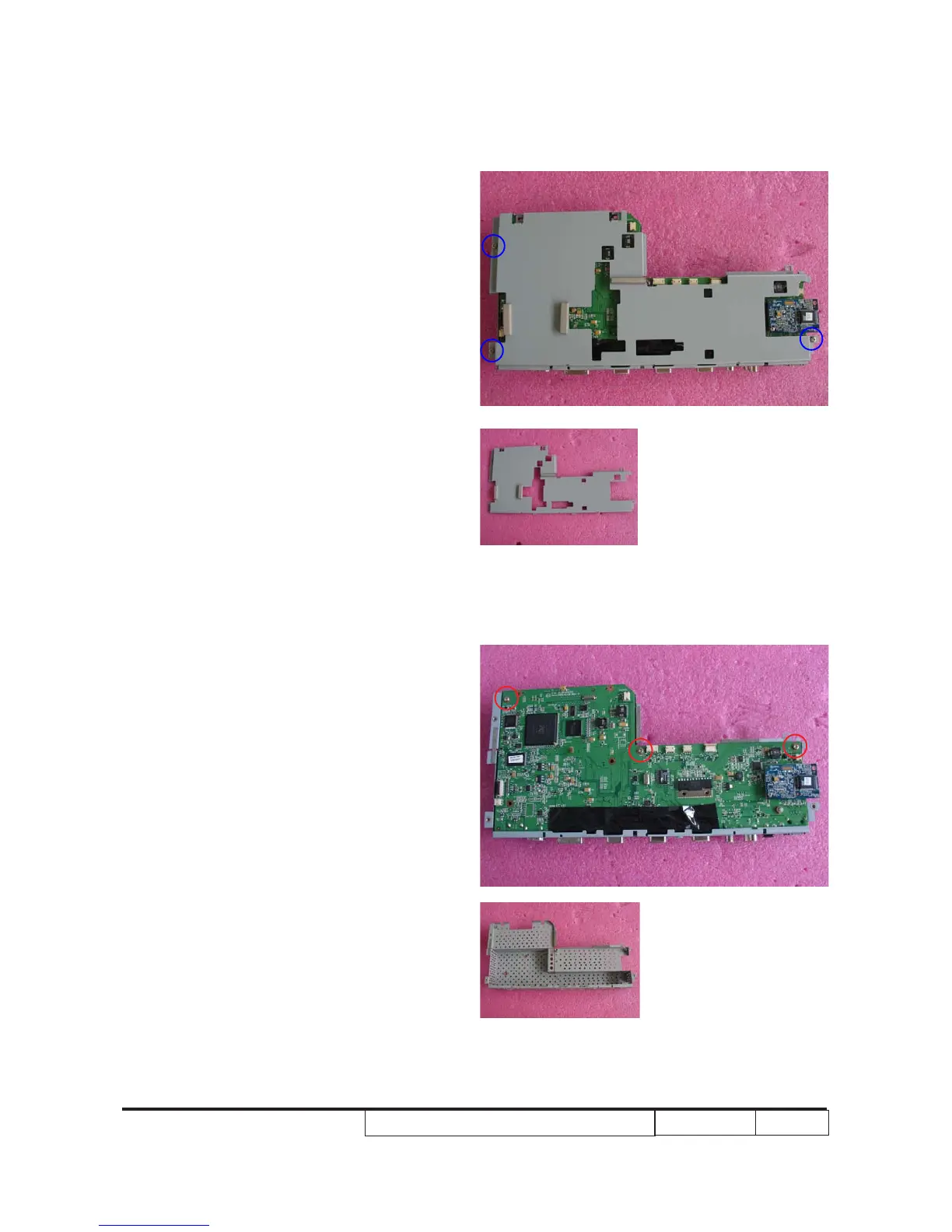

1. Unscrew 3 screws (as blue circle) to
remove main board top s�ielding.
2. Unscrew 3 screws (as red circle) to
remove main board bottom s�ielding.
18
20
