Optoma Projectors - Connect to Video Sources

13
English
Installation
12V OUT
RS232
R G B H V
S-VIDEO VIDEO Y Pb Pr
HDMI 2 HDMI 1
VGA-OUT
VGA 2-IN VGA 1-IN
WIRED
REMOTE-IN
SOURCE
INFO.
MENU
SHUTTER
ENTER
RE-SYNC LENS
FOCUS
ZOOM
E62405SP
R

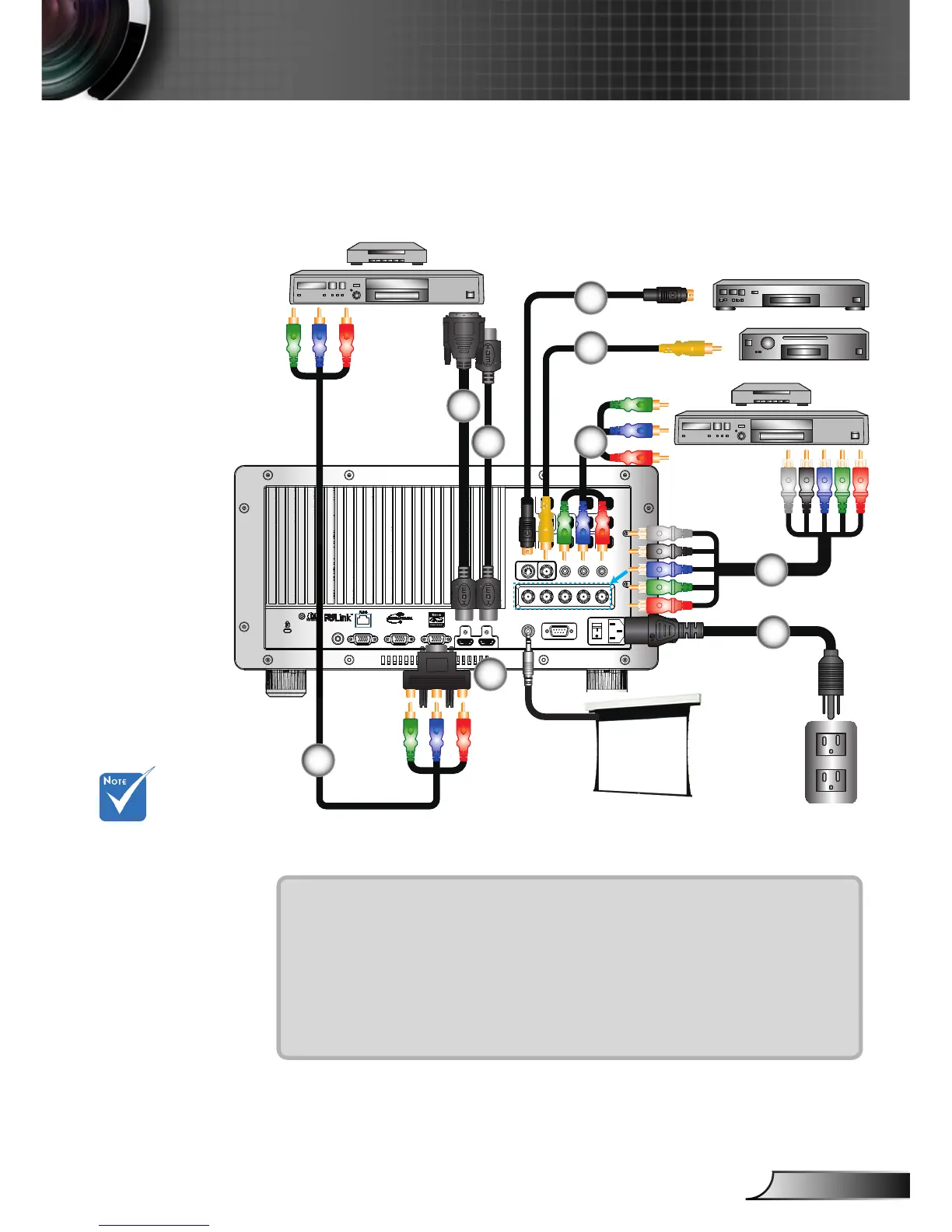

Connect to Video Sources
1....................................................................................................Power Cord
2................................................................................................... *BNC Cable
3.............................................................................*3 RCA Component Cable
4................................................................................*Composite Video Cable
5.............................................................................................. *S-Video Cable
6..................................................................................................*HDMI Cable
7............................................................................................ DVI/HDMI Cable
8................................................*15-Pin to 3 RCA Component/HDTV Adaptor
Composite Video Output
DVD Player, Set-top Box,
HDTV receiver
S-Video Output
1
3
2
4
Due to the
difference in
applications
for each
country, some
regions may
have different
accessories.
(*) Optional
accessory
5
6
+12V Output
3
8
7
