optris CTlaser LT - Pin Assignment of Connector Plug (Connector Version Only)

-58 -

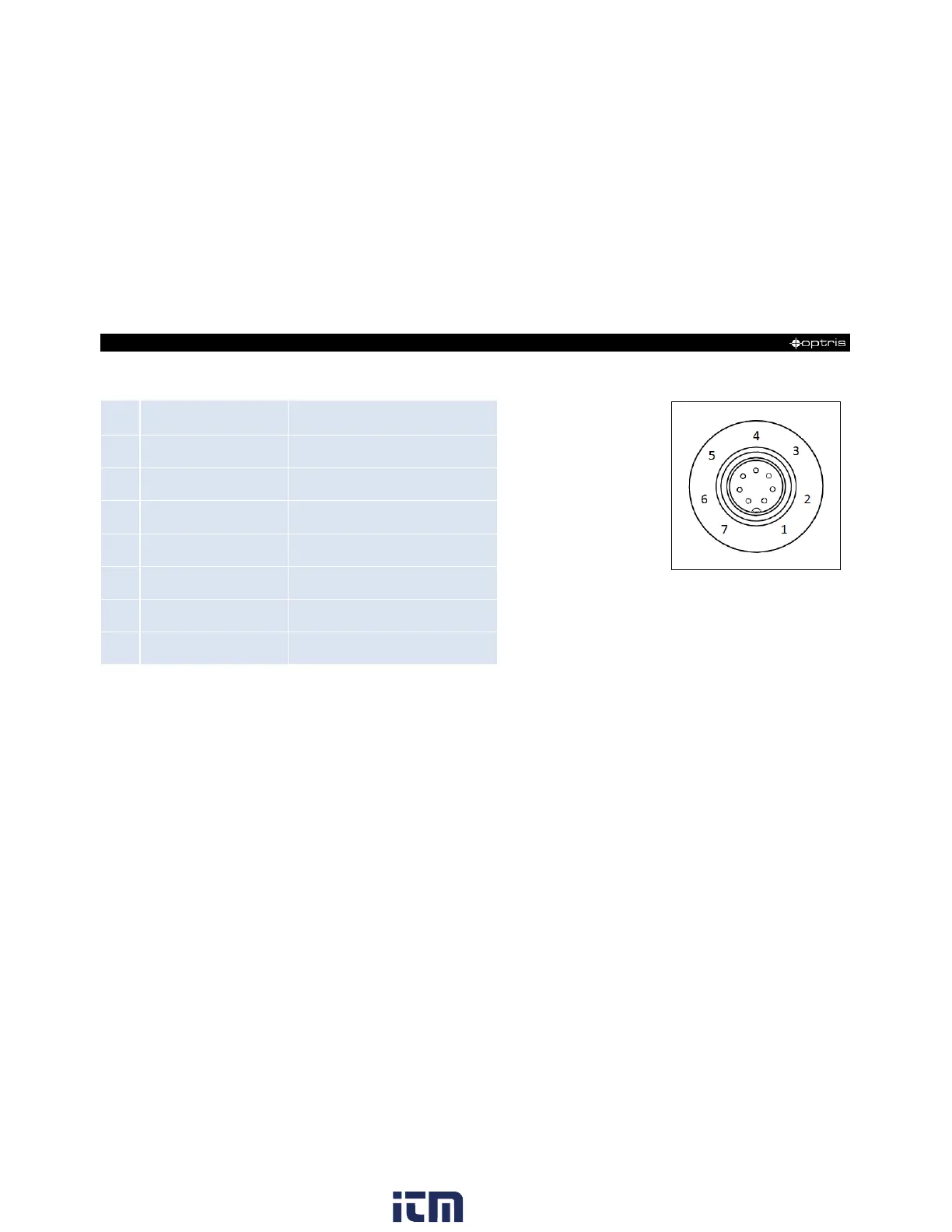

4.1.3 Pin assignment of connector plug (connector version only)
PIN
Designation
Wire color (original sensor cable)
Figure 13: Connector plug
(exterior view)
1
Detector signal (+)
Yellow
2
Temperature probe head
Brown
3
Temperature probe head
White
4
Detector signal (–)
Green
5
Ground Laser (–)
Grey
6
Power supply Laser (+)
Pink
7
--
Not used
