4.1.5 Designation [models 05M/ 1M/ 2M/ 3M]
+8…36 VDC
Power supply

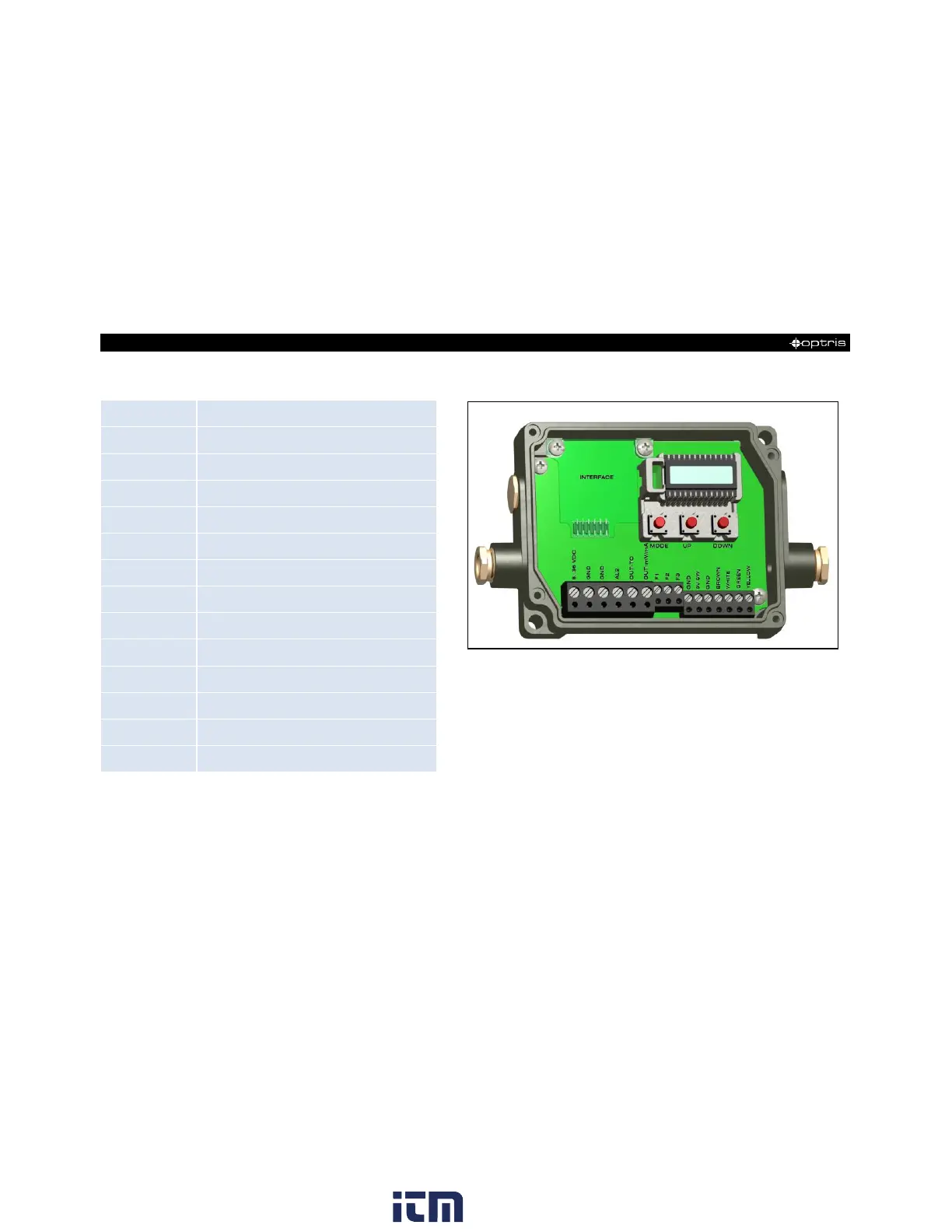

Figure 15: Opened electronic box (05M/ 1M/ 2M/ 3M) with
terminal connections
GND
Ground (0 V) of power supply
GND
Ground (0 V) of internal in- and outputs
AL2
Alarm 2 (Open collector output)
OUT-TC
Analog output thermocouple (J or K)
OUT-mV/mA
Analog output object temperature (mV or mA)
F1-F3
Functional inputs
GND
Ground (0 V)
3V SW
PINK/ Power supply Laser (+)
GND
GREY/ Ground Laser (–)
BROWN
Temperature probe head
WHITE
Temperature probe head
GREEN
Detector signal (–)
YELLOW
Detector signal (+)
