optris CTlaser LT - Open Collector Output; AL2

-78 -

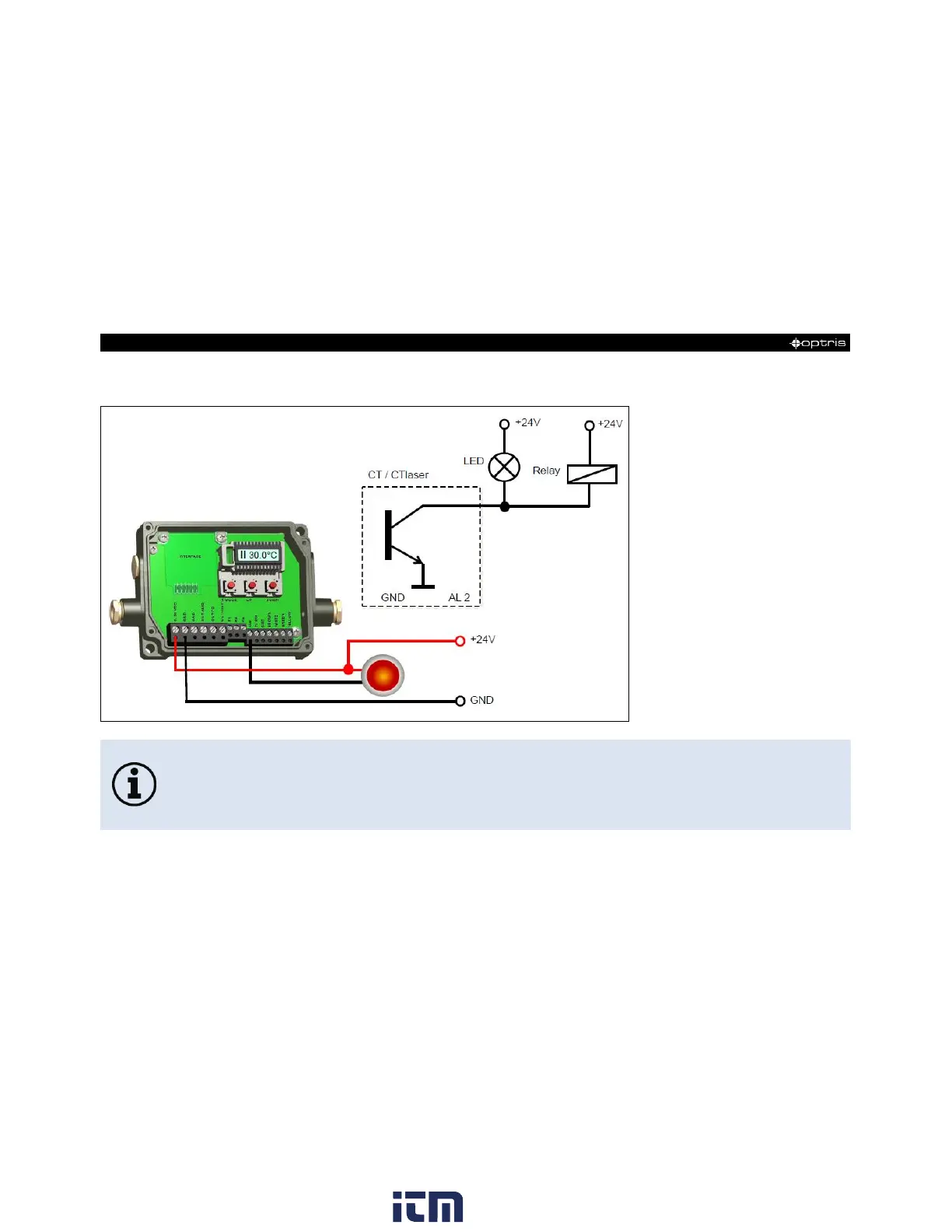

4.7.7 Open collector output / AL2
• The transistor acts as a switch. In case of alarm, the contact is closed.
• A load/consumer (Relay, LED or a resistor) must always be connected.
• The alarm voltage (here 24V) must not be connected directly to the alarm output (short
circuit).
