optris CTlaser LT - Designation [Models LT; LTF; MT; F2; F6; G5; G7; P7]

Electrical Installation 59-
4.1.4 Designation [models LT/ LTF/ MT/ F2/ F6/ G5/ G7/ P7]
+8...36 VDC
Power supply

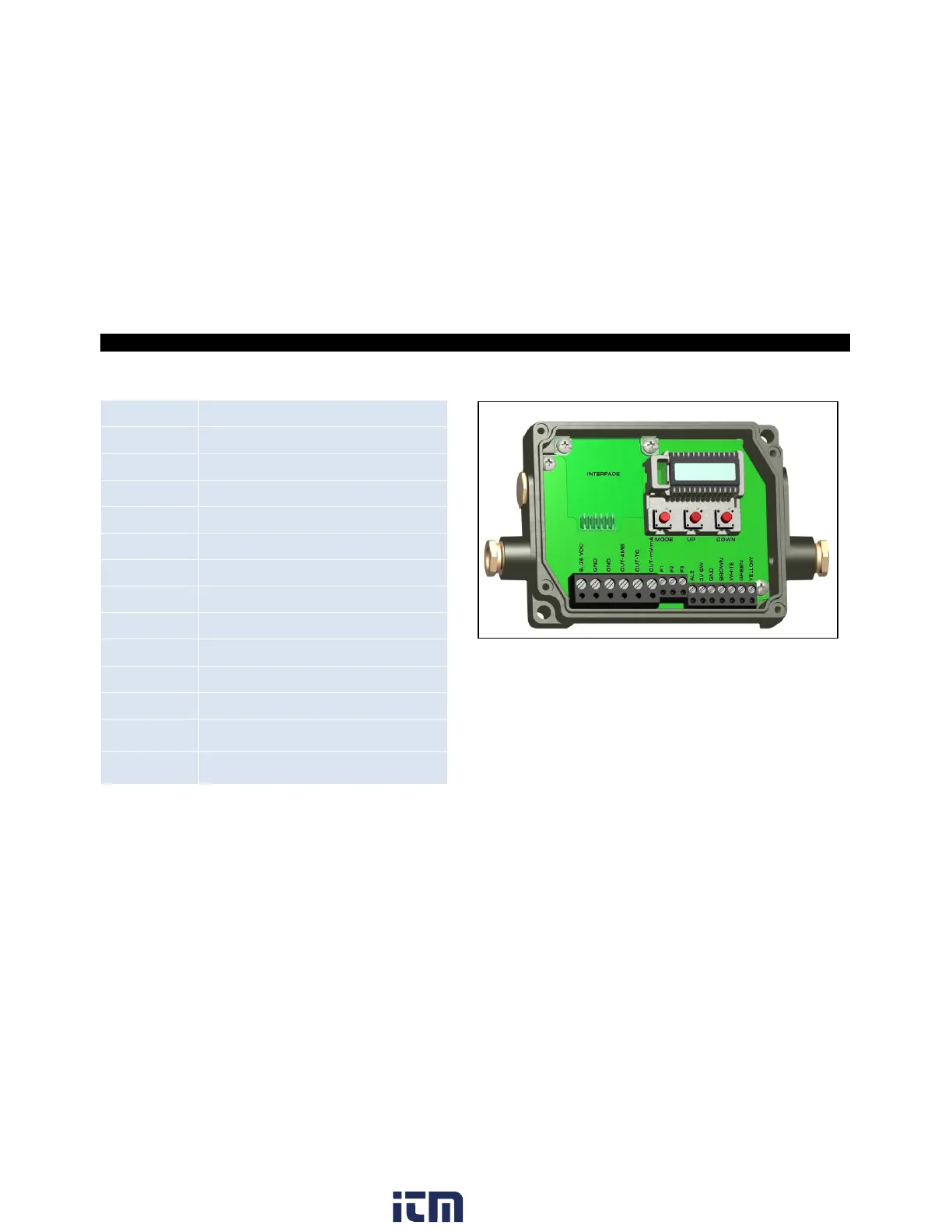

Figure 14: Opened electronic box
(LT/ LTF/ MT/ F2/ F6/ G5/ G7/ P7) with terminal
connections
GND
Ground (0 V) of power supply
GND
Ground (0 V) of internal in- and outputs
OUT-AMB
Analog output head temperature (mV)
OUT-TC
Analog output thermocouple (J or K)
OUT-mV/mA
Analog output object temperature (mV or mA)
F1-F3
Functional inputs
AL2
Alarm 2 (Open collector output)
3V SW
PINK/ Power supply Laser (+)
GND
GREY/ Ground Laser (–)
BROWN
Temperature probe head
WHITE
Temperature probe head
GREEN
Detector signal (–)
YELLOW
Detector signal (+)
