optris CTlaser LT - Page 62

Electrical Installation 63-
3. Spread the strands and fix the shield between two of the metal washers.
4. Insert the cable into the cable gland until the limit stop and screw the cap tight. Every single wire may
be connected to the according screw clamps according to their colors.

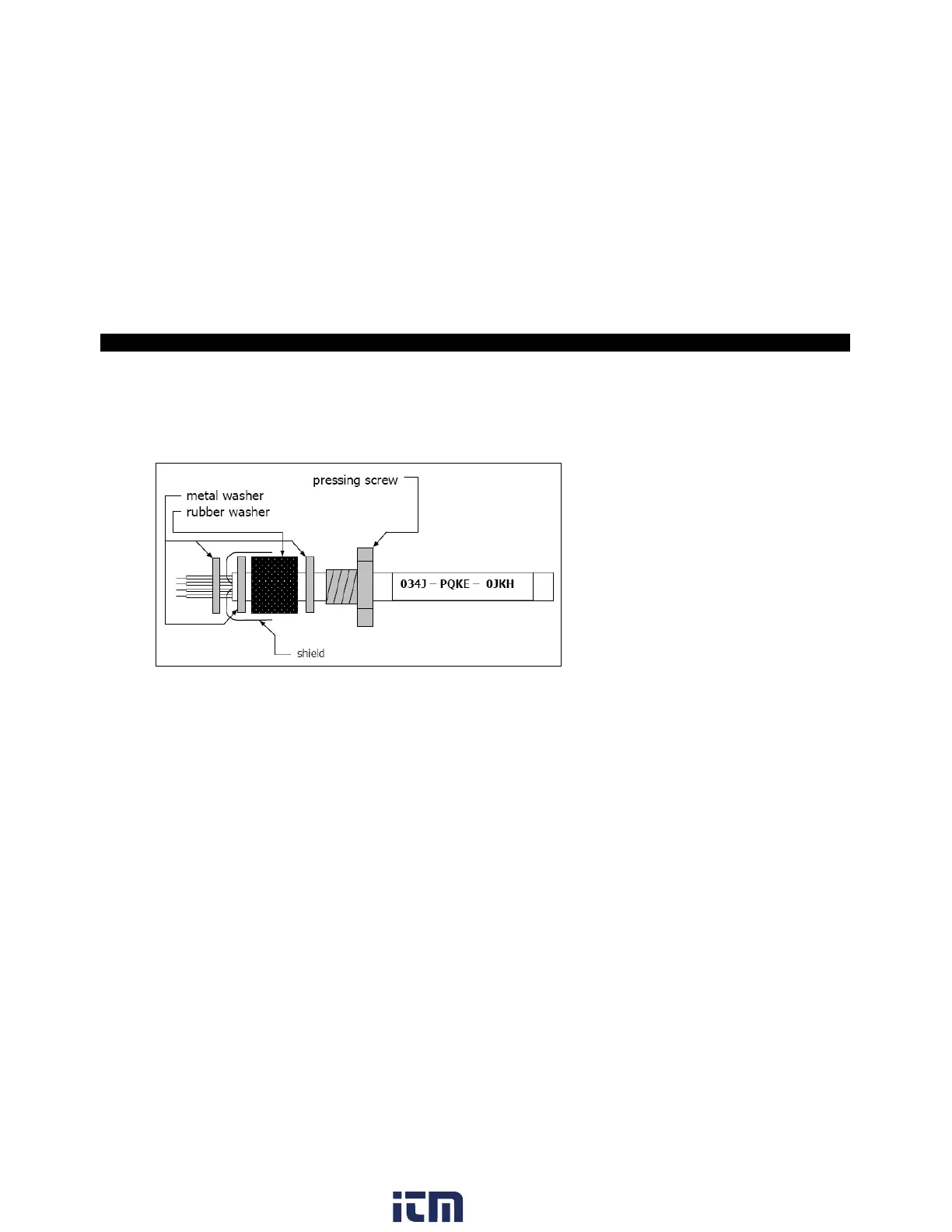

Figure 17: Cable assembling
